TENAX 10-20W CCT Emergency LED Gear Tray With Daylight Sensor

£3899
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Only a few left in stock!
Flexible payment options

Shop now. Pay with

Knightsbridge's latest innovation is the wattage and colour-adjustable LED gear trays. It reduces complexity by combining triple wattage and colour adjustments into a single gear tray. Secured to the casing* via four butterfly clips paired with the push-fit terminal block, ensures a speedy installation. The gear trays are compatible with the Tenax One and Tenax Quad range of casings.

*Casing is not included and must be purchased separately.

  • Integral natural daylight sensor for exterior use only
  • 3000K/ 4000K/ 5700K adjustable
  • 10W/ 15W/ 20W adjustable
  • Push-fit terminals with loop-in-loop-out capabilities
  • Options available: standard, emergency, self-test emergency, microwave sensor, emergency with a microwave sensor, self-test emergency with a microwave sensor
Length 233 mm
Height 233 mm
Construction Aluminium
Class II
IP Rating IP20
Primary Voltage 230V 50Hz
Emergency Maintained / Non-maintained (not Switched)
Lamp Technology SMD LED
Dimmable No
L70B50 40000
Energy Rating (Class) post 2021 SLR D
CCT 3000/4000/5700 K
Light Colour CCT
Lumens 1360/1480/1405, 1905/2090/1960, 2345/2630/2415 lm
Lumens (Em. mode) 125 lm
Wattage 10/15/20
Efficacy 151/147/141 lm/W
CRI >85
Driver Type Constant Current
Warranty 5

Product Specification Sheet

Product Manual

We offer free shipping within the UK mainland on orders over £99. For orders under £99, a shipping fee of £9.99 applies. Shipping to EU countries and the rest of the world is available upon request - please contact us directly for a bespoke price.

Review our full Shipping Policy

We strive to ensure your satisfaction. If you’re not entirely pleased with your purchase, most unused items can be returned within 14 or 50 days of receipt, depending on the product. Please be aware that shipping fees are non-refundable, and a restocking fee may apply. Our team is always ready to assist with any return inquiries.

Review our full Return Policy

Have a question?
We're here to help
Call Us
Rated 4.5 / 5
Trustpilot Rating
Based on 100 reviews

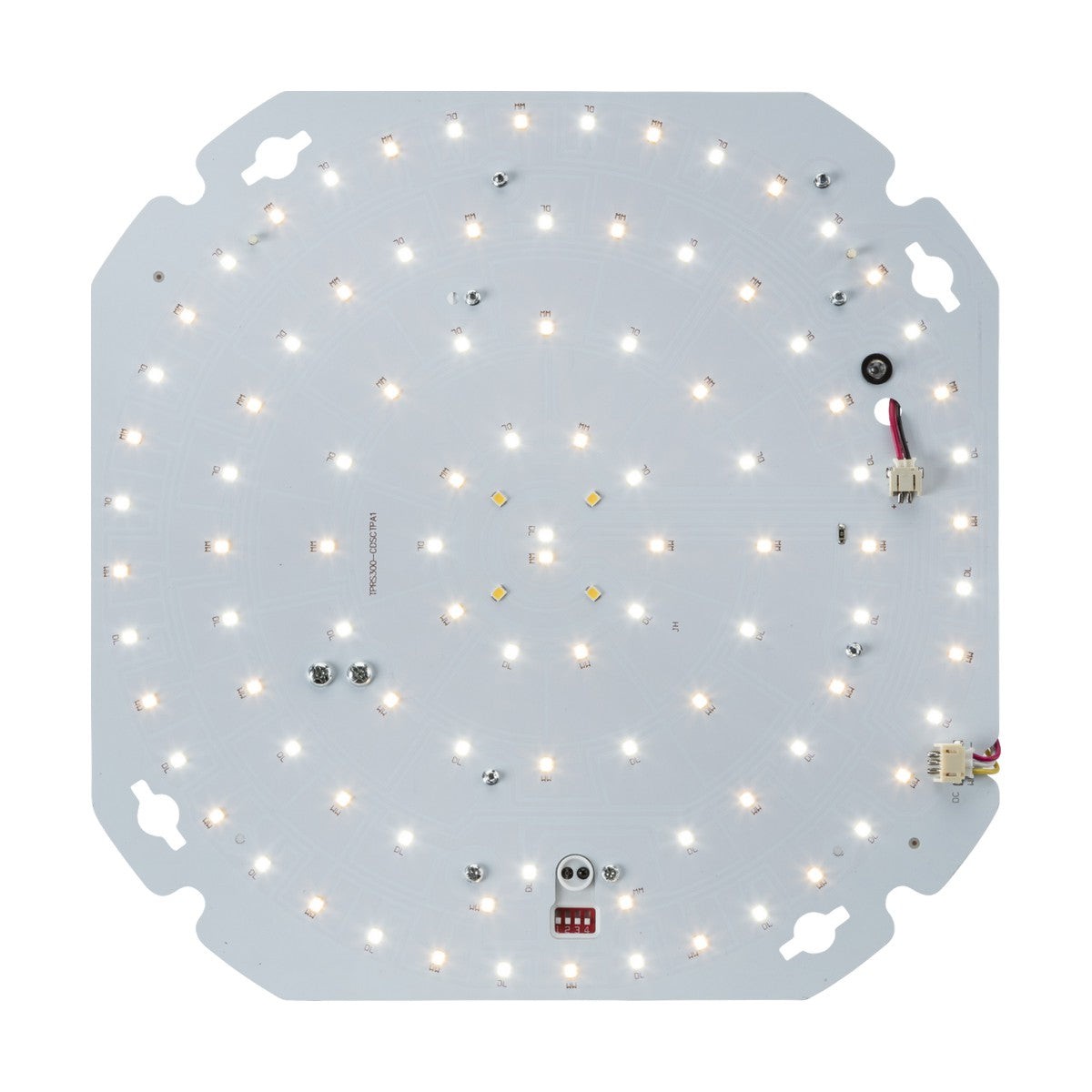

The TENAX 10-20W CCT Emergency LED Gear Tray with Daylight Sensor displays a circular arrangement of small illuminated lights and various electronic components, including connectors and chips, mounted on a white square LED circuit board. This color-adjustable innovation also comes with convenient push-fit terminals for easy installation.
