SpektroLED Evo Dimmable Tilt Fire Rated LED 4-CCT Downlight
- Description
- Specification
- Downloads
New to Knightsbridge, the evolution of SpektroLED - one of the many innovations in our fire-rated downlight portfolio designed with budget in mind and with a passion for choice. SpektroLED Evo IP65 Tilt feature 2 selectable wattages and 4 selectable CCTs, available in 6 finishes (non-changable bezels). The IP65 tilt features a smooth 90 degree tilt, ideal choice for cost and energy efficient lighting installation that demand versatility. The new range of finishes lend themselves perfectly to any type of interior design and the IP65** rating means SpektroLED is suitable for dry and wet locations too.

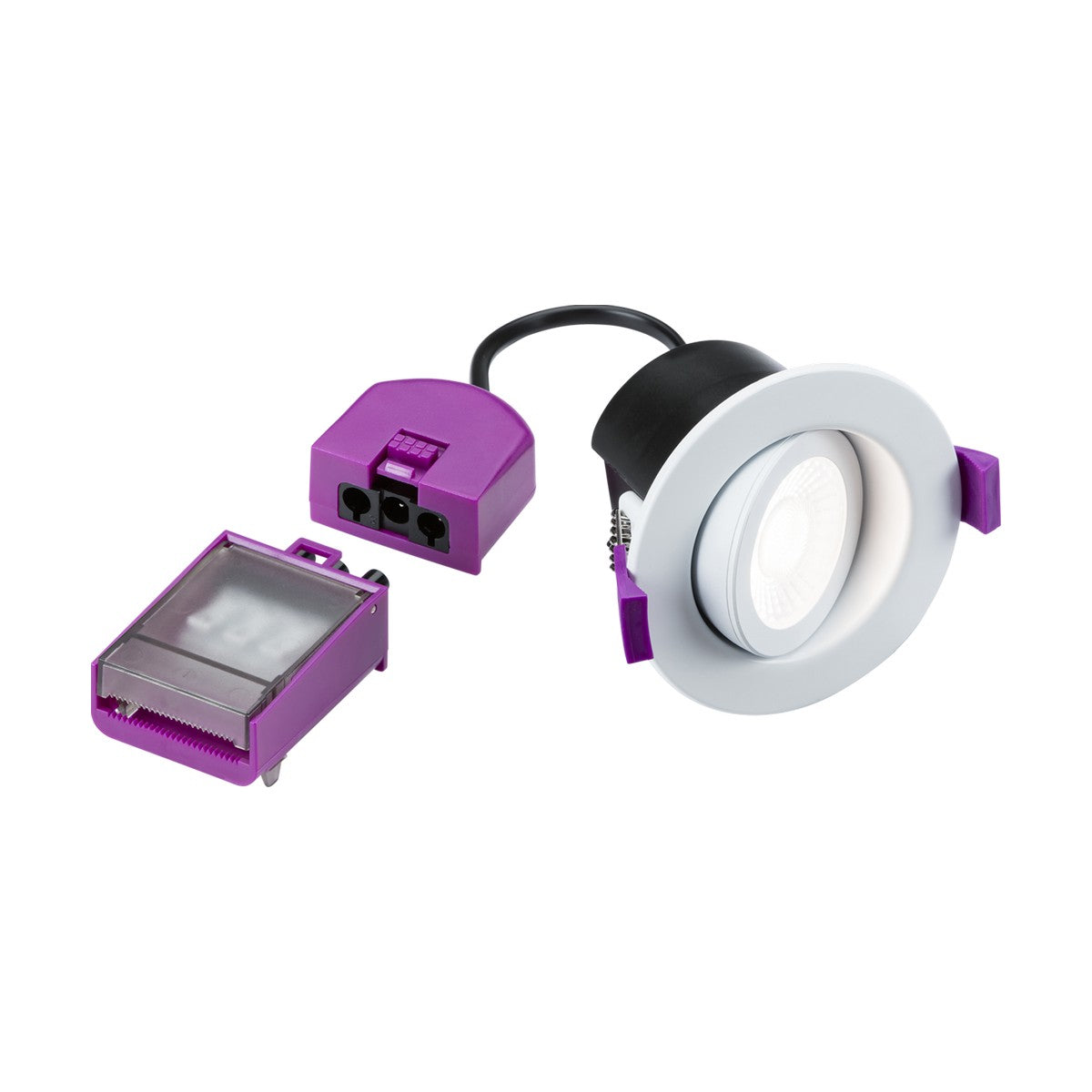

SpektroLED is truly one of the most versatile products on the market, designed with the contractor and end user in mind. The cleverly engineered male and female power connectors mean the cables can be terminated and hidden away until the decoration is finished with the downlight simply plugged in and installed after. The same connector system means the luminaire can be removed for maintenance by simply unplugging.
- 230V direct to fixture with loop in-loop out first and second fix connectors
- Selectable 5W and 7W outputs (to regulate maximum light output) for varying illumination requirements
- Selectable 2700K, 3000K, 4000K, 6000K CCTs
- Complies with the latest energy efficiency standards
- Fire-rated - 30/60/90min solid timber, 30min web joist and 30min i-joist (staircraft)
- IC rated (insulation contact)
- Acoustic rated ISO 10140-2:2010
- 5-year warranty
- Dimmable***
- Extremely low-profile design
- IP65 from the front making it ideal for bathrooms as well as living spaces (also available in fixed)
- Smooth 90 degree tilt to achieve the desired light direction
- Finishes available in white, matt black, brushed chrome, polished chrome, brass and antique brass
** IP65 from below, IP20 from above *** For use with Trailing-edge dimmers - please check compatibility before installation.
Diameter | 90 mm |
Recessed Depth | 56 mm |
Minimum Void | 56 mm |
Cut-out Diameter | 70 mm |
Tilt | 90 degrees |
Construction | Pressed steel |
Finish | White |
Class | II |
IP Rating | IP65 (IP20 from above) |
Primary Voltage | 230V 50Hz |
Diffuser | Prismatic |
Lamp Technology | SMD LED |
Dimmable | Yes* |
L70B10 | 50000 |
Energy Rating (Class) post 2021 SLR | C |
Beam Angle | 60 |
CCT | 2700/3000/4000/6000 K |
Light Colour | CCT |
Lumens | 565/580/605/590/745/865/825/778 lm |
Lumens (Light Source only) | 1000 lm |
Wattage | 45478 |
Efficacy | 142 lm/W |
CRI | >80 |
Warranty | 5 |
