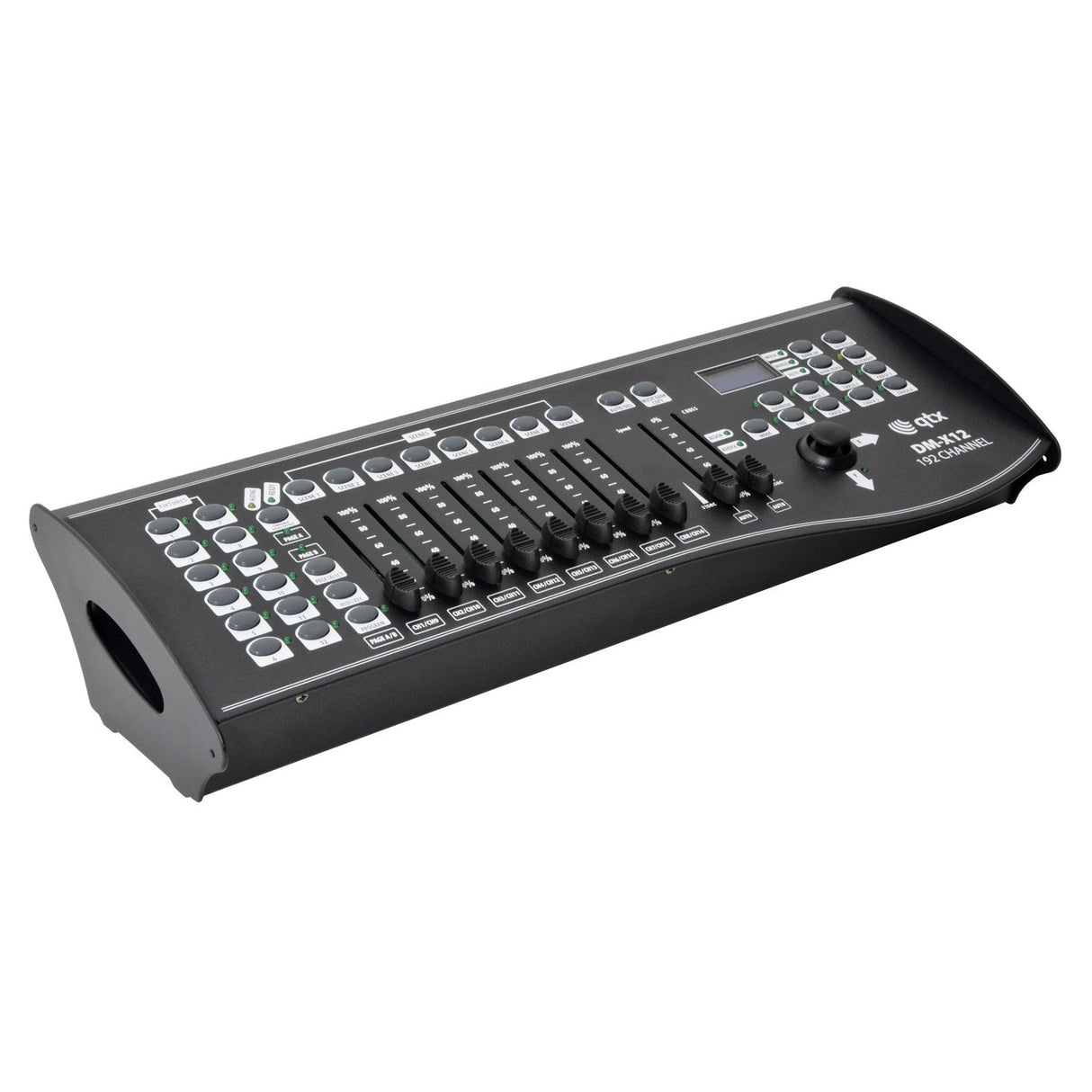

QTX DM-X12 192 Channel DMX Lighting Controller With Joystick

This 192 channel DMX controller has a joystick which can be programmed to control certain channels. This is then an ideal tool to fine tune the pan and tilt movements on a moving head or scanner. It comes complete with an LED gooseneck light that can be plugged in to the rear and help in dark environments. The unit itself has 12 scanner buttons, each controls up to 16 channels on each fixture, whilst the 30 programmable bank buttons hold 8 scenes each. These scenes can be programmed into 6 chase sequences each holding up to 240 scenes which can be triggered by sound, manually by tap or automatically by the time faders between 0.1 seconds and 10 minutes. This controller is ideal for small theatres or stage applications.

• 12 scanners each with 16 channels
• 30 banks each with 8 programmable scenes (240 scenes in total)
• 8 channel slider with page up and page down
• 6 chase banks
• Music, auto or manually triggered chase sequences
• Built-in microphone or LINE IN RCA jack socket for accurate audio triggering
• LED gooseneck lamp provided
• Speed control from 0.1 second to 10 minutes
• MIDI connection facility (MIDI IN) to run the unit synchronous with your MIDI unit or compatible software
• Blackout button
• DMX polarity switch at the rear
• File dump allows data to be sent or received between two units
• Joystick to control X & Y parameters of a moving head / scanner
• High quality LCD display with easy readout
• Power failure memory
