NU-X Trident Amp Simulator & Multi-Fx Pedal

£32099
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Trident is the flagship integrated effects and amplifier simulation pedal from NU-X, built into a one-piece die-cast aluminium pedal housing to withstand the rigours of the stage and road. Using the new proprietary TSAC-4K physical modelling algorithm, with separate dedicated DSP engines for effects and amp simulation, the Trident employs premium AD/DA conversion hardware for accurate sound reproduction with minimal noise levels. Each of the 27 amplifier models faithfully emulates its real world counterpart with authentic features and functions, such as high/low inputs, cable jumping and toggle switch settings. Add to these 27 cabinet simulations and 4 microphone models and you have a wide palette of classic backline to conjure with. A full compliment of effects including boosters, filters, modulations, delay and reverb are available, with on-the-fly adjustments and foot switching easily from the top-side control panel. Current status and settings are neatly displayed in realtime on the backlit LCD display which is bright and clear for easy viewing on stage. Additional effects can be patched in via the send / return loop, which has serial or parallel modes and can also be used for connecting to an amplifier using the 4-cable method, or as a send-only output using branch mode. Full MIDI implementation is accessed through MIDI in and out for integration with external MIDI and switching gear. For interfacing with a Mac or PC computer, a USB type-C port can be used as a recording interface or for programming the Trident using the free to download Trident™ editing software. Additionial connections on the rear panel include an expression pedal input, 3.5mm auxiliary input, 6.3mm headphone output, 2 x XLR outputs and 2 x 6.3mm outputs to support the many various wiring configurations. Overall, Trident is the complete war machine to launch your sonic attack with.

  • High resolution TSAC-4K physical modelling
  • USB port for PC/Mac editing, audio interface and firmware updates
  • MIDI compatible (5-pin DIN adaptor leads supplied)
  • Trident™ Edit software free to download from www.nuxefx.com/trident.html
  • 30 second phrase looper with pre and post routing
  • Selectable amp & effects block order
  • Heavy duty cast aluminium housing
  • 32 additional IR slots for custom cab simulations
Specification
Power supply 9Vdc, 500mA, pin-negative (mains adaptor included)
Current consumption <330mA
Input impedance 1M Ohm (guitar), 100k Ohm (return jack)
Output impedance 1k Ohm (Out 1, Out 2, Send)
Headphone output 6.3mm stereo (47 Ohm)
Aux Input Impedance 10k Ohm
Dynamic range 109dB
Latency 1ms
Sampling format 48kHz, 32-bit
Inputs Exp pedal, Guitar, Return (6.3mm), Aux input (3.5mm)
Outputs Send, Headphones, Out 1+2 (6.3mm), Out 1+2 XLR
USB port Type-C PC/Mac interface
Dimensions 312 x 164 x 65mm
Weight 1.65kg
Downloads

Product Manual

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

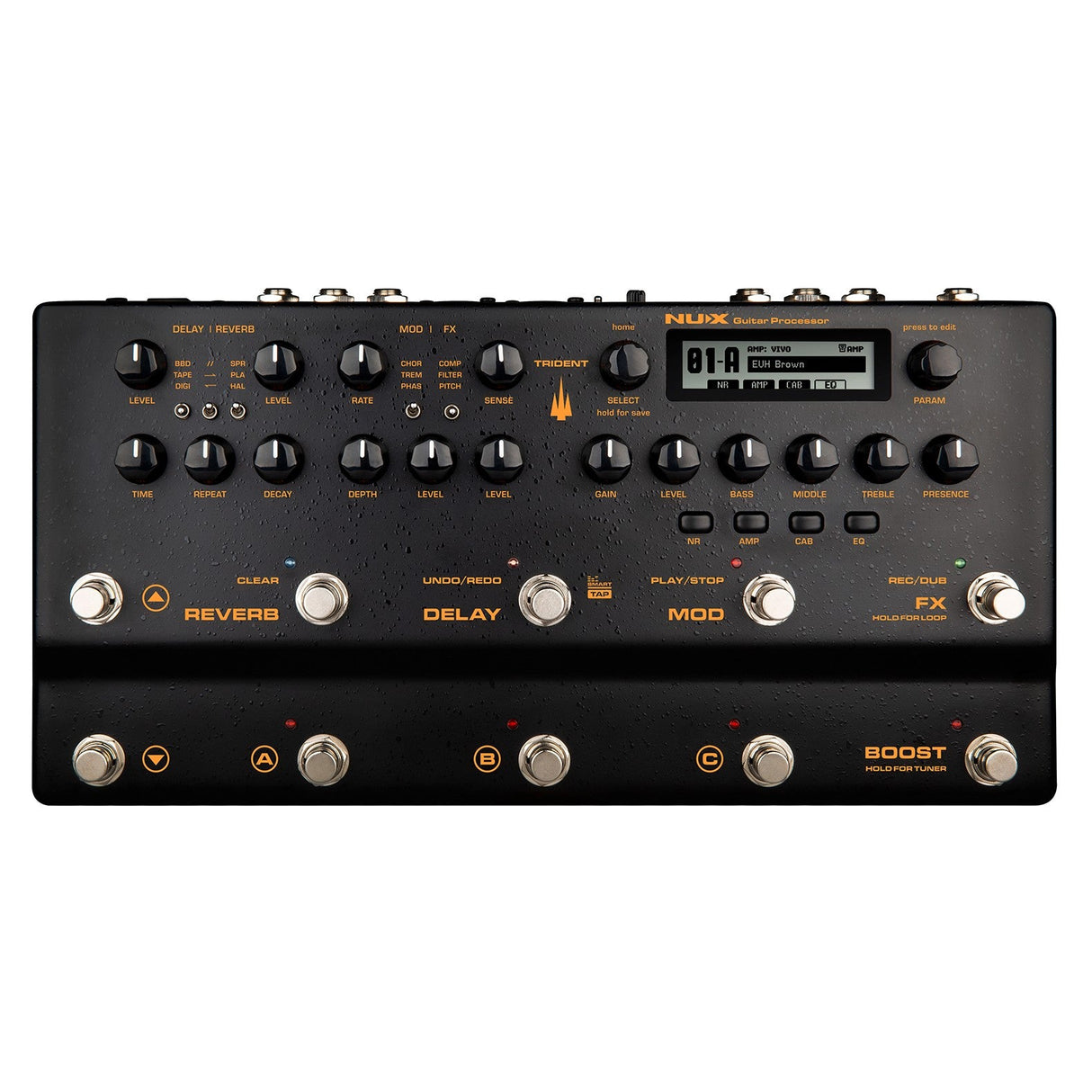

    The NU-X Trident Amp Simulator & Multi-Fx Pedal is an effects powerhouse with multiple knobs and switches for reverb, delay, modulation, and amp simulation. It features a digital display and footswitches to control sound settings. The sleek black unit is adorned with orange and white labeling for easy navigation.
