NU-X Time Core Deluxe Mkii Pedal

£7499
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

Time Core Deluxe mkII is the next generation digital delay pedal from NU-X, with 7 selectable delay types. Simulation of highly revered analog, tape and digital effect pedals with the benefit of up-to-date features such as tap-tempo, kill dry and buffered tail bypass offer a choice of high end delay effects with augmented flexibility. New additions include the proprietary Phi delay, SOS looper and layered reverb. From short slap-back echo to long multi-tap repeats, the Time Core Deluxe mkII covers practically any delay duties required for your pedal board.

  • Full stereo or mono signal path
  • True or buffered bypass options
  • 7 distinct delay types
  • 40 second looper function
  • USB-C port for firmware updates
Specification
Power supply 9Vdc (power adaptor required)
Controls Time, Mix, Repeat, Delay type
Recording mode 40 second sound-on-sound looper
Modes Phi Digital, Analog, Modulation, Tape, Pan, Verb, Reverse delay
Inputs L+R 6.3mm mono jack
Outputs L+R 6.3mm mono jack
DC input connection DC5521 jack (for optional adaptor - pin-negative)
Dimensions 122 x 72 x 47mm
Weight 270g
Sampling format 48kHz, 24-bit
Input impedance 1M ohm
Output impedance 1k ohm
Dynamic range 104dB
Current consumption <120mA
Downloads
Have a question?
We're here to help
Call Us

Our Reviews

From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

Featured Projects

Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

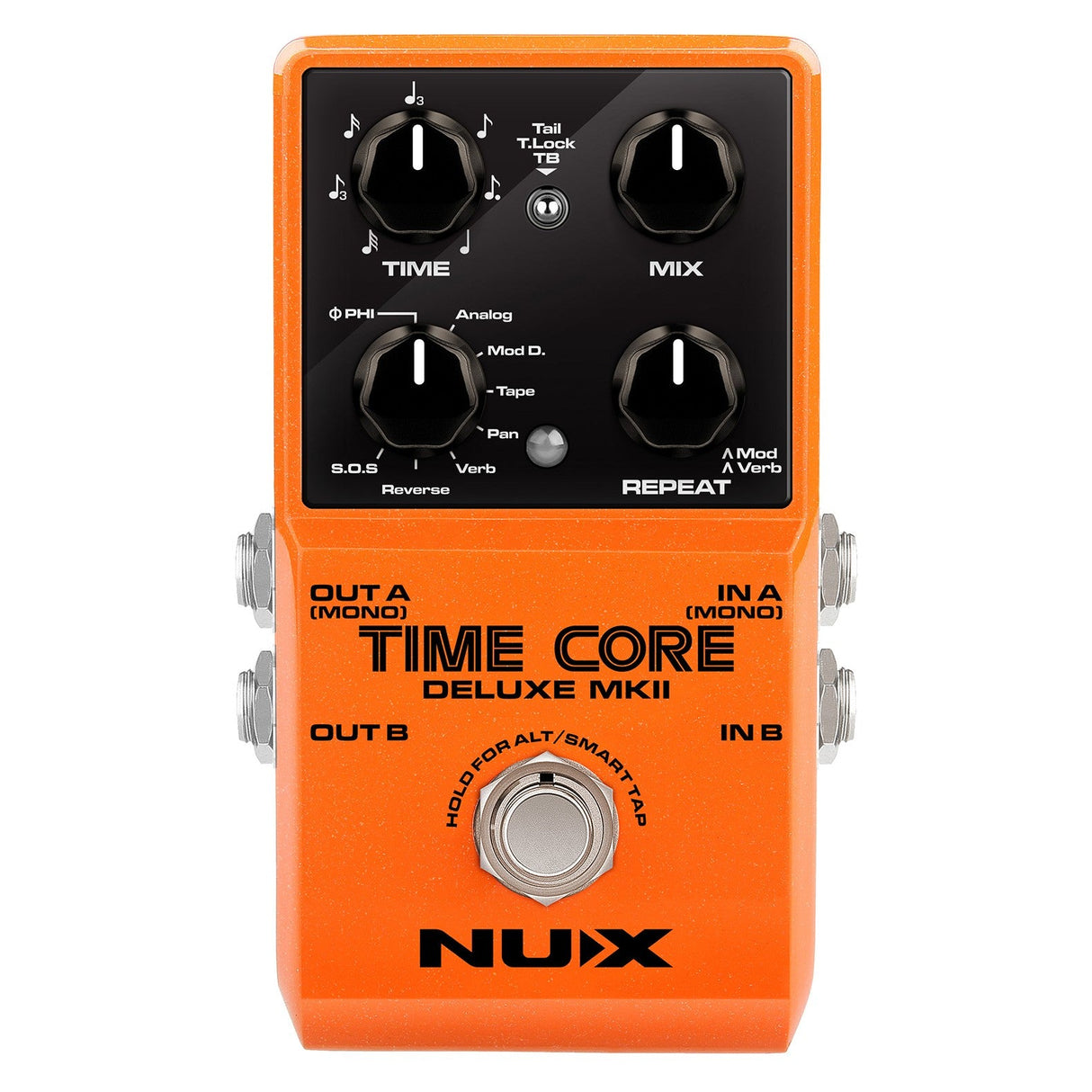

The NU-X Time Core Deluxe MkII Pedal in orange is a digital delay pedal that includes knobs for controlling time, mix, and repeat. It features switches for analog, mod D, and various other settings. Equipped with inputs and outputs designed for stereo signal paths, it is suitable for both mono and stereo use.
