NU-X Mod Core Deluxe MKII Pedal

£7499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Evolving from the popular Mod Core Deluxe pedal, this mkII version has new effect models, signal routing options and editing features. A choice of 8 modulation models range from chorus to phasing and vibrato, with Rate and Depth controls and an additional Tweak control to adjust a third parameter specific to each effect and a further Blend adjustment in Alt mode. Rate can also be adjusted using a Tap Tempo function of the main footswitch. Mod Core Deluxe mkII has routing options for mono out, stereo out or mono with send/return loop. When using the loop, there are 3 routing options for pre, parallel and post effect placement. If you have space for just one mod effect on your board, the Mod Core Deluxe mkII offers a choice of 8 high quality pedals in a single compact stomp box format.

  • Analog dry signal path for low noise and zero latency
  • Built-in send-return loop
  • 4 paramter control for effect settings
  • USB-C for firmware updates
  • 8 distinct modulation effect models
  • Mono or stereo output
Specification
Power supply 9Vdc (power adaptor required)
DC input connection DC5521 jack (for optional adaptor - pin-negative)
Current consumption <120mA
Controls Rate, Depth, Tweak & Mod type
Modes ST.CH, CE-1, SCF CHO, SCF FLG, SCF PM, U-VIBE CHO, U-VIBE VIB, PH-100
Inputs Instrument in & Loop return (6.3mm mono jack)
Outputs Out1 & Out2/Loop send (6.3mm mono jack)
Tempo range 50-200 bpm
Sampling format 48kHz, 24-bit
Input impedance 1M ohm
Output impedance 1k ohm
Dynamic range 104dB
Dimensions 122 x 72 x 47mm
Weight 270g
Downloads

Product Manual

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

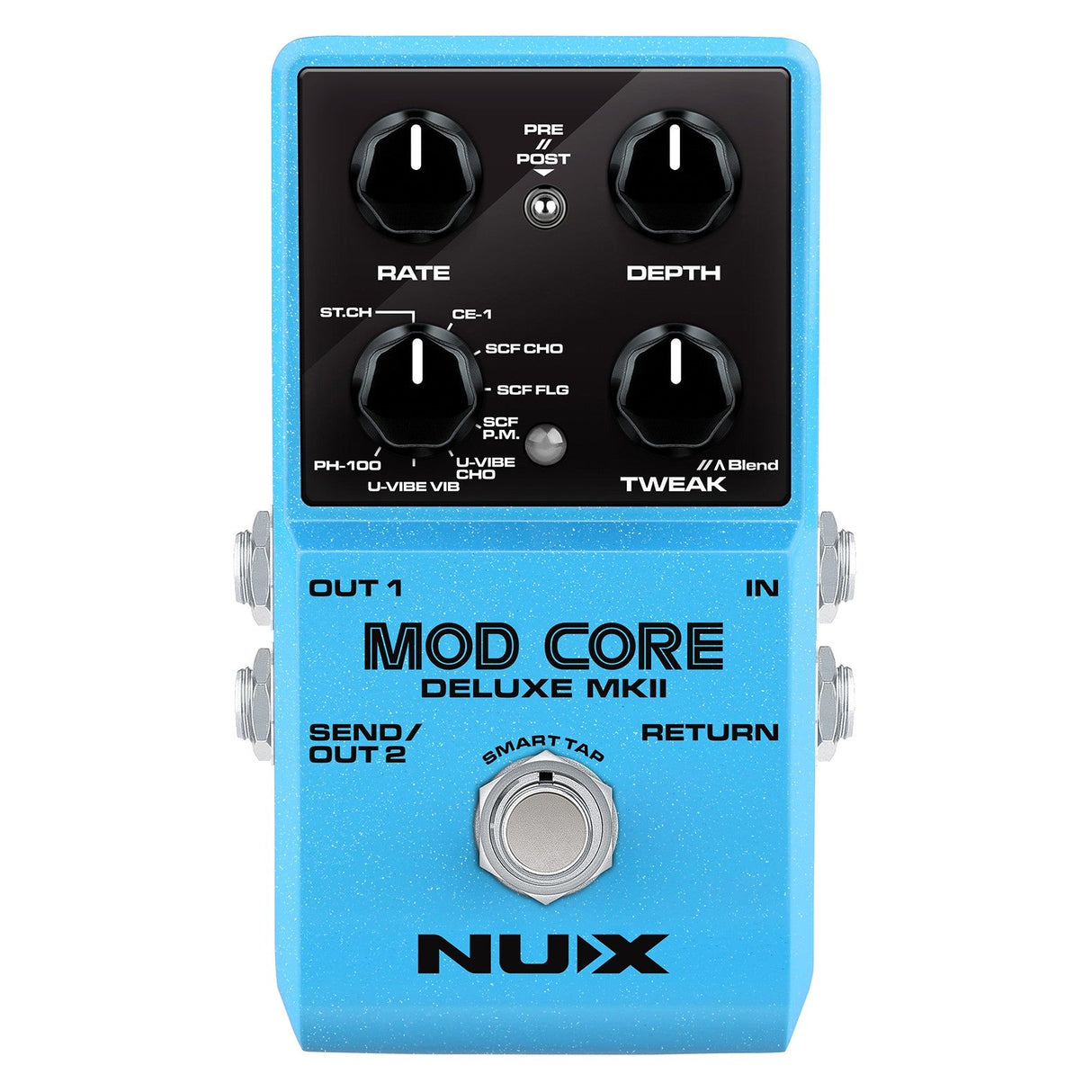

    The NU-X Mod Core Deluxe MKII Pedal in blue, with black knobs, offers advanced modulation models and controls for rate, depth, and tweak functions. It also features versatile settings such as chorus and vibrato. The conveniently labeled side inputs and outputs ensure easy access.
