NU-X B-8 Instrument Pedal Wireless System 2.4GHz

£26999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

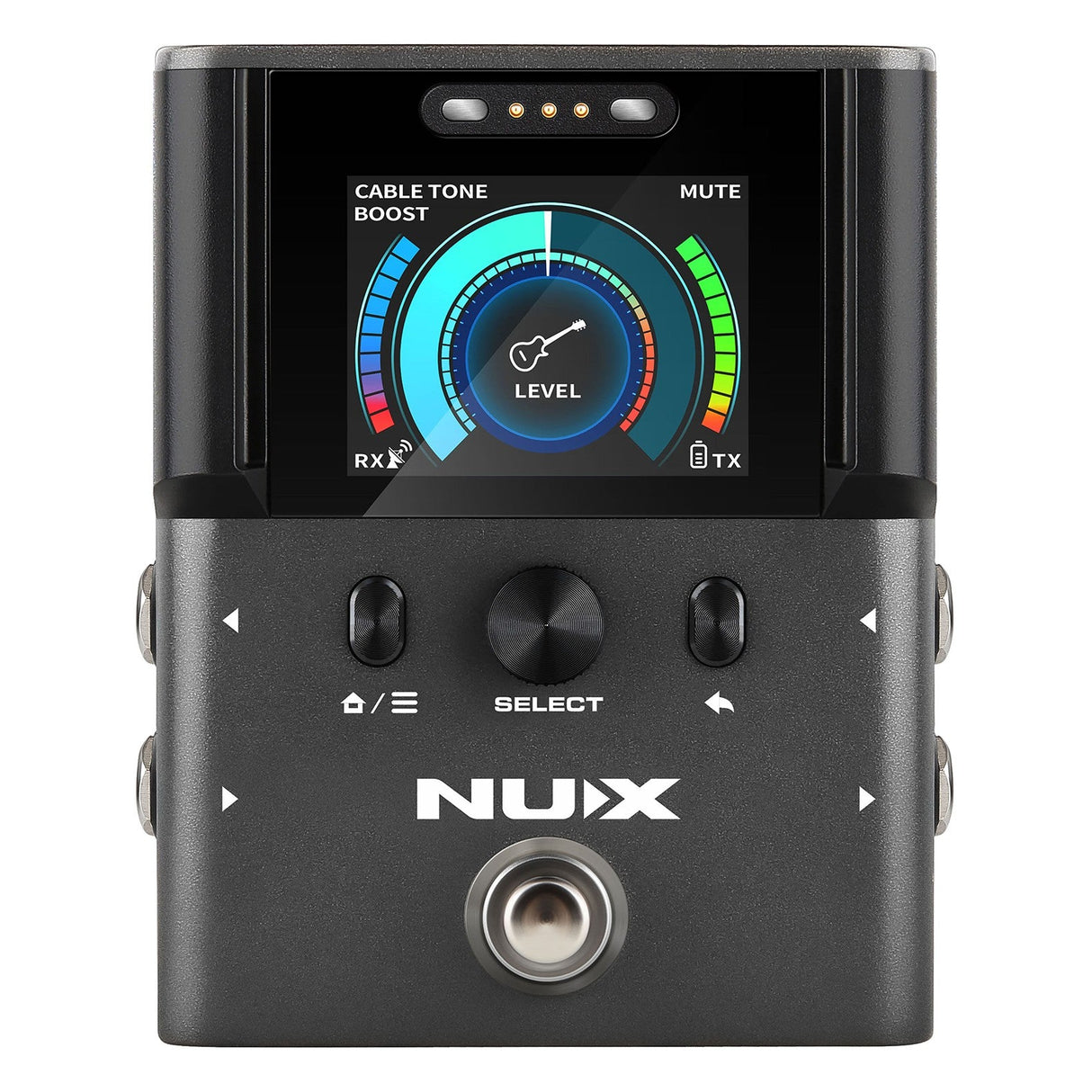

B-8 is the instrument wireless system re-defined, comprising a floor pedal receiver and a rechargeable transmitter pack. Operating on the 2.4GHz radio band, the B-8 offers a variable buffer to choose between higher reception stability or lower latency (as low as 2.5ms). The signal is encoded as 48kHz 24-bit digital for clean and detailed audio output. The receiver pedal is powered by an included 9Vdc power adaptor and serves as a charging station for the transmitter pack, which can also be charged via USB if required. The pedal also includes a full colour multi-function display and an inbuilt tuner with several different modes and settings. There is even an option to personalise the start-up screen with a custom GIF image or animation. A switchable Cable Tone function offers the option of adding the tonal character of using a long guitar lead. A send-return loop is included for inserting effects and sending the buffered output to an amplifier or D.I balanced output to a mixing console. To drive amps or effects with a stronger signal, the B-8 also has an adjustable boost function. B-8 is not simply a wireless system but a complete problem-solving tool for guitar or bass players and is also suitable other instruments, with features to meet the most demanding requirements in a wide variety of setups.

  • Operates on the license-free 2.4GHz band.
  • High quality 48kHz 24-bit digital audio
  • Up to 50m wireless range
  • Adjustable latency for signal stability
  • Selectable Cable Tone and boost functions
  • Inbuilt guitar / chromatic / strobe tuner functions
  • Send and Return effects loop
  • Output jack to amplifier or balanced XLR to mixer
Specification
Power supply 7-12Vdc 500mA (9Vdc adaptor supplied)
Battery 3.7V, 500mAh rechargeable Li-po (Transmitter)
Battery life up to 6.5 hours
Wireless range 50m max.
Carrier frequencies 2.4GHz band (2400-2483.5MHz)
Sampling format 48kHz 24-bit
Frequency response 20Hz - 20kHz
Latency 2.5ms (lowest) to 8.7ms (most stable)
Input impedance 1M ohm
Input level +6.2 dBV, 5.78 Vp-p max (1 kHz at 1% THD)
THD +N 0.01% @ 1kHz (typical)
Dynamic range 122dB A-weighted (Output/Send)
Mute -64dB
Dimensions : transmitter 73 x 49 x 23mm
Dimensions : receiver 122 x 95 x 60mm
Weight : transmitter 63g
Weight : receiver 500g
