Mercury Twin SAT/CCTV Foamed PE Coaxial Cable With Cu Braid - Black (100m)

£6299
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Twin 75 Ohms RG59 coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, copper foil screen, oxygen free copper braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for satellite dish installation with dual or quad LNB or for CCTV signal transmission.

  • Solid OFC conductor
  • Foam filled PE dielectric
  • Copper foil screen
  • OFC braid
  • Supplied in 100m reel with metric cut markers
Specification
Conductor diameter 2 x 0.65mmØ
CSA 2 x 0.33mm²
Dielectric 3mmØ foam PE
Screen Copper foil
Braid 2 x 48/0.14mmØ
Cable : diameter 2 x 5mmØ
Impedance 75 Ohms
Capacitance 67pF/m
Length 100m
Colour Black
Velocity factor 83%
Weight 5.7kg
Return loss 5-400MHz 30dB min./100m
Return loss 450-1000MHz 22dB min./100m
Return loss 1000-2150MHz 18dB min./100m
Attenuation @ 50MHz 6.5dB max./100m
Attenuation @ 100MHz 8.9dB max./100m
Attenuation @ 200MHz 12.3dB max./100m
Attenuation @ 400MHz 17.6dB max./100m
Attenuation @ 860MHz 24.7dB max./100m
Attenuation @ 1000MHz 26.9dB max./100m
Attenuation @ 1750MHz 35.7dB max./100m
Attenuation @ 2150MHz 42.2dB max./100m
Conductor material Solid OFC
Braid material OFC

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

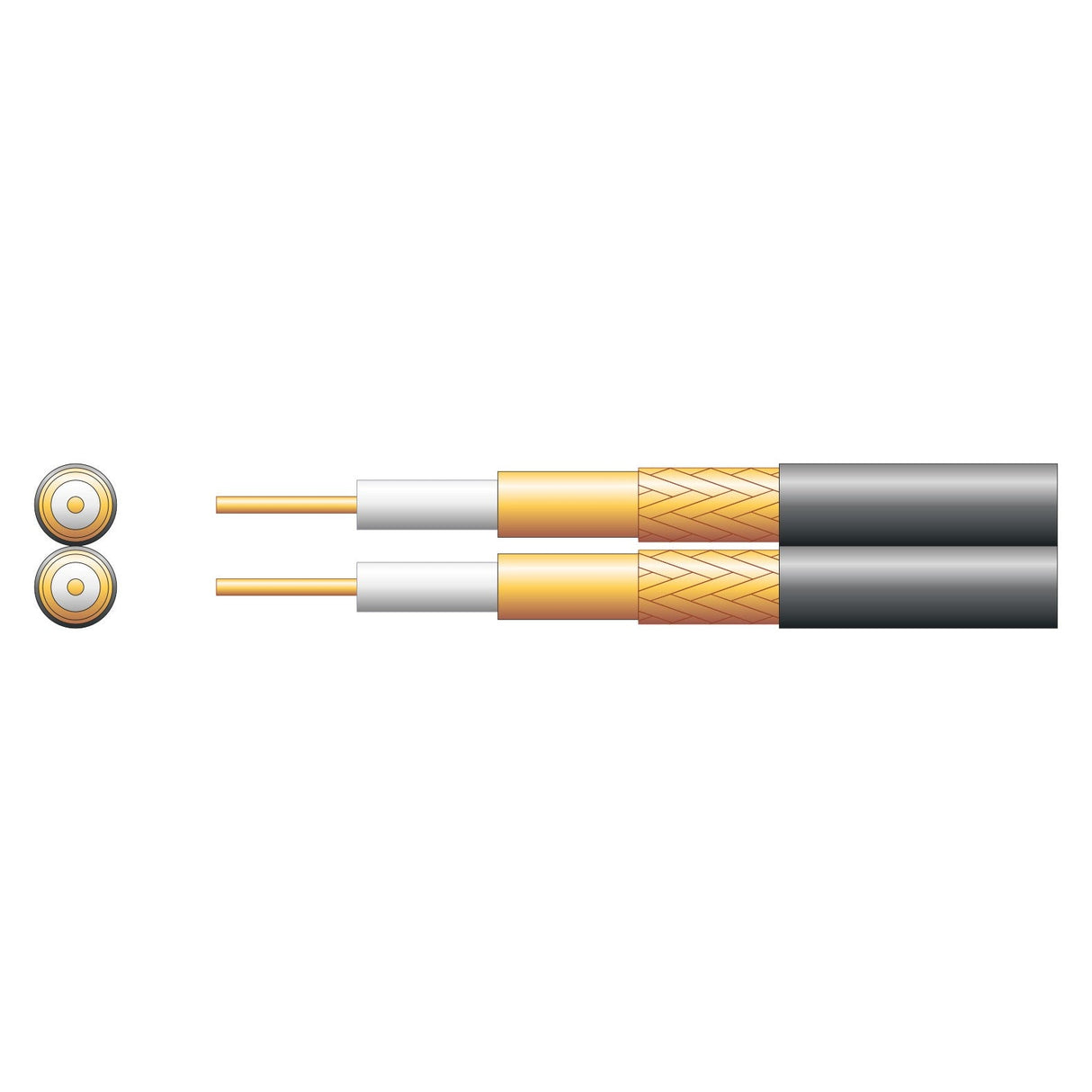

    Illustration of the Mercury Twin SAT/CCTV Foamed PE Coaxial Cable with Cu Braid - Black (100m), featuring two parallel wires. Each wire includes a central conductor, dielectric insulator, braided copper shield, and protective outer jacket. Ideal for satellite dish installations, a cross-sectional view is displayed on the left.
