Mercury Remote Cable Tester 4 Port

£2099
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

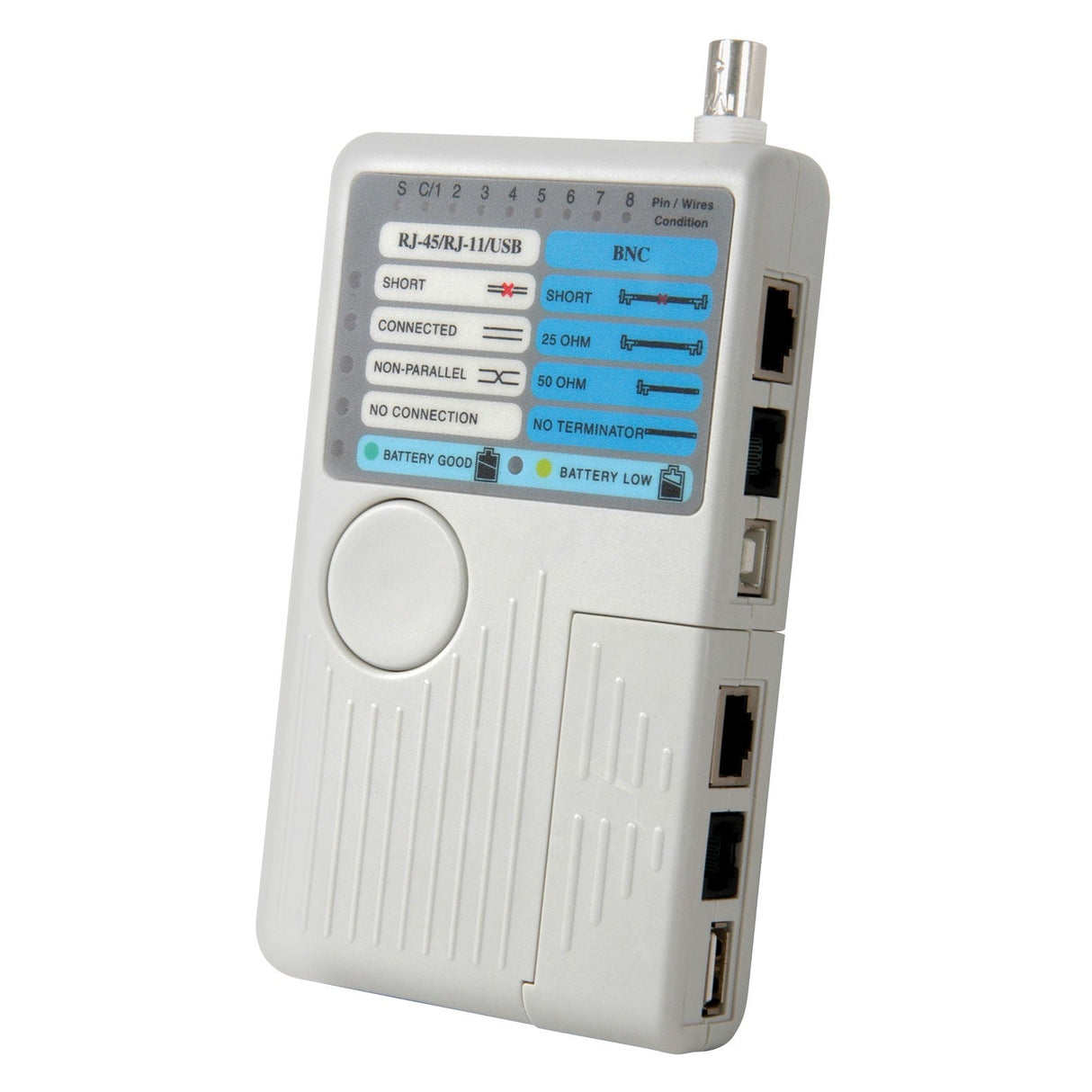

A handheld test meter for determining continuity and wire/pin-related faults in network, telephone, USB and coaxial cables, before and after installation. The device comprises a main module and detachable remote. To test a cable, its ends must be connected to the appropriate RJ45 (UTP/STP), RJ11 or USB jacks in both units. BNC leads must be connected to the plug on the top of the main module and terminated using the BNC remote jack (included) before testing. Pressing the test button generates an audible beep and one of several LED indications on the front panel, denoting various connection statuses, including crossover. The tester is battery powered, with an LED indicator to show when a replacement cell is required. A carry case is included, for protection in transit and storage.

  • Simple single-button test and audible alert for intuitive use
  • Easy-to-read LED indication for short/open circuit, crossover and no connection
  • Battery status indication
  • Carry case included
  • Remote unit stores conveniently within the main unit
  • Tests all common network types: RJ45 (UTP/STP), RJ11, USB and BNC
Specification
Max. cable length 180m (600ft)
Battery 1x 9Vdc PP3 (not supplied)
Dimensions 143 x 86 x 26.5mm
Weight 202g
Downloads

Product Manual
