Mercury Professional Digital Multimeter With Network And USB Cable Tester

£1799
The RRP is the manufacturer's recommended retail price of the item.
Limited stock!
30 Day Returns
Flexible payment options
Description

A professional digital multimeter with network and USB tester that offers 23 testing ranges and 6 functions and comes supplied ready to use in a shockproof rubber holster with shrouded testing probes and battery. The cable testing function uses a sequence of LED's on the main unit and remote unit to test lengths of RJ11, RJ12, RJ45 or USB cables for continuity and wire/pin-related faults. The large 1.25" 3.5 digit LCD display is easy to read and comes with additional backlight for working in darker environments.

  • Network and USB cable test function with remote unit for RJ11, RJ12, RJ45 and USB
  • 3.5 Digit, 1999 count large 1.25" LCD display with backlight
  • 2V-600V AC Voltage, 200mV-600V DC Voltage, 10A AC/DC current and resistance ranges
  • Diode and continuity test functions
  • Low battery indicator
  • Complies with EN61010 - 1:2010
  • Supplied with shrouded test leads, shockproof rubber holster and 9V PP3 battery
Specification
Power supply 9Vdc (1 x PP3 supplied)
AC current 200mA - 10A
DC current 20mA - 10A
AC voltage 2V - 600V
DC voltage 200mV - 600V (Auto ranging)
Resistance 200 Ohms - 20M Ohms
Test lead length 1000mm
Dimensions 190 x 85 x 35mm
Weight 322g (including battery)
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

    Be the first to write a review
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)

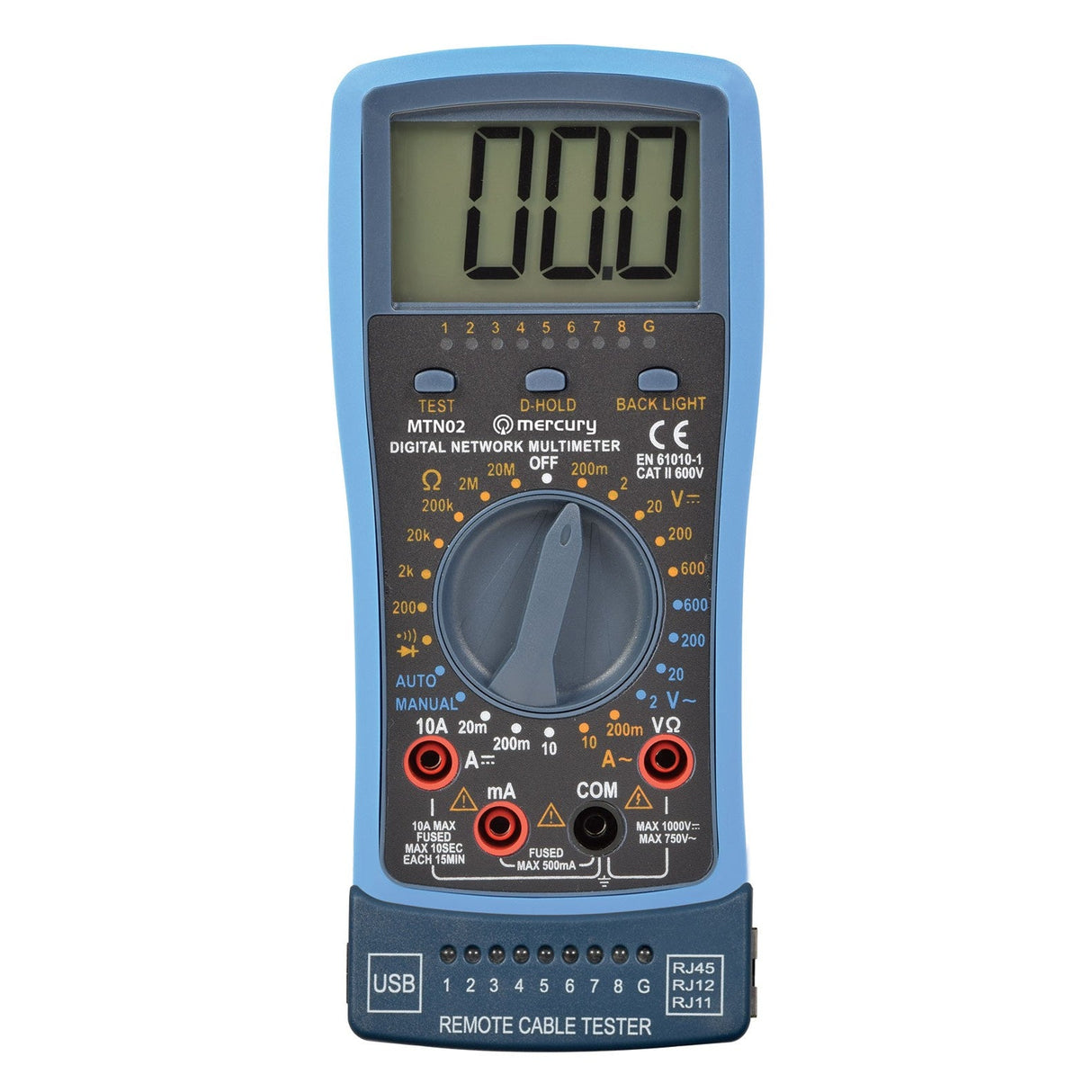

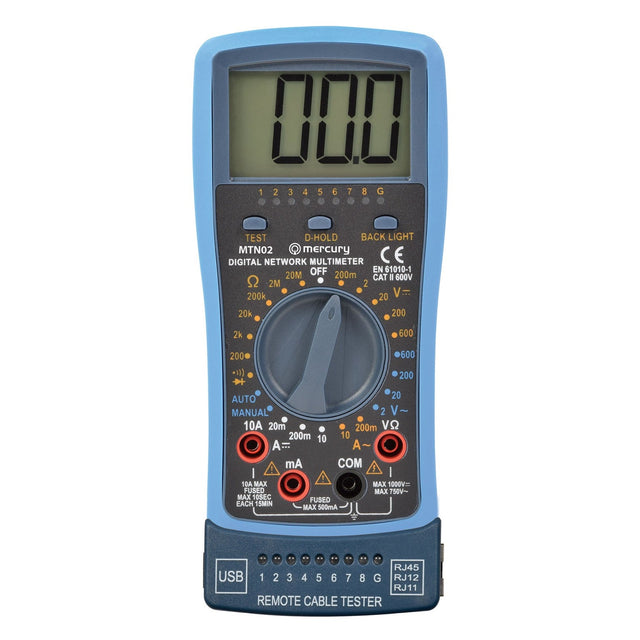

    The Mercury Professional Digital Multimeter With Network And USB Cable Tester features a large LCD showing 0.00, multiple controls, and USB/RJ45/RJ11 ports—combining USB and network cable testing in a blue/gray body with yellow/white markings.
