Mercury Cat5e U/UTP LSZH Network Cable, Lilac (305m)

£10399
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Cat5e oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

  • Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
  • AWG 24 oxygen free solid copper conductor
  • Supplied in an easy-pull dispensing box
  • Passes Cat5e fluke test 100m at 100MHz
  • Complies to TIA/EIA-568 Cat5e standard
  • HDBaseT Compliant
Specification
Strands 8 x 1/0.5mmØ ±2%
Conductor CSA 8 x 0.196mm²
Cable : diameter 5mmØ
Insulation HDPE 0.19mm thickness
Sheath LSZH 0.5mm thickness
Capacitance 4.9nF/100m
DC resistance @ 20°C <9.5 ohms/100m
Impedance (1 to 100MHz) 100±15 ohms
Return loss >20dB @100m
Attenuation <22dB @100m
NEXT >35.3dB
PSNEXT >32.3dB
ELFEXT >23.8dB
PSELFEXT >20.8dB
Phase delay <570ns
Cable colour Lilac
Length 305m
Weight 8.6kg
Conductor Solid OFC

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

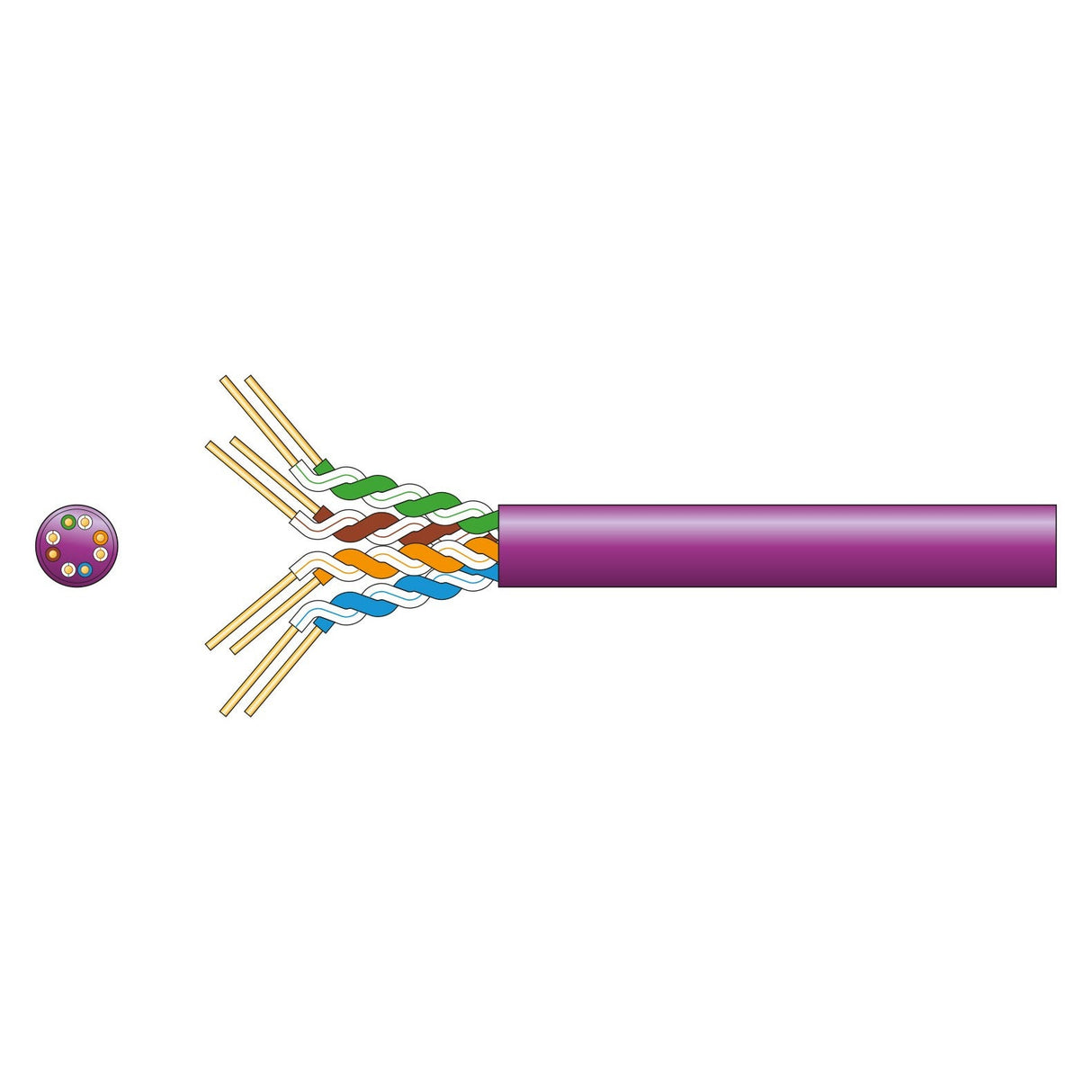

    Illustration of a lilac Mercury Cat5e U/UTP LSZH network cable with wires exposed, ideal for Gigabit Ethernet. The cable features four twisted pairs of colored wires: blue, orange, green, and brown. A small cross-section on the left reveals its oxygen-free copper conductors.
