Mercury 13.8V 25A Switch Mode PSU

£3399
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

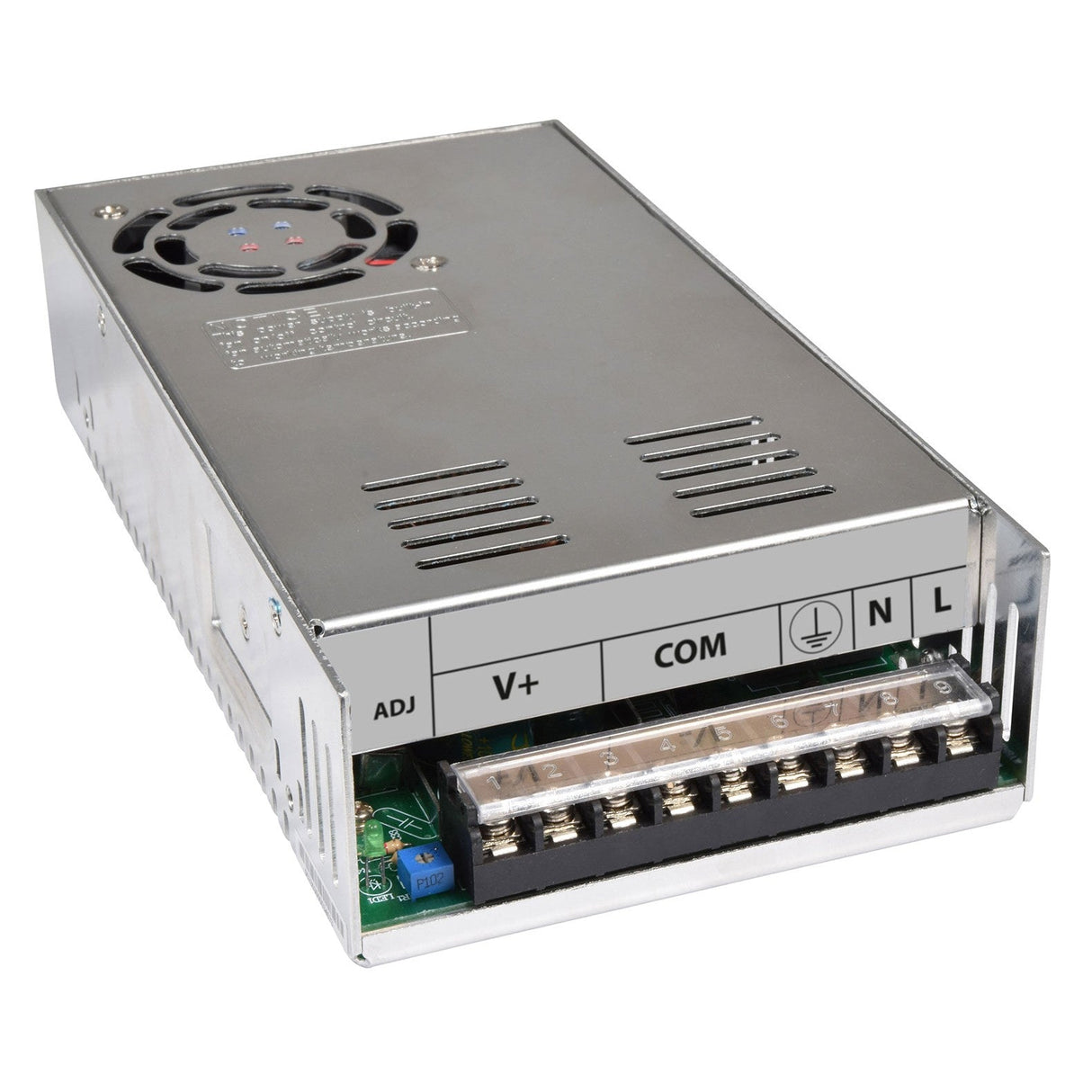

The Mercury 13.8V 25A Switch Mode PSU delivers a regulated 13.8V DC output, matching the voltage of a fully charged 12V lead-acid battery to ensure smooth integration with battery-powered systems. It is well-suited for radio communication gear, security and alarm systems, access control devices, and 12Vdc LED lighting installations. This unit incorporates short-circuit and overload protection, along with an auto-reset feature, enhancing safety and operational reliability. Screw terminal connections allow straightforward installation, while built-in fan cooling maintains stable operation under load. With three output channels, the PSU distributes current efficiently to prevent overloading individual connections. The compact design and IP20 rating make it ideal for indoor use in secure, climate-controlled environments. Built for reliability, efficiency, and versatility, the Mercury 25A PSU is a strong choice for professional users who require consistent performance in demanding situations.

Specification
Output voltage 13.8Vdc
IP rating IP20
Voltage range 12.42V-15.18V
Working temperature -10~40?
Power supply 240Vac/4A 50Hz
Power : max. 345W
Output current 25A
Dimensions 220x50x115mm
Weight 0.85kg
Output channels 3
Downloads

Product Manual
