LYYT 12-24V RGBW DMX Controller

£2899
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

This DMX decoder is designed to convert the universal standard DMX512/1990 into analogue signal to control either 12V or 24V RGBW LED tape. This model can drive 8A/channel and it simply assigns a colour per DMX channel. DC power input and colour channel outputs are connected via screw terminals. DMX input and through connection are also via screw terminals with the start address set by side mounted DIP switches. Powered by a 12V or 24V power supply, this decoder enables 4 channel DMX control of Red, Green, Blue and White output

  • 4 channel DMX control for RGBW colour mixing
  • 256 levels of brightness
  • Up to 8A output per channel
  • 12V or 24V operation
  • Screw terminal DMX input
Specification
Power supply 12-24Vdc
Power : max. Up to 384W/12V & 768/24V
Current consumption 32A max.
DMX channels 4
Output current 4 x 8A max.
Power connection Screw terminals
Output Blue, Red, Green, White, V+
Working temperature -20 to 50 Degrees C
IP rating IP20
Dimensions 170 x 30 x 40mm
Weight 92g
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

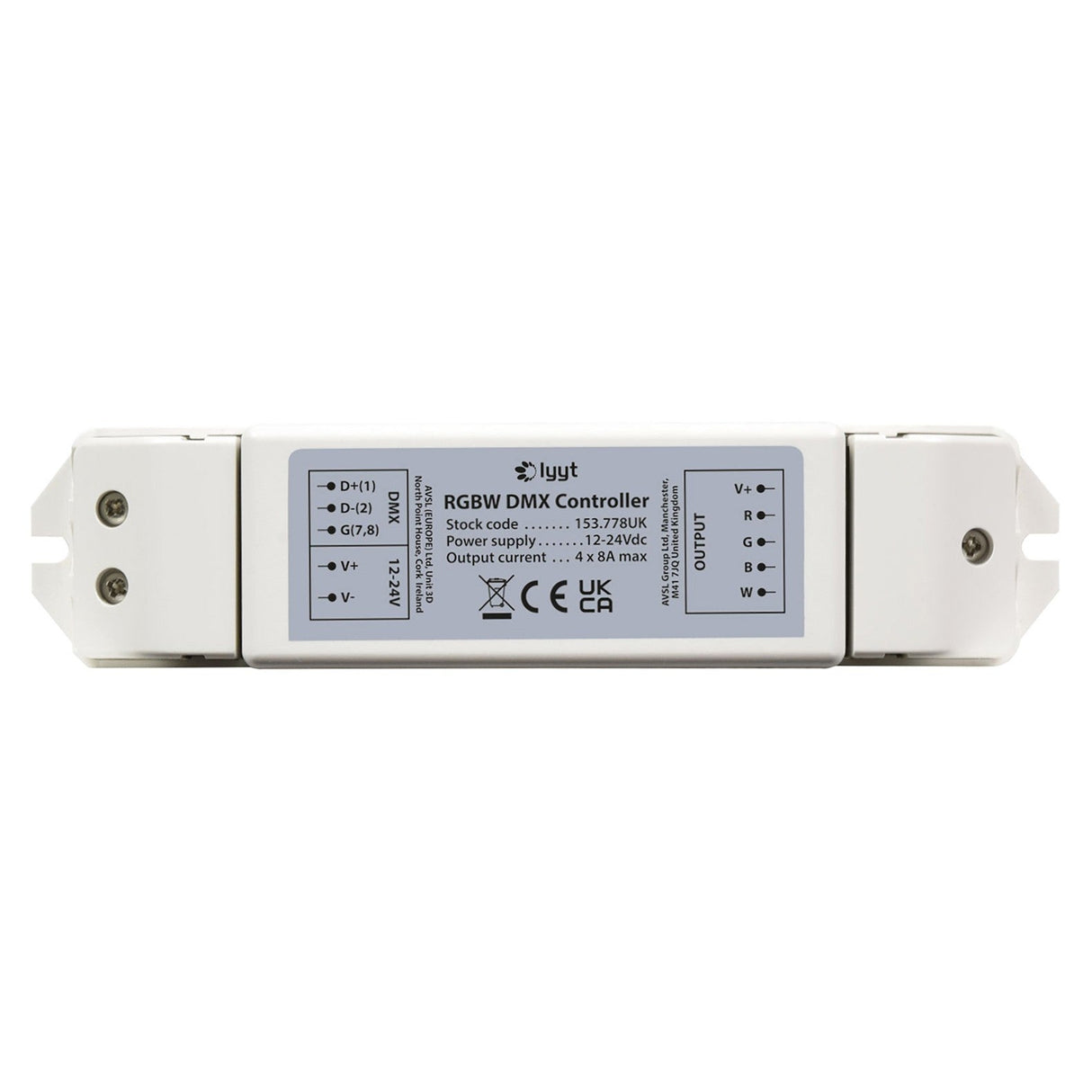

    The LYYT 12-24V RGBW DMX Controller is a rectangular decoder compatible with DMX512/1990, featuring labeled terminals for D+, D-, V+, and V-. With a stock code of 153787UK, it supports a power supply of 12-24VDC and provides an output current of 4x8A, making it ideal for use with RGBW LED tape. It is also CE and UKCA marked.
