Citronic RU210-H Dual Multi-Uhf Handheld System

£17999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

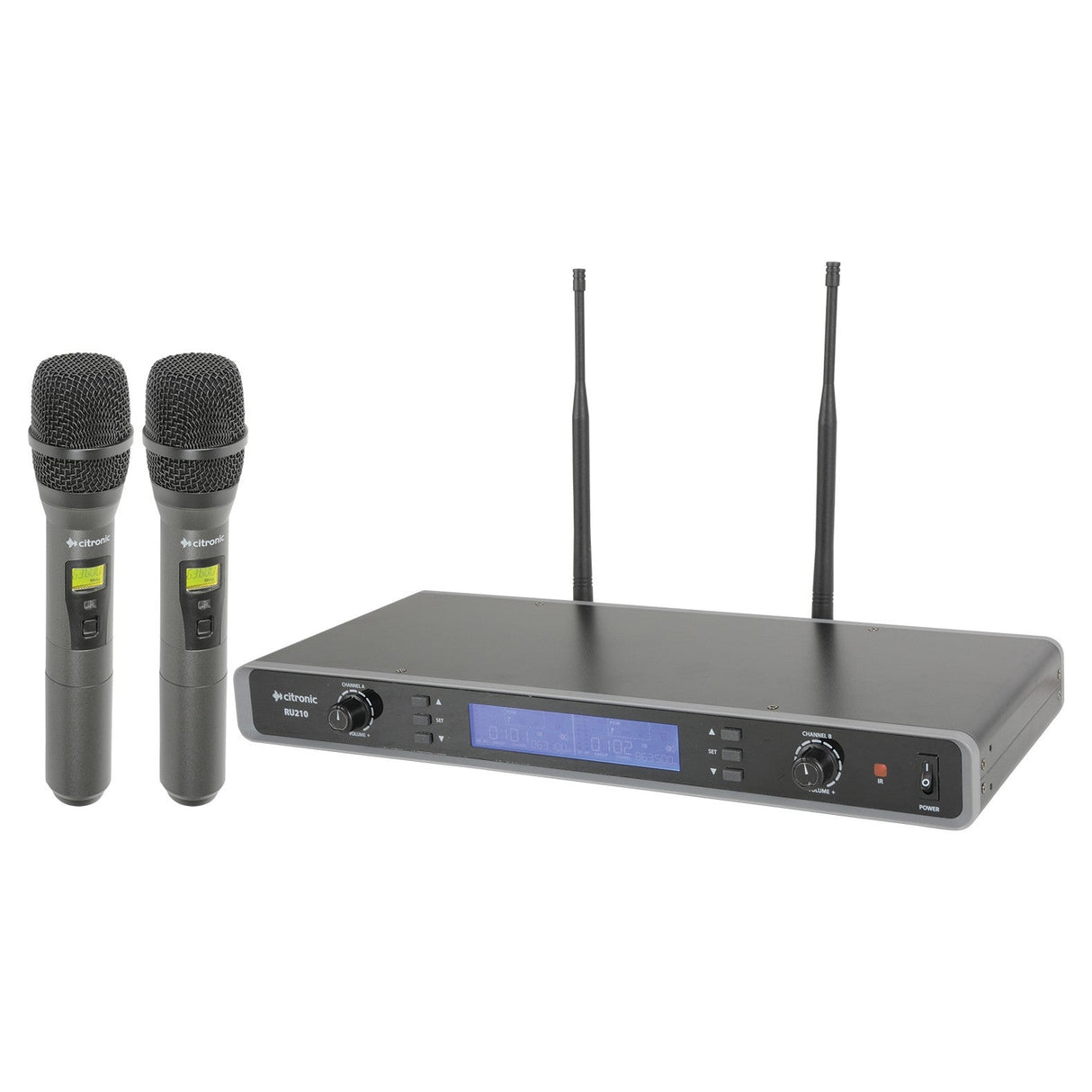

Dual channel PLL tuneable UHF wireless system with 2 handheld transmitters. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronised to the transmitter via infra-red at the touch of a button. Up to 2 RU210 systems can be operated together on the EU licence-free band.

  • PLL tunable with 81 UHF frequencies
  • Pilot tone & mute circuit for stable signal
  • Rack-mounting accessories included
  • Supplied with mains adaptor and 4 x AA batteries
  • Licence free operation in UK & EU
Specification
Power supply 12-18Vdc, 500mA (mains adaptor included)
Batteries 4 x AA (2 per transmitter - included)
Carrier frequencies 863 - 865MHz (81 selectable frequencies)
Dimensions : receiver 44 x 409 x 190mm
Signal to noise ratio >105dB
THD <0.5% @ 1KHz
Image rejection >85dB
Range 60m
Output impedance 2.2k Ohms
Output level 400mV (balanced), 200mV (unbalanced)
Weight : receiver 1.37kg
Frequency response 50Hz-18KHz ±1 dB
Dimensions : transmitter 265 x 49mmØ
Weight : transmitter 330g (no battery)
Downloads

Product Manual
