Citronic H3200 Hybrid Amplifier 2x1200W @4ohm

£51599
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Citronic H3200 is a lightweight hybrid Class-H power amplifier delivering 2 x 1200W RMS at 4 Ohms, 2 x 800W RMS at 8 Ohms, and up to 3200W bridged. Its hybrid Class-H architecture combines digitally controlled efficiency with the power and stability of a professional output stage. Designed for high SPL applications, it features a backlit LCD for voltage, temperature, and output level monitoring, along with switchable sensitivity settings (1.0V, 1.4V, 2.0V) to match audio sources. The amplifier can operate in stereo, parallel, or bridge modes, with a switchable 120Hz low-pass filter for subwoofer use, eliminating the need for separate crossovers. Full internal protection includes short/open circuit, thermal, RF, DC fault, active inrush limiting, and on/off muting. Balanced audio paths and high damping factor (>700) ensure outstanding sound quality. Built for installers and PA professionals, this 2U rack amplifier delivers immediate and dynamic power on demand.

  • Hybrid class-H circuit design
  • Digitally controlled and monitored power section
  • Switchable 120Hz low-pass crossover
  • Backlit LCD status display
  • Full internal thermal and overload protection
  • Stable down to 2 Ohms (4 Ohms bridged)
Specification
Power supply 200-240Vac, 50Hz (IEC)
Amplifier : construction Hybrid Class-H
Protection Short/open circuit, thermal, RF, DC fault, on/off mute, active inrush
Frequency response 20Hz-20KHz ±0.5dB
THD +N 0.2%
S/N ratio -95dB
Damping factor >700
Input sensitivity 1.0V - 1.4V - 2.0V switchable
Input impedance 20K? (balanced),10K? (unbalanced)
Crossover Switchable full range or fixed 120Hz low-pass filter
Dimensions 483 x 361 x 88 mm (2U)
Fuse T10AL 250V
Power rms @ 8 Ohms 2 x 800W
Power rms @ 4 Ohms 2 x 1200W
Power rms @ 2 Ohms 2 x 1600W (40ms burst 1kHz sine)
Power rms bridge @ 4 Ohms 3200W (40ms burst 1kHz sine)
Power rms bridge @ 8 Ohms 2400W
Weight 8.9kg
Downloads

Product Manual

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

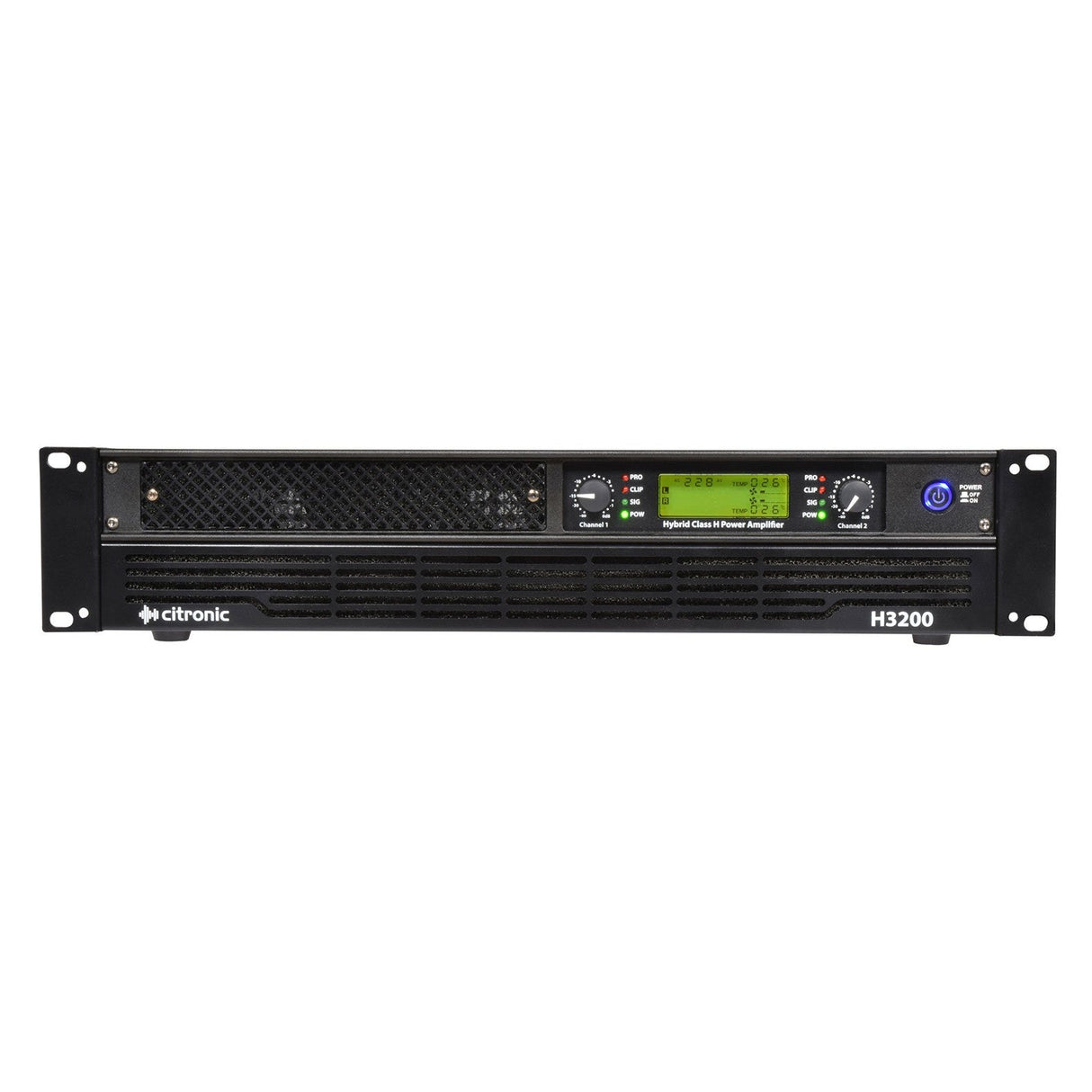

    Front view of a Citronic H3200 Hybrid Amplifier 2x1200W @4ohm in black, showcasing ventilation grills, control knobs, and a green display screen. Ideal for rack mounting in sound reinforcement systems with its advanced class-H architecture for optimal performance.
