Citronic CSP-408 Powered Mixer - 400W

£30999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Powered mixer with balanced mic/line inputs and 2 stereo inputs, each with 3-band EQ and aux send. A 16 program DSP section with tap tempo can provide vocal effects and a 7-band graphic EQ facilitates global tone control. The built-in stereo amplifier delivers ample power to drive 2 or 4 speakers for coverage in medium sized venues, offering a compact and comprehensive solution for mobile PA, bars and special events.

  • 24-bit 16 program DSP effects
  • 48V phantom power for XLR inputs
  • 3-band EQ per channel
  • 7-band global graphic EQ
  • Balanced main outputs
  • Internal stereo power amplifier
Specification
Power supply 230Vac 50Hz (IEC)
Input level +24dBu
Output level : line +26dBu
Frequency response 20Hz-30kHz (0.5dB)
CMRR >74dB (mic 1kHz)
THD +N <0.01% (channel to main out)
Crosstalk >85dB (fader mute), >82dB (channel)
Noise rms : 22Hz-22kHz -122dBu (EIN), -82dBu (mix)
EQ: high 12kHz ±15dB shelving
EQ: mid 2.5kHz ±15dB band pass
EQ: low 80Hz ±15dB shelving
Input impedance : mic (balanced) 2k Ohms
Input impedance : line (balanced) 10k Ohms
Sensitivity : mic -60 to +14dBu
Sensitivity : line -40 to +14dBu
2-track 2 x RCA in & out (-2dBu)
Effects 16 program DSP (24-bit sigma-delta, 40khz)
Output impedance <75 Ohms
Headphone output 6.3mm jack, 30-600 Ohms
Speaker : outputs L+R SPK connectors
Phantom power +48V (XLR inputs)
Power consumption 600W
Fuse T10A (5 x 20mm, 250V)
Output power @ 4 Ohms 2 x 200Wrms
Output power : 8 Ohms 2 x 130Wrms
Inputs : Mic/Line 4 x balanced XLRF/TRS jack
Dimensions 315 x 322 x 153mm
Weight 6.80kg
Downloads

Product Manual

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

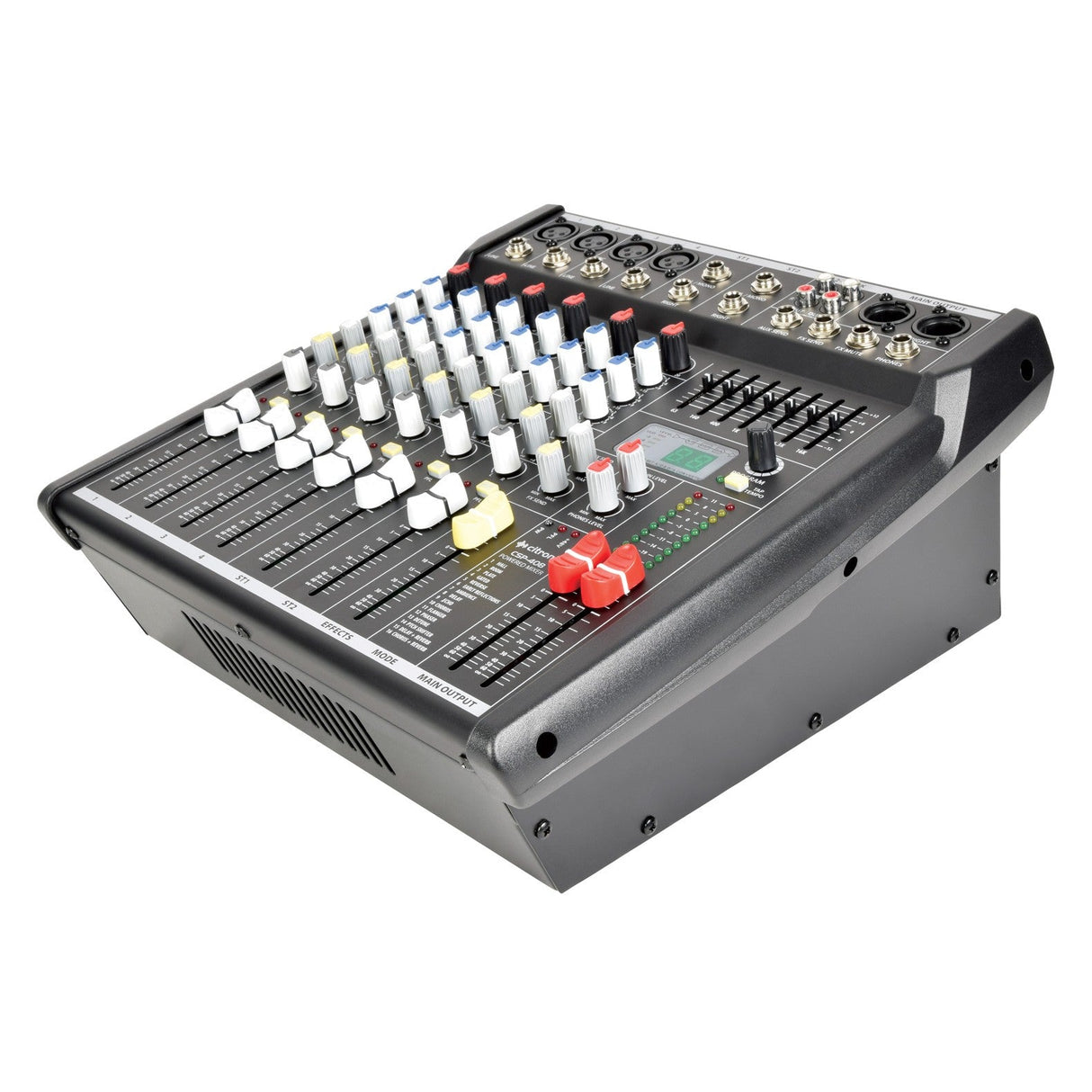

    The Citronic CSP-408 Powered Mixer - 400W is a compact device featuring an array of knobs, sliders, and input ports. Its black casing is angled for easy access, while the red, white, and blue knobs facilitate convenient sound level adjustments. Integrated DSP effects provide a range of audio enhancement options.
