Citronic CSM-6 Mixer With USB/Bluetooth Player

£8099
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
14 Day Returns
Flexible payment options

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.

  • Integral USB multi-format audio player
  • BT wireless connectivity
  • Supplied with DC power adaptor
  • Built in record function
  • Digital delay effect for vocals or instruments
  • Individually switchable +48V phantom power
Power supply 5Vdc 1A (adaptor included)
Output Left + Right balanced XLR
Phantom power +48V individually switchable (XLR inputs only)
Audio format USB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)
Bluetooth version 2.1 + EDR
Power consumption max. 5W
Max. output level 3Vrms
Dynamic range 102dB
Frequency response 20Hz - 20kHz (±0.5B)
THD +N <0.03% @ 1kHz
Crosstalk : stereo 92dB
Gain -14 to +40dB
EQ: low ±15dB @ 80Hz
EQ: high ±15dB @ 12kHz
Audio source Internal USB player/recorder & BT receiver
Input impedance : mic 2k Ohms
Input impedance : instrument 1M Ohms
Input impedance : line 20k Ohms
Output impedance 120 Ohms
Dimensions 220 x 165 x 66mm
Inputs 4 x combo XLR/jack + stereo jack
Weight 1.17kg

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You
    Rated 4.5 / 5
    Trustpilot Rating
    Based on 100 reviews

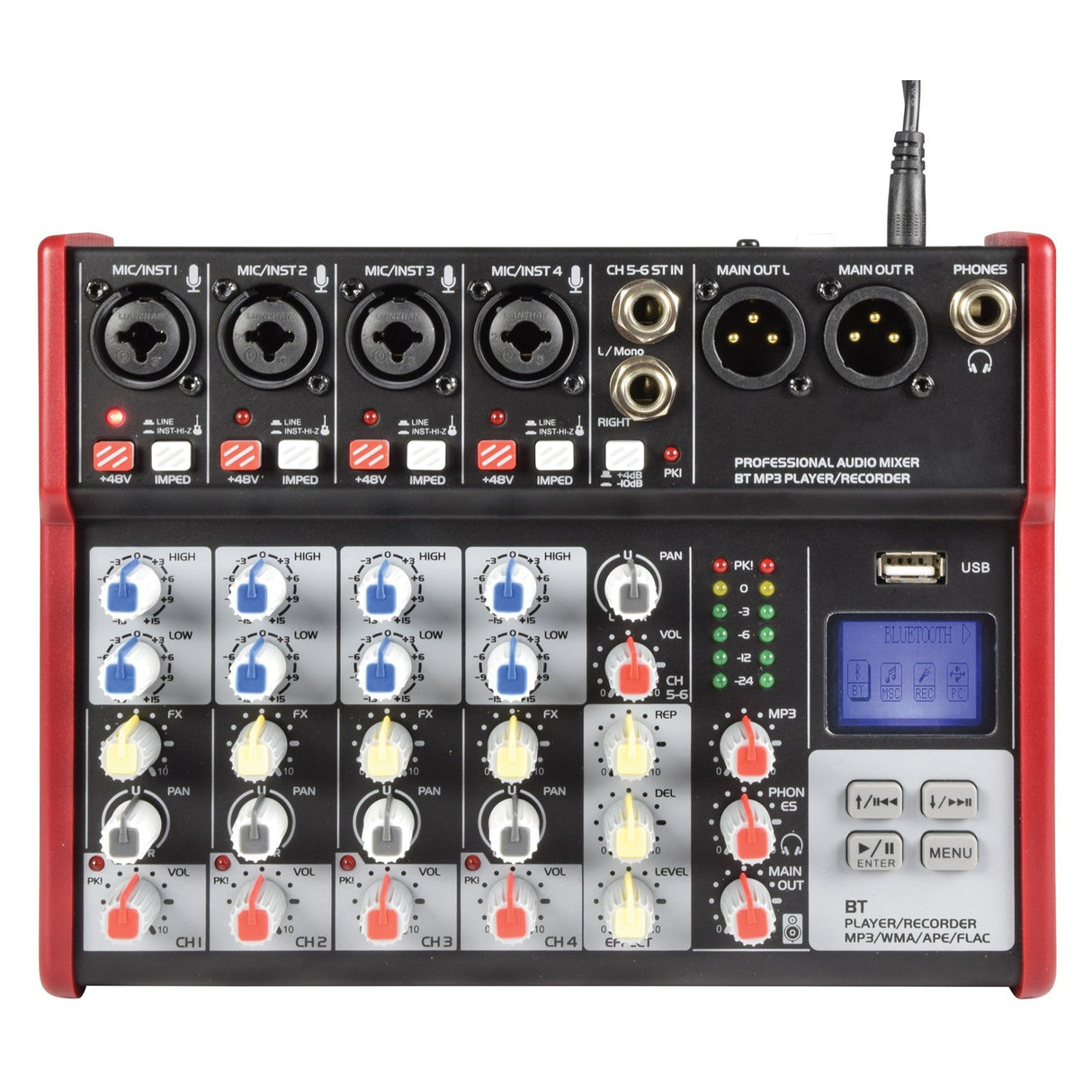

    The Citronic CSM-6 Mixer with USB/Bluetooth Player is a professional audio mixer equipped with multiple input/output ports, controls, and knobs for precise volume and sound adjustments. It features a digital display screen and USB connectivity for easy integration, along with a digital delay effect, all housed in a compact red and black body.
