Citronic CDM8:4 USB 14 - INPUT 19" RACK DJ MIXER

£26899
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
14 Day Returns
Flexible payment options

This 14 input, 4 channel professional DJ mixer is ideal for mobile use and installations. Each channel has 3 band EQ with individual volume control that can be assigned to either side of the crossfader or cue mix fader. It features USB IN/OUT for playback or recording, and there are 3 x microphone inputs, great for karaoke and DJ set-ups.

  • 45mm rail glide replaceable crossfader with defeat and assign channels
  • 3-band EQ on all stereo channels
  • Remote fader starts on stereo channels
  • DJ mic + 2 vocal mic inputs for karaoke
  • Internal digital delay or FX loop for vocal mics
  • 3.5mm input option for patching in an MP3 player
  • Individual gain controls on each music channel
  • Hi/Lo EQ for each mic channel
  • 12Vdc BNC output for console light
  • 2 x phono, 6 x line, 2 x USB IN/OUT, 1 x 3.5mm jack and 3 x microphone inputs
Power supply 115/230Vac, 50/60Hz (IEC)
Equaliser : bass -30 +10dB @ 100Hz
Equaliser : midrange -30 +10dB @ 800Hz
Equaliser : treble -30 +10dB @ 9kHz
Signal to noise ratio : line >87dB
Signal to noise ratio : mic 68dB
Signal to noise ratio : phono 73dB
Headphone output 112mV @ 32 Ohms
Console light power 12Vdc 5W max (BNC)
Dimensions 483 x 175 x 110mm (4U)
Weight 4.06kg
Have a question?
We're here to help
Call Us

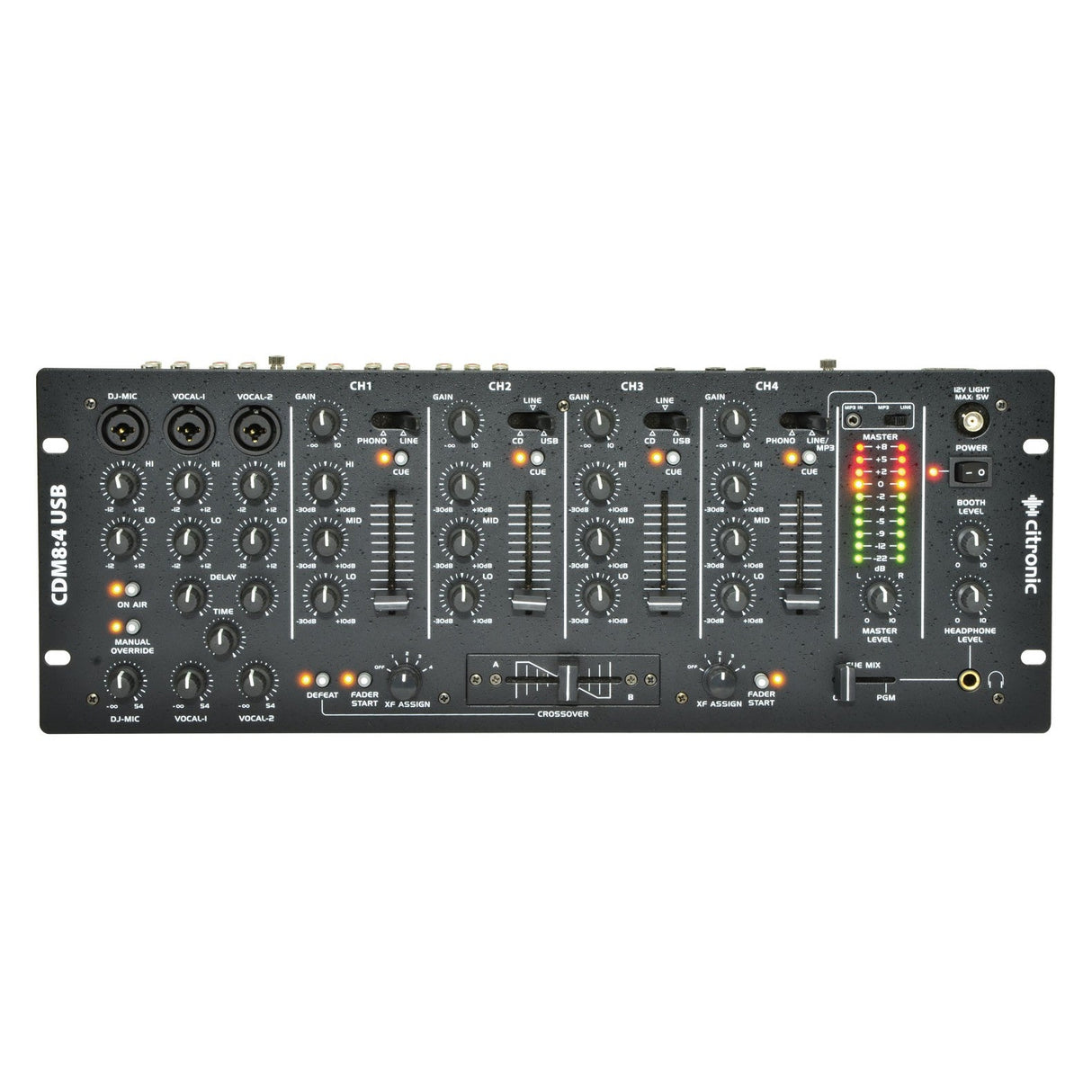

A close-up of the Citronic CDM8:4 USB 14-Input 19" Rack DJ Mixer showcases multiple channels, dials, sliders, and input ports. LED indicators and various control buttons are distributed across the sleek black panel. The crossfader seamlessly blends tracks while USB playback ensures versatile performance options.
AVSL

Citronic CDM8:4 USB 14 - INPUT 19" RACK DJ MIXER

£26899
Description

This 14 input, 4 channel professional DJ mixer is ideal for mobile use and installations. Each channel has 3 band EQ with individual volume control that can be assigned to either side of the crossfader or cue mix fader. It features USB IN/OUT for playback or recording, and there are 3 x microphone inputs, great for karaoke and DJ set-ups.

Specification
Power supply 115/230Vac, 50/60Hz (IEC)
Equaliser : bass -30 +10dB @ 100Hz
Equaliser : midrange -30 +10dB @ 800Hz
Equaliser : treble -30 +10dB @ 9kHz
Signal to noise ratio : line >87dB
Signal to noise ratio : mic 68dB
Signal to noise ratio : phono 73dB
Headphone output 112mV @ 32 Ohms
Console light power 12Vdc 5W max (BNC)
Dimensions 483 x 175 x 110mm (4U)
Weight 4.06kg
Downloads

Product Manual

View product

This 14 input, 4 channel professional DJ mixer is ideal for mobile use and installations. Each channel has 3 band EQ with individual volume control that can be assigned to either side of the crossfader or cue mix fader. It features USB IN/OUT for playback or recording, and there are 3 x microphone inputs, great for karaoke and DJ set-ups.

  • 45mm rail glide replaceable crossfader with defeat and assign channels
  • 3-band EQ on all stereo channels
  • Remote fader starts on stereo channels
  • DJ mic + 2 vocal mic inputs for karaoke
  • Internal digital delay or FX loop for vocal mics
  • 3.5mm input option for patching in an MP3 player
  • Individual gain controls on each music channel
  • Hi/Lo EQ for each mic channel
  • 12Vdc BNC output for console light
  • 2 x phono, 6 x line, 2 x USB IN/OUT, 1 x 3.5mm jack and 3 x microphone inputs
Power supply 115/230Vac, 50/60Hz (IEC)
Equaliser : bass -30 +10dB @ 100Hz
Equaliser : midrange -30 +10dB @ 800Hz
Equaliser : treble -30 +10dB @ 9kHz
Signal to noise ratio : line >87dB
Signal to noise ratio : mic 68dB
Signal to noise ratio : phono 73dB
Headphone output 112mV @ 32 Ohms
Console light power 12Vdc 5W max (BNC)
Dimensions 483 x 175 x 110mm (4U)
Weight 4.06kg
