Chord Active Direct Injection Box

£1499
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

Active DI box for converting high impedance instrument outputs to low impedance line signals for feeding directly into a mixing console. Internal buffer amplifier to boost the signal, avoiding losses in long cable runs and 3-way pad switch for level matching. Ground-Float-Lift selector enables signal ground isolation with or without RF/mains filtering.

  • Powered by 9-52V phantom power, optional 9V battery or 12Vdc adaptor
  • Ground float option for ground lift with RF/mains filter
  • Ground lift option isolates signal ground without filter
  • 3 pad settings for level matching
Specification
Dimensions 103 x 70 x 45mm
Weight 243g
Input 6.3mm jack (unbalanced)
Outputs XLRM (balanced), 6.3mm jack through (unbalanced)
Input impedance >100k Ohms
Output impedance 600 Ohms
Controls 0/-20/-40dBu pad & Ground-Float-Lift switch
Power supply 9V battery (PP3 not supplied), 12Vdc adaptor (optional) or 9-52V phantom power
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

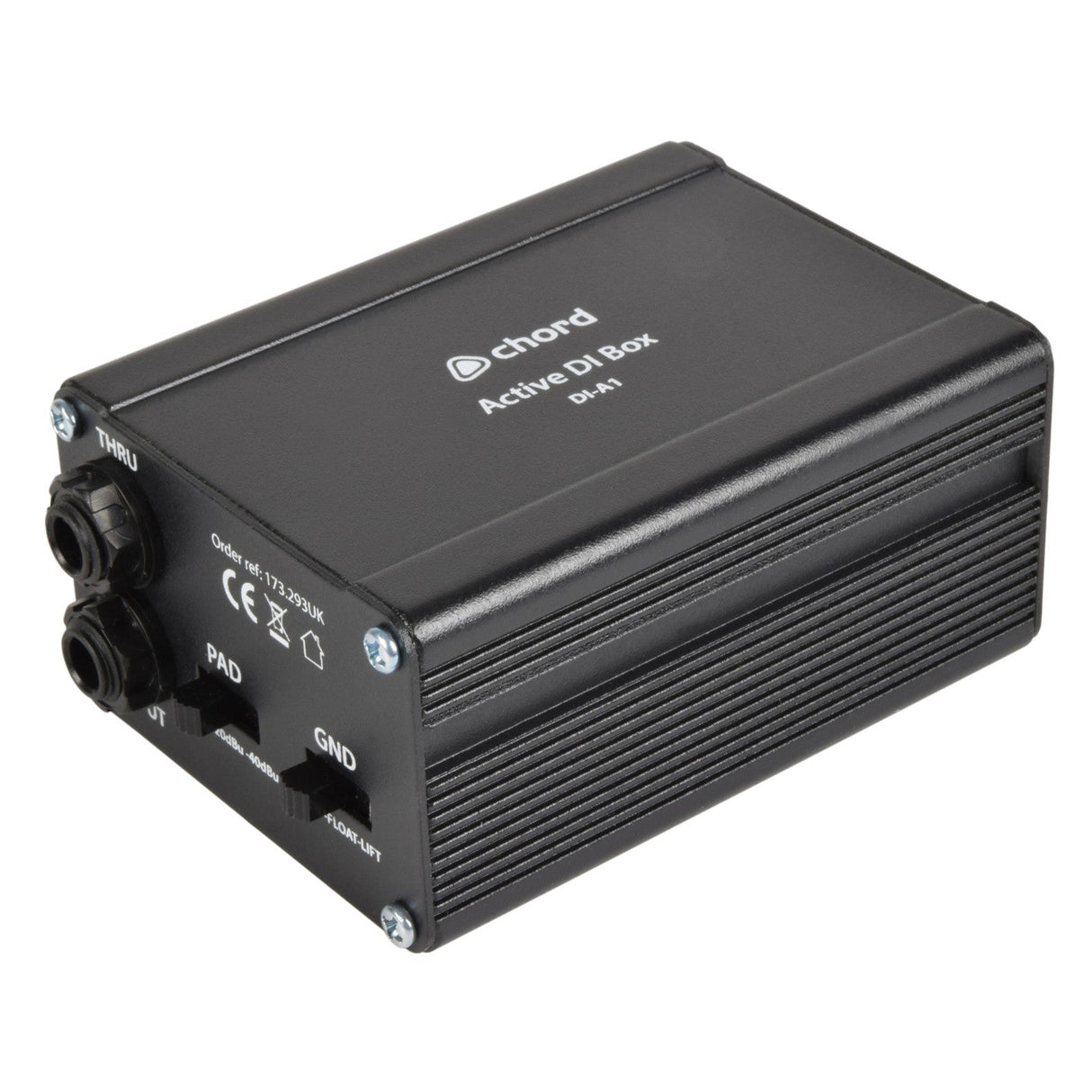

    Displayed is the Chord Active Direct Injection Box, featuring a black design and model DI-A1. This compact rectangular device includes input and output ports with PAD and GND labels for signal ground isolation, designed to facilitate audio connections and function as an impedance converter.
