Adastra UM90 Compact 100V Mixer-Amplifier

£18399
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

The Adastra UM90 Compact Mixer-Amplifier combines digital playback with efficient 100V amplification in a slim, ultra-compact format. Featuring an integrated USB/FM/BT audio player, it allows music streaming and playback without additional equipment. Bluetooth connectivity includes a programmable ID for secure pairing, making it ideal for commercial installations.

Inputs include a microphone, RCA line input, and a 3.5mm aux input, all with dedicated controls alongside master volume adjustment. Mono output can feed either 100V line or 8 Ohm speaker systems, connected via screw terminals. The efficient class D amplifier delivers 90W RMS, with support for DC backup power via 24V terminals for added reliability.

Additional features include 24V fire alarm mute contacts for safety integration and supplied hardware for mounting two units side by side in a 1U rack space. Compact yet powerful, the UM90 is designed for small to medium PA systems in retail, hospitality, and corporate environments.

  • Ultra compact form factor
  • Efficient class D amplifier design
  • Internal USB/FM/BT audio player
  • 100V line or 8 Ohms operation
  • Bluetooth with programmable ID
Specification
Power supply 170-264Vac, 50Hz (IEC) or 24Vdc
Amplifier : construction Class D + transformer output
Audio source Internal USB/FM/BT player
Inputs 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
Line output 2 x RCA (mono)
Speaker outputs Screw terminals - 100V / 8 Ohms / Com
DC power 24Vdc screw terminals
Mute 24V relay contacts
THD <0.4% @ 1kHz
Input impedance 1k Ohms (mic/line)
Input sensitivity -10dB (line), -45dB (mic)
SNR 80dB (line), 75dB (mic)
Frequency response 100Hz - 18kHz
Bluetooth version 5.0
Output power : rms 90W (80W @ 24Vdc power)
Alarm output Fog, siren & alert generator
Dimensions 300 x 210 x 44mm
Weight 3.02kg
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

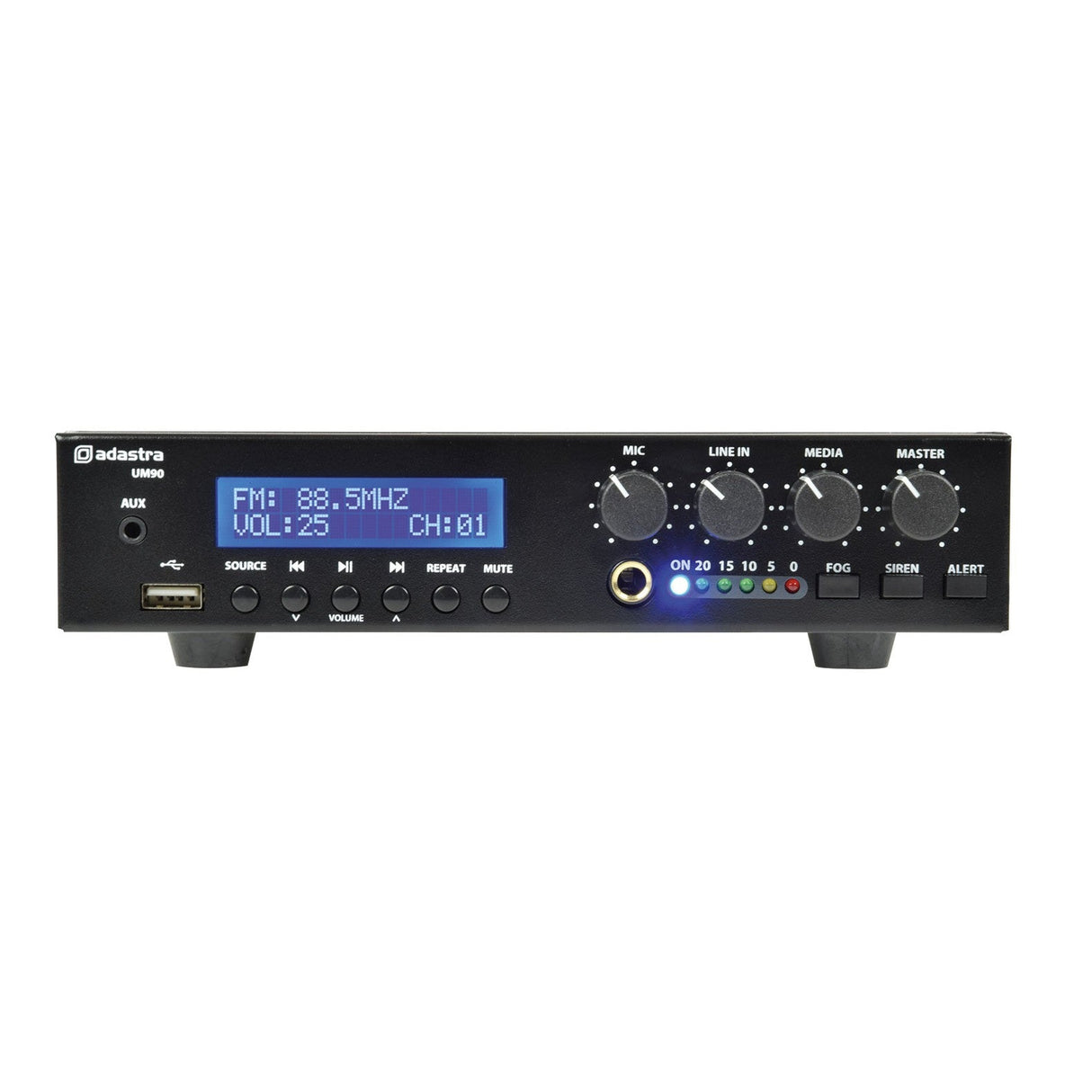

    Front view of a black Adastra UM90 Compact 100V mixer-amplifier, featuring a digital display showing FM: 88.5MHz VOL: 25 CH: 01. It includes various control knobs and buttons for mic, line in, media, and master functions, with the added versatility of a Bluetooth receiver and USB audio player.
