Adastra UM60 Compact 100V Mixer-Amplifier

£16399
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

The Adastra UM60 Compact Mixer-Amplifier is an ultra-compact unit with integrated digital playback, ideal for small to medium PA installations. Built with an internal USB/FM/BT player, it offers flexible music and audio options straight from the front panel. Bluetooth pairing is simple and secure with its programmable ID function.

Inputs include a microphone, RCA line input, and a 3.5mm aux input, all controlled independently with a master volume knob. The UM60 outputs 60W RMS to either 100V line or 8 Ohm systems via screw terminal connectors, making it suitable for versatile installations.

Safety features include 24V fire alarm mute contacts, ensuring emergency messages take priority. The efficient class D amplifier guarantees reliability while keeping the unit compact and lightweight. Rack-mounting hardware is included for fitting two units side by side in a 1U rack space. The UM60 is perfect for retail shops, classrooms, or small offices needing dependable sound delivery.

  • Ultra compact form factor
  • Efficient class D amplifier design
  • Internal USB/FM/BT audio player
  • 100V line or 8 Ohms operation
  • Bluetooth with programmable ID
Specification
Power supply 170-264Vac, 50Hz (IEC) or 24Vdc
Amplifier : construction Class D + transformer output
Audio source Internal USB/FM/BT player
Inputs 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
Line output 2 x RCA (mono)
Speaker outputs Screw terminals - 100V / 8 Ohms / Com
DC power 24Vdc screw terminals
Mute 24V relay contacts
THD <0.4% @ 1kHz
Input impedance 1k Ohms (mic/line)
Input sensitivity -10dB (line), -45dB (mic)
SNR 80dB (line), 75dB (mic)
Frequency response 100Hz - 18kHz
Bluetooth version 5.0
Output power : rms 60W
Alarm output Fog, siren & alert generator
Weight 2.47kg
Dimensions 269 x 210 x 44mm
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

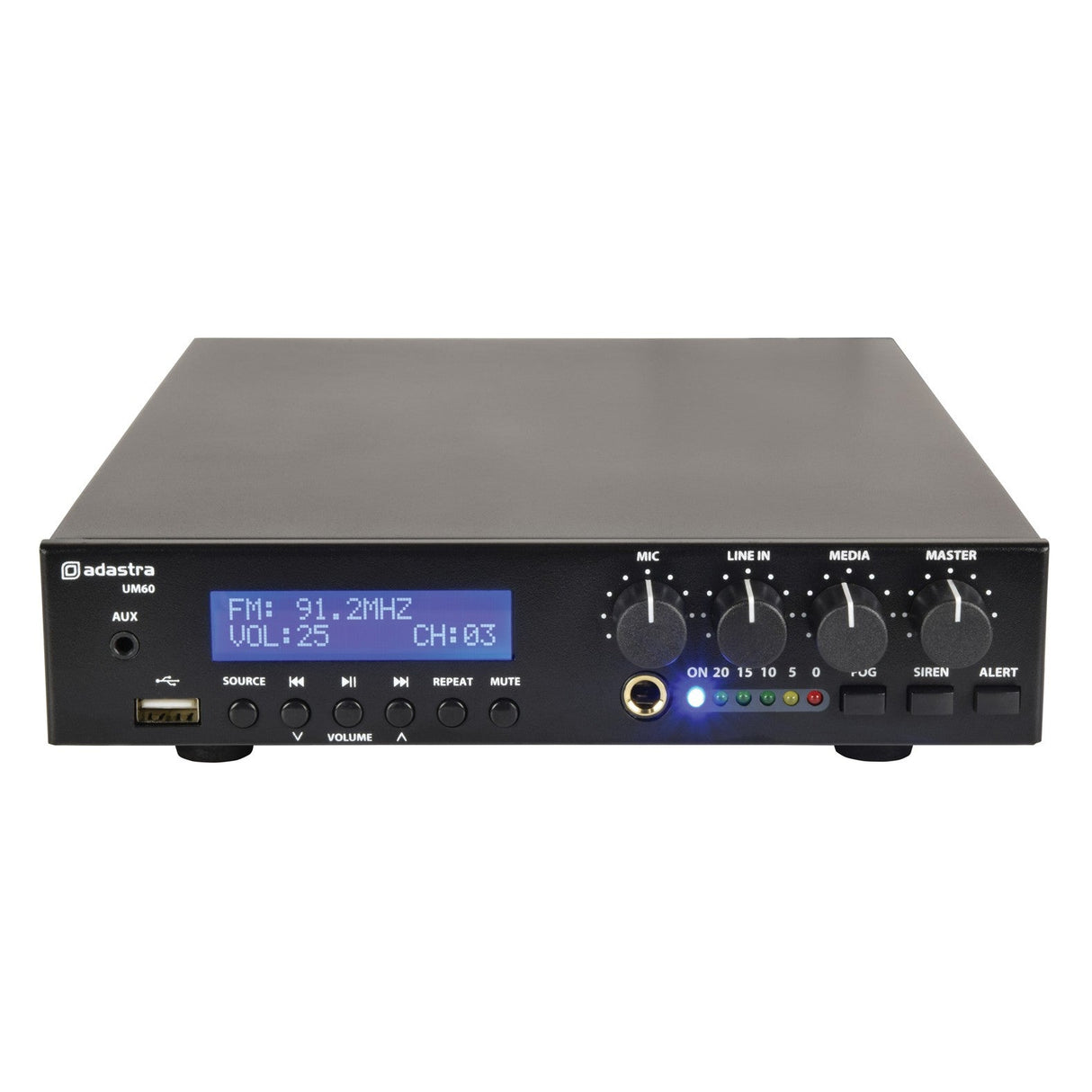

    Introducing the Adastra UM60 Compact 100V Mixer-Amplifier, featuring a sleek black design with a digital display that shows FM: 91.2MHz, VOL: 25, CH: 03. Ideal for PA installations, its front panel is equipped with knobs for mic, line in, media, and master volume controls along with buttons for power and source selection. The built-in Bluetooth offers enhanced versatile control options.
