Adastra UM30 Compact 100V Mixer-Amplifier

£14499
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

The Adastra UM30 Compact Mixer-Amplifier delivers reliable sound performance in a space-saving format. With an integrated USB/FM/BT audio player, it provides flexible playback options for background music and announcements. Its ultra-compact half-width 1U chassis is designed for small commercial or educational installations where space is at a premium.

Inputs include a mic jack, RCA line input, and 3.5mm aux input, each with independent volume controls plus a master output control. Output is routed to either 100V line or 8 Ohm speaker systems via screw terminals. With 30W RMS power, it is ideal for smaller setups while maintaining the same efficiency and reliability as larger units.

Equipped with 24V mute contacts for fire alarm integration and supplied with hardware for dual rack-mounting, the UM30 is both practical and versatile. Its programmable Bluetooth ID ensures secure wireless pairing, while the efficient class D amplifier keeps performance consistent.

  • Ultra compact form factor
  • Efficient class D amplifier design
  • Internal USB/FM/BT audio player
  • 100V line or 8 Ohms operation
  • Bluetooth with programmable ID
Specification
Power supply 170-264Vac, 50Hz (IEC) or 24Vdc
Amplifier : construction Class D + transformer output
Audio source Internal USB/FM/BT player
Inputs 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
Line output 2 x RCA (mono)
Speaker outputs Screw terminals - 100V / 8 Ohms / Com
DC power 24Vdc screw terminals
Mute 24V relay contacts
THD <0.4% @ 1kHz
Input impedance 1k Ohms (mic/line)
Input sensitivity -10dB (line), -45dB (mic)
SNR 80dB (line), 75dB (mic)
Frequency response 100Hz - 18kHz
Bluetooth version 5.0
Output power : rms 30W
Alarm output N/A
Weight 2.35kg
Dimensions 249 x 210 x 44mm
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

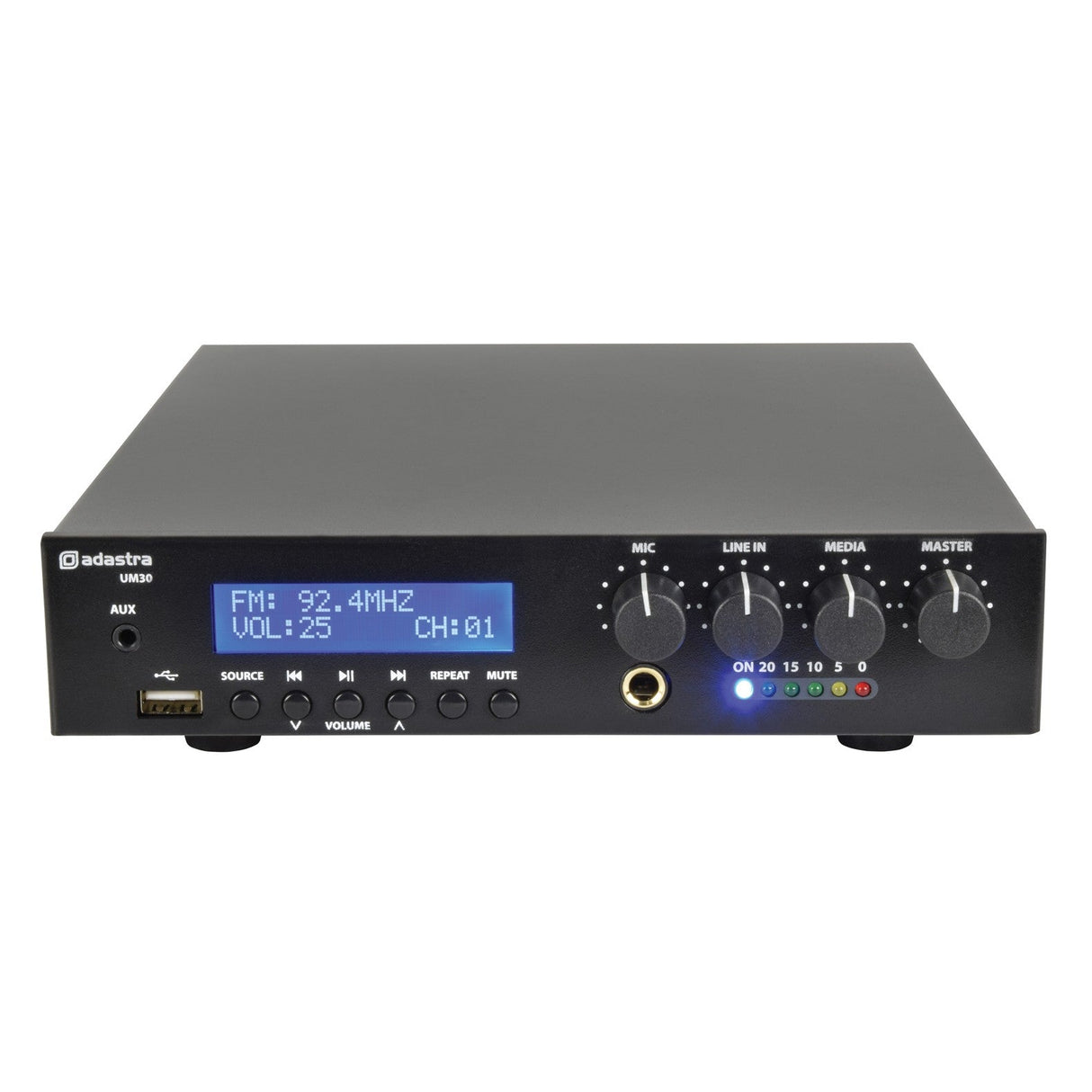

    The Adastra UM30 Compact 100V Mixer-Amplifier in black includes a digital display set to FM 92.4 MHz and volume level 25, and is designed with input knobs, a USB port for audio playback, an aux input, control buttons, LED indicators, and an integrated Bluetooth wireless receiver for versatile listening options.
