Adastra UA60 Compact 100V Mixer-Amplifier

£13299
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

100V mixer-amplifiers with a 5-input mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.

  • 24V fire alarm mute contacts
  • Supplied with hardware for rack-mounting 2 units
  • 5 input channels
  • 100V line or 8 Ohms operation
  • Switchable +20V phantom power CH1
Specification
Power supply 170-264Vac, 50Hz (IEC)
Amplifier : construction Class D + transformer output
Inputs Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
Line output 2 x RCA (mono)
Speaker output Euroblock terminals: 100V / 8 Ohms / Com
Mute 24V relay contacts
THD <0.4% @ 1kHz
Input impedance 1k Ohms (mic/line)
Input sensitivity -10dB (line), -45dB (mic)
SNR 80dB (line), 75dB (mic)
Frequency response 100Hz - 18kHz
Phantom power +20V CH1 (XLR or rear terminals)
Output power : rms 60W
Dimensions 269 x 210 x 44mm
Weight 2.47kg
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

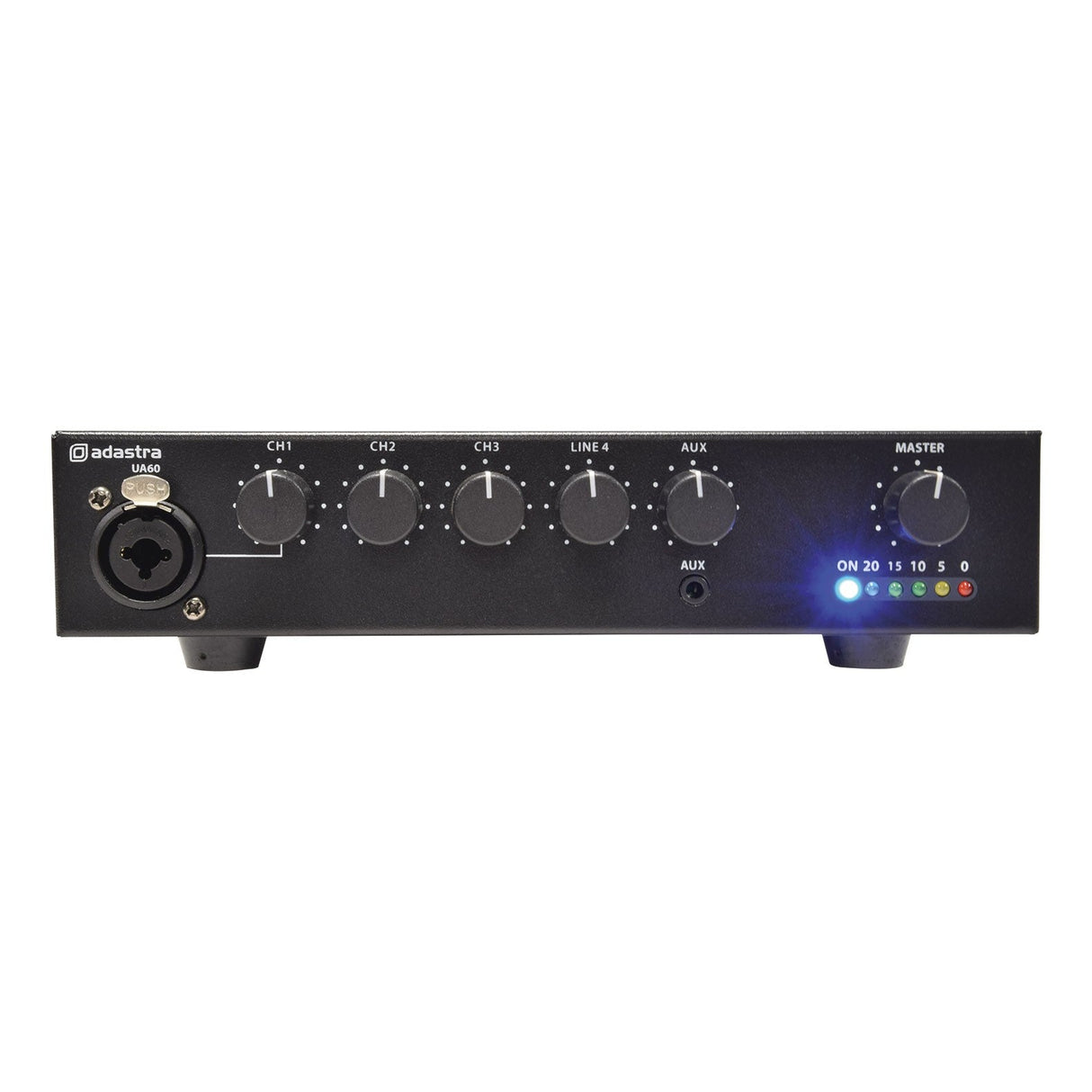

    The front view of the Adastra UA60 Compact 100V Mixer-Amplifier displays various control knobs labeled CH1, CH2, CH3, LINE 4, AUX, and MASTER. Specifically designed for PA installations, it includes an XLR input on the left and LED indicators on the right. This mixer-amplifier is ideal for efficient sound distribution over 100V line systems.
