Adastra UA30 Compact 100V Mixer-Amplifier

£10699
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

The Adastra UA30 Compact Mixer-Amplifier is designed for smaller PA installations where space-saving and reliable performance are key. Its half-width 1U design houses a 5-input mixer with three mic/line switchable inputs, an RCA line input, and a 3.5mm aux input. Each input has independent level controls, supported by master volume and tone adjustment for simple operation.

Delivering 30W RMS, the amplifier connects to either 100V line or 8 Ohm speaker systems through secure screw terminal outputs. Channel 1 supports switchable +20V phantom power, making it compatible with condenser microphones for clear and professional speech reinforcement.

Safety is built in with 24V fire alarm mute contacts, ensuring emergency announcements take priority. The UA30 is supplied with hardware for rack-mounting two units together or fixing under a desk or wall. Compact, efficient, and reliable, it is an excellent choice for small shops, offices, classrooms, and reception areas.

  • 24V fire alarm mute contacts
  • Supplied with hardware for rack-mounting 2 units
  • 5 input channels
  • 100V line or 8 Ohms operation
  • Switchable +20V phantom power CH1
Specification
Power supply 170-264Vac, 50Hz (IEC)
Amplifier : construction Class D + transformer output
Inputs Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
Line output 2 x RCA (mono)
Speaker output Euroblock terminals: 100V / 8 Ohms / Com
Mute 24V relay contacts
THD <0.4% @ 1kHz
Input impedance 1k Ohms (mic/line)
Input sensitivity -10dB (line), -45dB (mic)
SNR 80dB (line), 75dB (mic)
Frequency response 100Hz - 18kHz
Phantom power +20V CH1 (XLR or rear terminals)
Output power : rms 30W
Dimensions 249 x 210 x 44mm
Weight 2.35kg
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

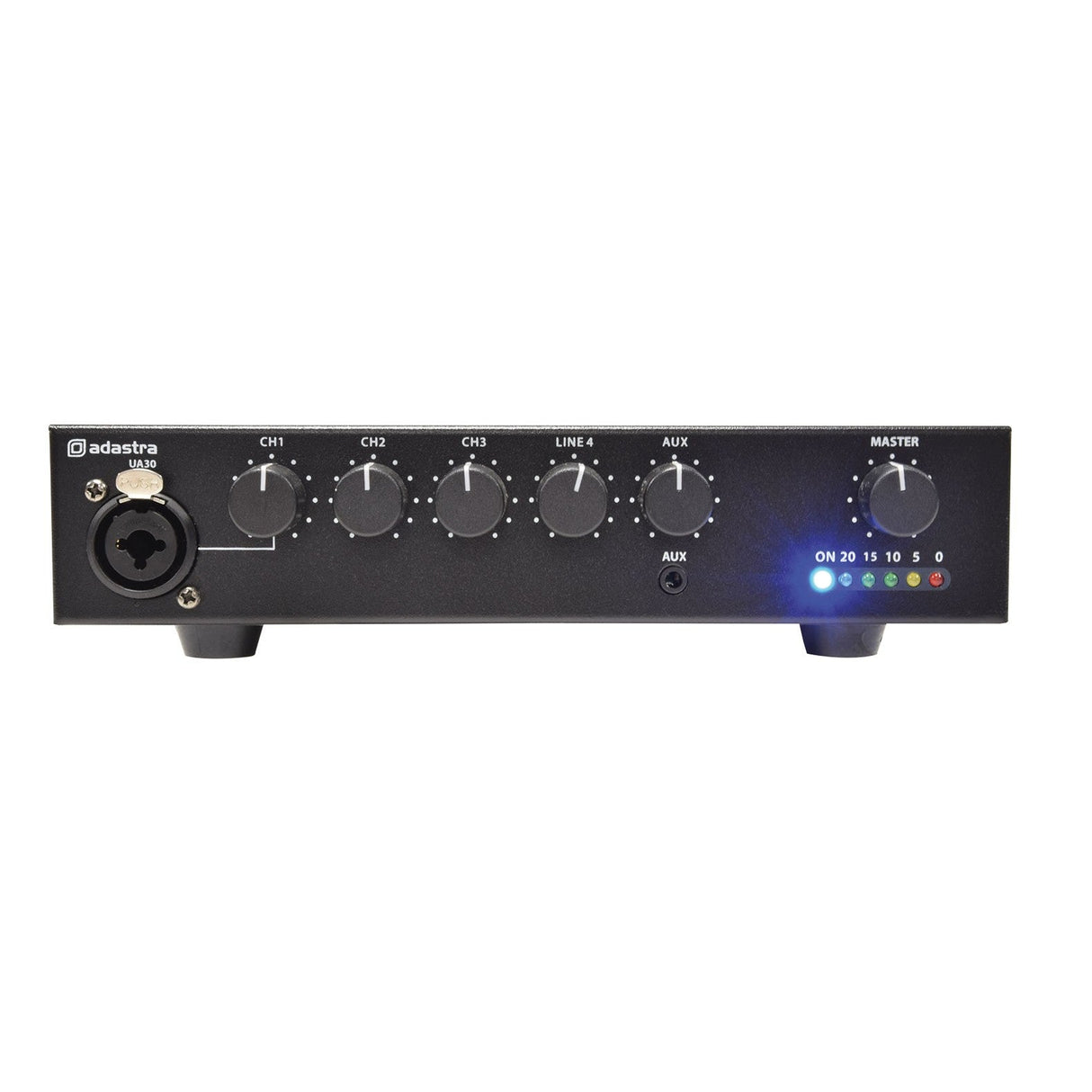

    Front view of the Adastra UA30 Compact 100V Mixer-Amplifier in black, showcasing control knobs labeled CH1, CH2, CH3, LINE 4, AUX, and MASTER. It includes mic/line inputs on the left and LED indicators on the right that display power levels ranging from 0 to 20—perfect for PA installations.
