Adastra RMS605 Amplifier 100V - 5 x 60W

£38399
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

Multi-channel 100V slave amplifier with independent outputs for 100V or 4-16 Ohm speakers. Each amplifier channel has its own independent line input, which can be switched to a global auxiliary, providing the option of the same input to several of the amplifier channels if required. A paging microphone input is provided for voice alerts and a 24V mute terminal can be connected to an alarm panel for emergency evacuation override. Class D circuit design and efficient toroidal transformers have enabled a design which fits into a 1U rack-mount housing. The RMS-series amplifiers can be applied as high power slave units or equally as a fully independent zoning system for a multi-room installation.

  • Outputs for 100V or 4-16 Ohm speakers
  • Separate channel inputs and optional global aux input
  • Paging microphone input with vox override
  • Independent high efficiency class-D amplifiers
  • Switchable +20V phantom power for paging microphone
  • 24V contacts for emergency muting
Specification
Power supply 170-264Vac, 50/60Hz (IEC)
Auxiliary input L+R RCA
Mic controls Gain, Bass, Treble & Vox (rear panel)
Output controls Level, Bass, Treble & Ch/Aux switch
Microphone input Balanced XLR (rear panel)
Phantom power +20V switchable (paging mic)
Emergency control 24V mute contacts (Euroblock terminal)
Power rms : 100V line 5 x 60W
Power rms : 4 Ohms 5 x 60W
Output connection 5 x 100V or 4 Ohm (Euroblock terminal)
Weight 8.17kg
Dimensions 482 x 330 x 42mm
Channel inputs 5 x L+R RCA or balanced terminal
Auxiliary output N/A
Fuse T2AL
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

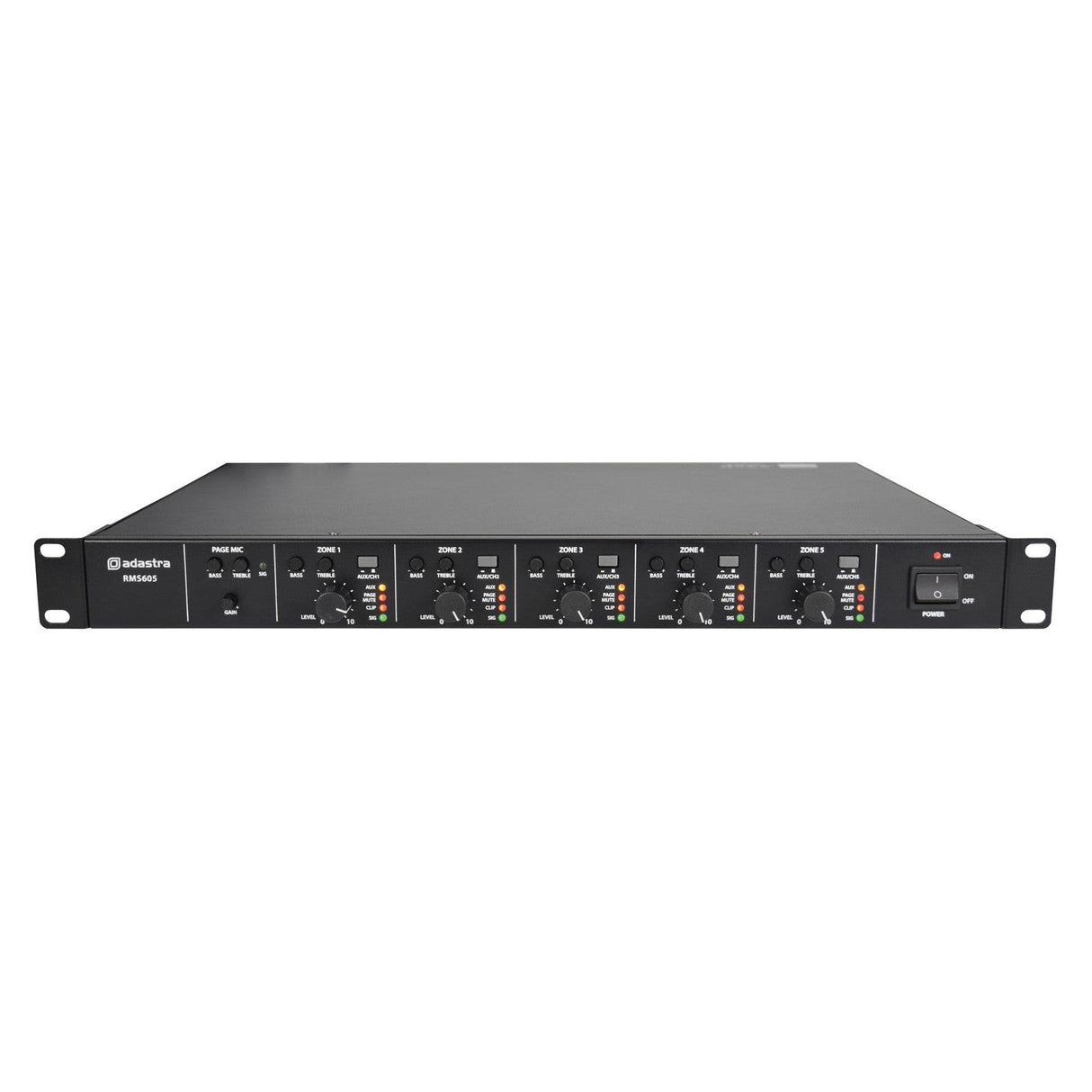

    The Adastra RMS605 Amplifier 100V - 5 x 60W is a black audio mixer engineered for rack mounting, featuring multiple knobs and LED indicators. It includes an independent zoning system, a power switch located on the right side, and clearly labeled controls for different audio channels.
