Adastra RMC120 Mixer-Amplifier 120W With CD/BT/USB/SD/DAB/FM

£34099
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

100V line mixer-amplifier with built-in multi-format media player. 5 input channels include a balanced XLR microphone input with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs. A powerful class AB amplifier section is paired with a digital switch-mode power supply and 100V transformer for reliable power delivery from an energy efficient power section. A built-in CD player provides audio playback alongside a USB/SD media player with an integral DAB+ and FM radio tuner. Additional Bluetooth® receiver enables pairing to a smartphone for wireless playback of stored tracks. Bass & Treble EQ and Master volume control the overall output, which can power either low impedance or 100V line speakers. A comprehensive solution for commercial sound installations.

  • 5 input channels
  • DAB+ and FM radio tuner
  • Slot feed CD player
  • Bluetooth connectivity
  • USB/SD mp3 player
  • 100V or 4-16 Ohms output
  • Supplied with 19" rack-mount ears
Specification
Power supply 170-264Vac, 50Hz (IEC)
DC power 24Vdc (screw terminals)
Power : rms 120Wrms (100V or 4 Ohms)
Inputs Mic XLR, 2 x mic/line jack, 2 x RCA line
Input sensitivity : mic 1 (balanced) -53dBV
Input impedance : mic 1 5k Ohms
Input sensitivity : line (unbalanced) -15dBV (-18.5dBV line 5)
Input impedance : inputs 2-5 1k Ohms
Line output RCA
Controls Mic1, mic/line2+3, line4+5 (USB), bass, treble, master volume
Speaker outputs 100V / 4-16 Ohms / COM terminals
Equaliser : bass 100Hz ±10dB
Equaliser : treble 10kHz ±10dB
Rear panel switches Mic/Line (2 + 3), Phantom, Vox
Phantom power +20V (MIC 1 input)
Bluetooth version 5.0
THD <1.0%
Fuse T3.15A
Dimensions 433 x 320 x 89mm
Weight 7kg
Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

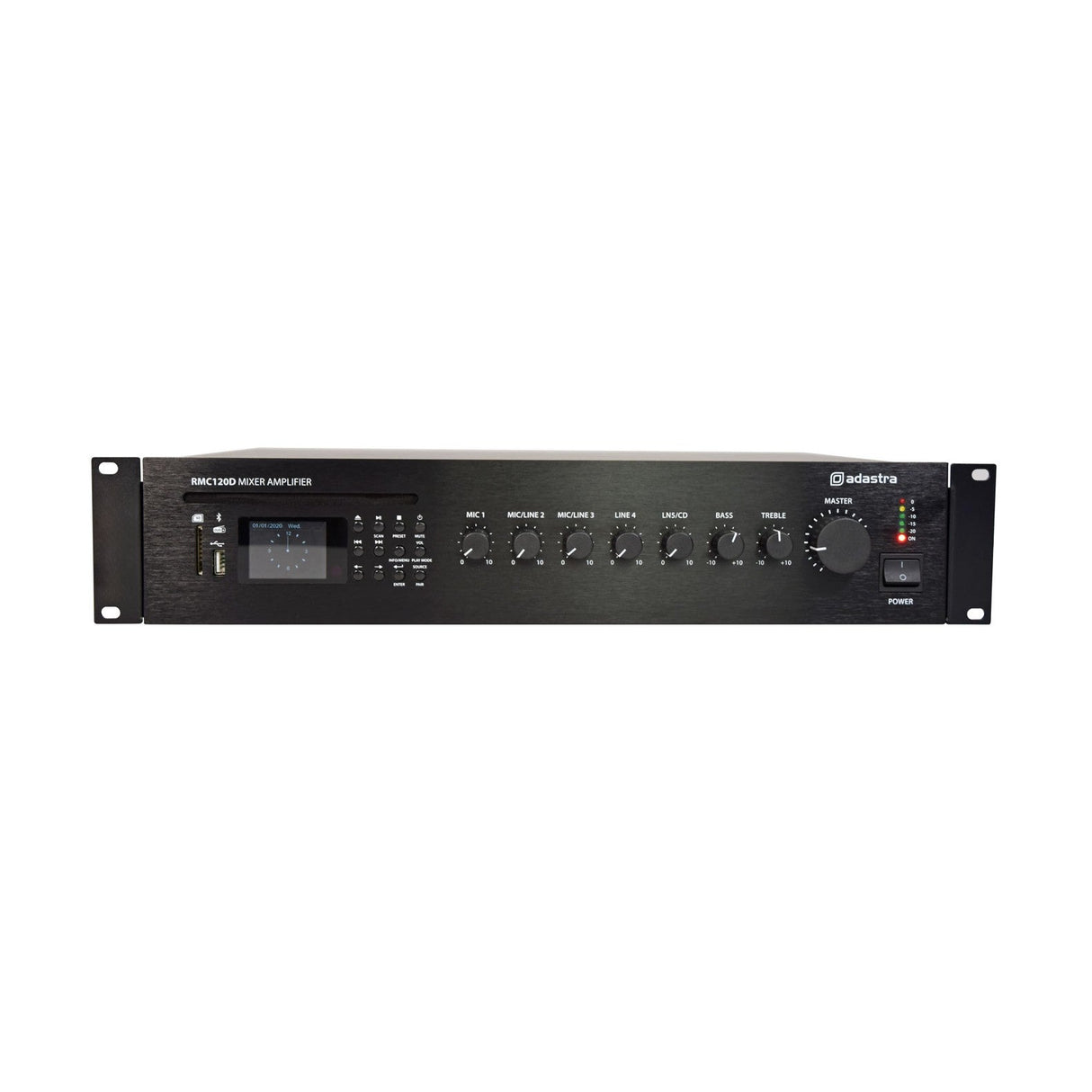

    The Adastra RMC120 Mixer-Amplifier, a sleek black 100V line unit, includes Bluetooth connectivity and offers a variety of control knobs and a digital display on the front panel. It features lights that elegantly indicate power and audio levels for seamless operation, and it is rack-mountable with 120W power, supporting CD, USB, SD, DAB/FM formats.
