Adastra RM60D Mixer-Amplifier 100V BT/DAB+

£19499
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

The Adastra RM60D Mixer-Amplifier is an efficient and versatile solution for smaller installations where dependable audio performance is required. Offering 60W RMS output, it supports both 100V line speakers and low-impedance systems down to 4 Ohms, making it suitable for a wide range of commercial setups.

The RM60D provides flexible input options, including an XLR with phantom power, two mic/line jack inputs, and RCA line connections. Onboard audio playback is available through its integrated media player, which features Bluetooth connectivity with a unique ID, a USB/SD player, and a DAB+/FM tuner. This makes it easy to stream music or play stored content without additional devices.

For announcements, the automatic voiceover function ensures microphone input 1 takes priority by lowering background levels. In critical situations, the 24V emergency mute input guarantees priority messages are always heard. With four switchable zone outputs and one unswitched channel, the RM60D delivers reliable audio distribution in compact spaces.

  • 4 switchable 100V outputs and 1 unswitched output
  • 2U 19" rack mountable (rack ears supplied)
  • XLR input with switchable +20V phantom power
  • 2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output
  • Switchable VOX voiceover feature
  • Bluetooth receiver with unique serial ID
  • USB/SD audio player
  • DAB+/FM radio tuner
  • Optional 4-16 Ohm output
  • 24V emergency mute contacts
  • Mains 230Vac or 24Vdc power option
Specification
Power supply 170-264Vac, 50Hz (IEC)
DC power 24Vdc (screw terminals)
Inputs Mic XLR, 2 x mic/line jack, 2 x RCA line
Input sensitivity : mic 1 (balanced) -53dBV
Input sensitivity : line (unbalanced) -15dBV (-18.5dBV line 5)
Input impedance : mic 1 5k Ohms
Input impedance : inputs 2-5 1k Ohms
Line output RCA
Controls Mic1, mic/line2+3, line4+5, bass, treble, master volume
Equaliser : bass 100Hz ±10dB
Equaliser : treble 10kHz ±10dB
Rear panel switches Phantom, Vox, Mic/Line (2 + 3)
Phantom power +20V (mic 1 XLR, switchable)
Audio source DAB+/FM tuner, USB/SD player, Bluetooth receiver
Emergency control 24V contacts - mute all except Mic.1 when triggered
Bluetooth version 5.0
THD <1.0%
Speaker outputs 4 switched + 1 non-switched 100V / 4-16 Ohms / COM
Output power : rms 60W
Dimensions 433 x 320 x 88mm
Weight 4.98kg
Fuse T2A
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

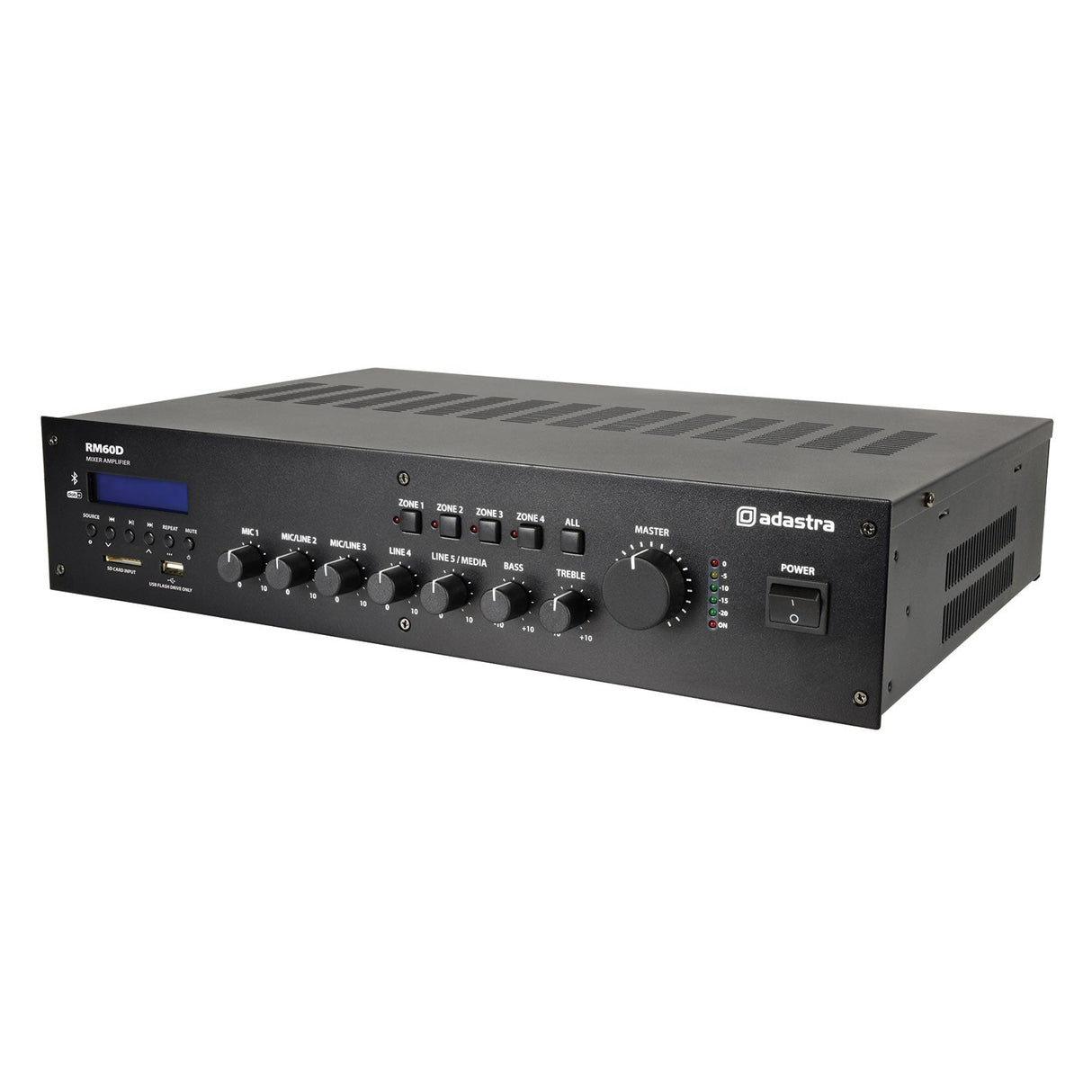

    The Adastra RM60D Mixer-Amplifier 100V BT/DAB+ is a black, rack-mountable audio amplifier featuring Bluetooth connectivity and multiple control knobs. It is equipped with two microphone inputs, zone selectors, and tone controls for bass and treble. Its front panel also includes a master volume knob and a digital display.
