Adastra RM406 Mixer-Amplifier 100V 6 x 40W + USB/SD/FM/BT

£47899
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

Zone mixer-amplifier with 6 x 40W class D power section for 100V or 4/8 Ohms speakers. Each zone can be monitored from the front panel via a headphone output with volume control. 3 mic/line inputs, 1 aux input and an integral USB/SD/FM player with Bluetooth receiver can be matrix switched to any of the 6 zones independently. Mic 1 channel has a variable override and each microphone input has switchable phantom power. A master chime with volume can be used for paging calls and alerts. Designed for multi-room systems requiring different audio sources.

  • Integral USB/SD/FM audio player
  • Bluetooth with programmable ID
  • 100V or 4/8 Ohms operation
  • 6 independent output zones
  • 3 mic/line and 1 auxiliary input
  • Mic priority and chime functions
  • Switchable +20V phantom power
  • 24V mute contacts
  • Monitor headphones output
Specification
Power supply 170-264Vac, 50Hz (IEC)
Power output 6 x 40W rms
Audio source USB/SD/FM/BT audio player
Amplifier : construction Class D + transformer outputs
Inputs 3 x mic/line (XLR/jack), auxiliary 2 x RCA
Zone outputs: line 6 x RCA (mono)
Zone outputs: speaker 6 x terminal outputs 100V / 8 Ohms / 4 Ohms / Com
Phantom power +20V switchable to each XLR
Monitor outputs 6.3mm stereo phones, 2 x RCA line
Mute +24V relay contacts
THD <0.76% @ 1kHz
Input impedance 1k Ohms (mic/line)
Input sensitivity -11dB (line), -46dB (mic)
SNR 84dB (line), 82dB (mic)
Bluetooth version 5.0
Frequency response 100Hz - 24kHz
Dimensions 433 x 89 x 302mm
Weight 11kg
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

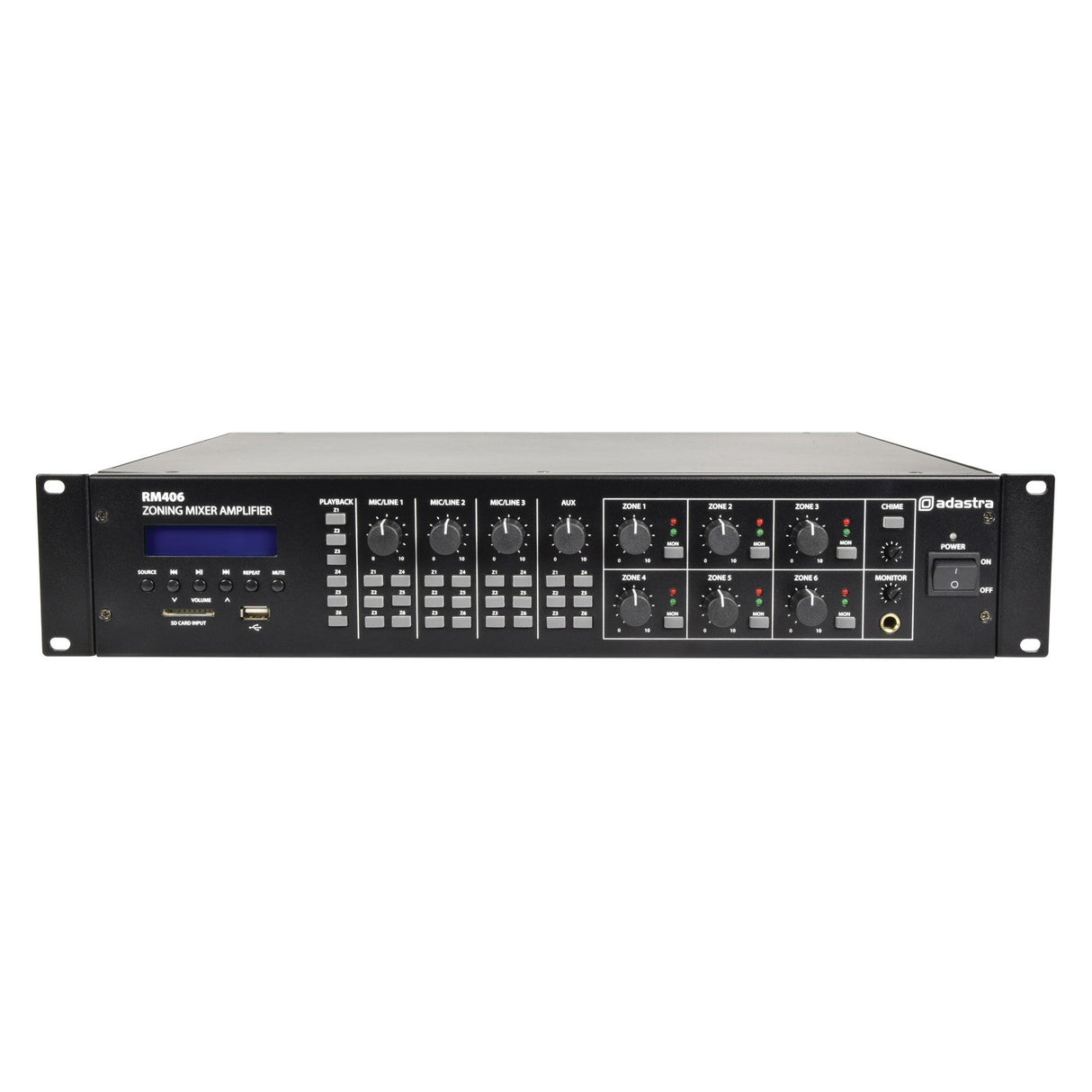

    Front view of the Adastra RM406 black mixer-amplifier, ideal for multi-room systems. It showcases various knobs, buttons, and input jacks, with the model number clearly displayed on the top left corner. Additionally, it comes equipped with a built-in Bluetooth receiver for seamless connectivity.
