Adastra RM360D Mixer-Amplifier 100V BT/DAB+

£40399
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

The Adastra RM360D is a powerful 5-channel rack-mountable mixer-amplifier, tailored for commercial sound installations that demand high performance and flexibility. With the ability to drive 100V line speakers or low-impedance systems down to 4 Ohms, it delivers versatile output for a wide range of setups.

Input options include XLR with switchable phantom power, dual mic/line jacks, and RCA line inputs, giving installers plenty of connection choices. Its inbuilt media player offers Bluetooth with unique ID pairing, USB and SD playback, plus a DAB+/FM tuner, all controlled from the front panel for convenient access.

The RM360D also features a smart voiceover function that automatically dips background audio when a signal is detected on mic input 1, keeping announcements clear. Emergency 24V mute contacts provide further control by prioritizing safety messages. With four independent zone outputs plus a dedicated “always on” channel, this amplifier offers both flexibility and reliability for multi-area installations.

  • 4 switchable 100V outputs and 1 unswitched output
  • 2U 19" rack mountable (rack ears supplied)
  • XLR input with switchable +20V phantom power
  • 2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output
  • Switchable VOX voiceover feature
  • Bluetooth receiver with unique serial ID
  • USB/SD audio player
  • DAB+/FM radio tuner
  • Optional 4-16 Ohm output
  • 24V emergency mute contacts
  • Mains 230Vac or 24Vdc power option
Specification
Power supply 170-264Vac, 50Hz (IEC)
DC power 24Vdc (screw terminals)
Inputs Mic XLR, 2 x mic/line jack, 2 x RCA line
Input sensitivity : mic 1 (balanced) -53dBV
Input sensitivity : line (unbalanced) -15dBV (-18.5dBV line 5)
Input impedance : mic 1 5k Ohms
Input impedance : inputs 2-5 1k Ohms
Line output RCA
Controls Mic1, mic/line2+3, line4+5, bass, treble, master volume
Equaliser : bass 100Hz ±10dB
Equaliser : treble 10kHz ±10dB
Rear panel switches Phantom, Vox, Mic/Line (2 + 3)
Phantom power +20V (mic 1 XLR, switchable)
Audio source DAB+/FM tuner, USB/SD player, Bluetooth receiver
Emergency control 24V contacts - mute all except Mic.1 when triggered
Bluetooth version 5.0
THD <1.0%
Speaker outputs 4 switched + 1 non-switched 100V / 4-16 Ohms / COM
Output power : rms 360W
Dimensions 433 x 410 x 88mm
Weight 9.14kg
Fuse T5A
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

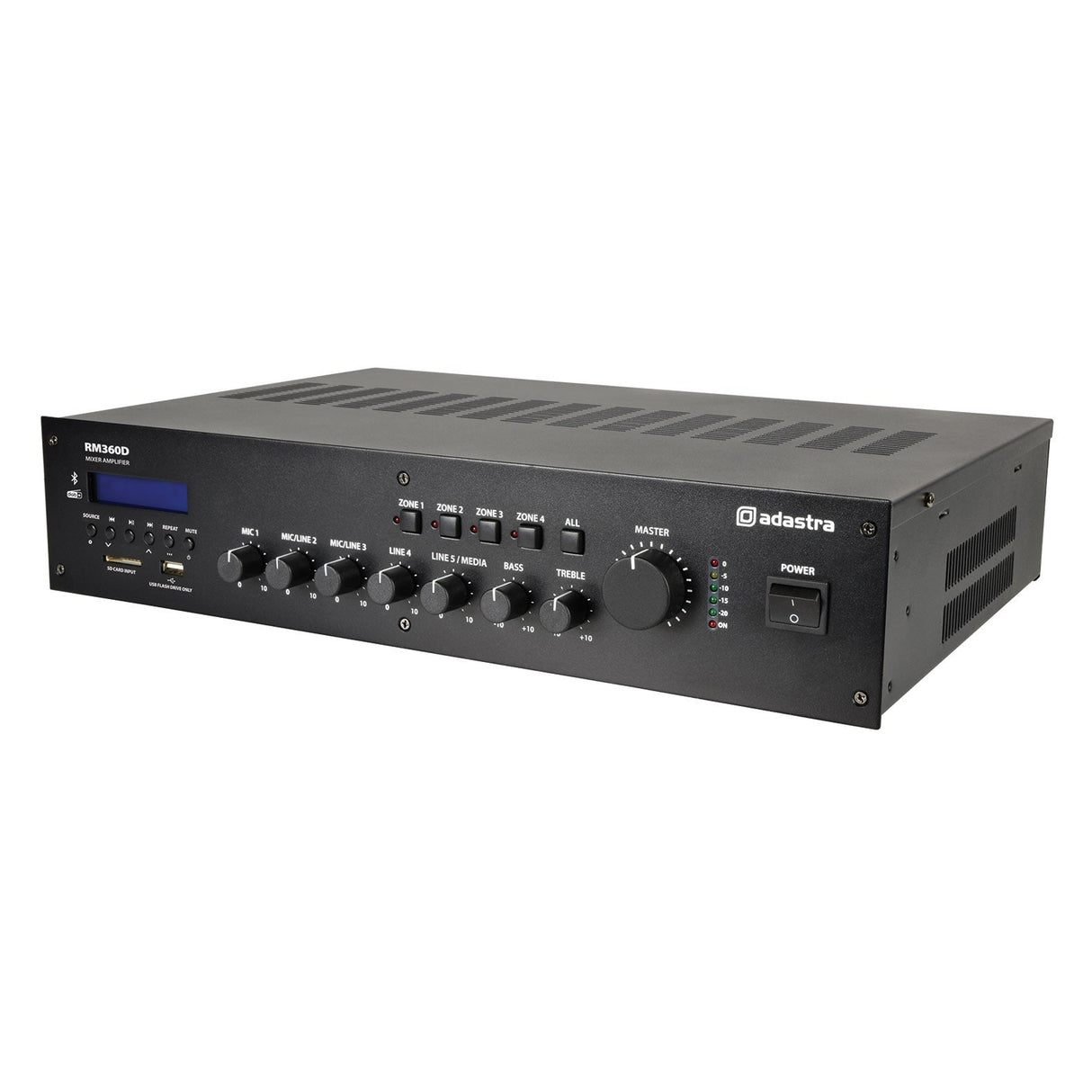

    Image of a black Adastra RM360D Mixer-Amplifier 100V BT/DAB+ showcasing Bluetooth connectivity, equipped with various control knobs and buttons on the front panel. It features controls for microphone, line inputs, bass, treble, and a digital display, all set against a white background.
