Adastra RM240D Mixer-Amplifier 100V BT/DAB+

£29099
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

The Adastra RM240D Mixer-Amplifier is designed for professional audio distribution in commercial spaces, combining versatile inputs with robust performance. Capable of powering both 100V line systems and standard speakers down to 4 Ohms, it offers installation flexibility for a wide range of environments.

Connectivity includes an XLR mic input with switchable phantom power, additional mic/line jacks, and RCA inputs and outputs. Built-in audio sources include Bluetooth streaming with unique device ID, a USB/SD player, and a DAB+/FM tuner, all managed by the onboard media player. These features make it easy to deliver music, announcements, or alerts without the need for external devices.

For clarity in public address, the switchable voiceover feature automatically lowers background audio when mic input 1 is in use. A 24V emergency mute input ensures vital announcements override all sources. Four switchable zone outputs plus one unswitched output allow tailored distribution to multiple areas, giving installers reliable control in complex setups.

  • 4 switchable 100V outputs and 1 unswitched output
  • 2U 19" rack mountable (rack ears supplied)
  • XLR input with switchable +20V phantom power
  • 2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output
  • Switchable VOX voiceover feature
  • Bluetooth receiver with unique serial ID
  • USB/SD audio player
  • DAB+/FM radio tuner
  • Optional 4-16 Ohm output
  • 24V emergency mute contacts
  • Mains 230Vac or 24Vdc power option
Specification
Power supply 170-264Vac, 50Hz (IEC)
DC power 24Vdc (screw terminals)
Inputs Mic XLR, 2 x mic/line jack, 2 x RCA line
Input sensitivity : mic 1 (balanced) -53dBV
Input sensitivity : line (unbalanced) -15dBV (-18.5dBV line 5)
Input impedance : mic 1 5k Ohms
Input impedance : inputs 2-5 1k Ohms
Line output RCA
Controls Mic1, mic/line2+3, line4+5, bass, treble, master volume
Equaliser : bass 100Hz ±10dB
Equaliser : treble 10kHz ±10dB
Rear panel switches Phantom, Vox, Mic/Line (2 + 3)
Phantom power +20V (mic 1 XLR, switchable)
Audio source DAB+/FM tuner, USB/SD player, Bluetooth receiver
Emergency control 24V contacts - mute all except Mic.1 when triggered
Bluetooth version 5.0
THD <1.0%
Speaker outputs 4 switched + 1 non-switched 100V / 4-16 Ohms / COM
Output power : rms 240W
Dimensions 433 x 320 x 88mm
Weight 7.37kg
Fuse T5A
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

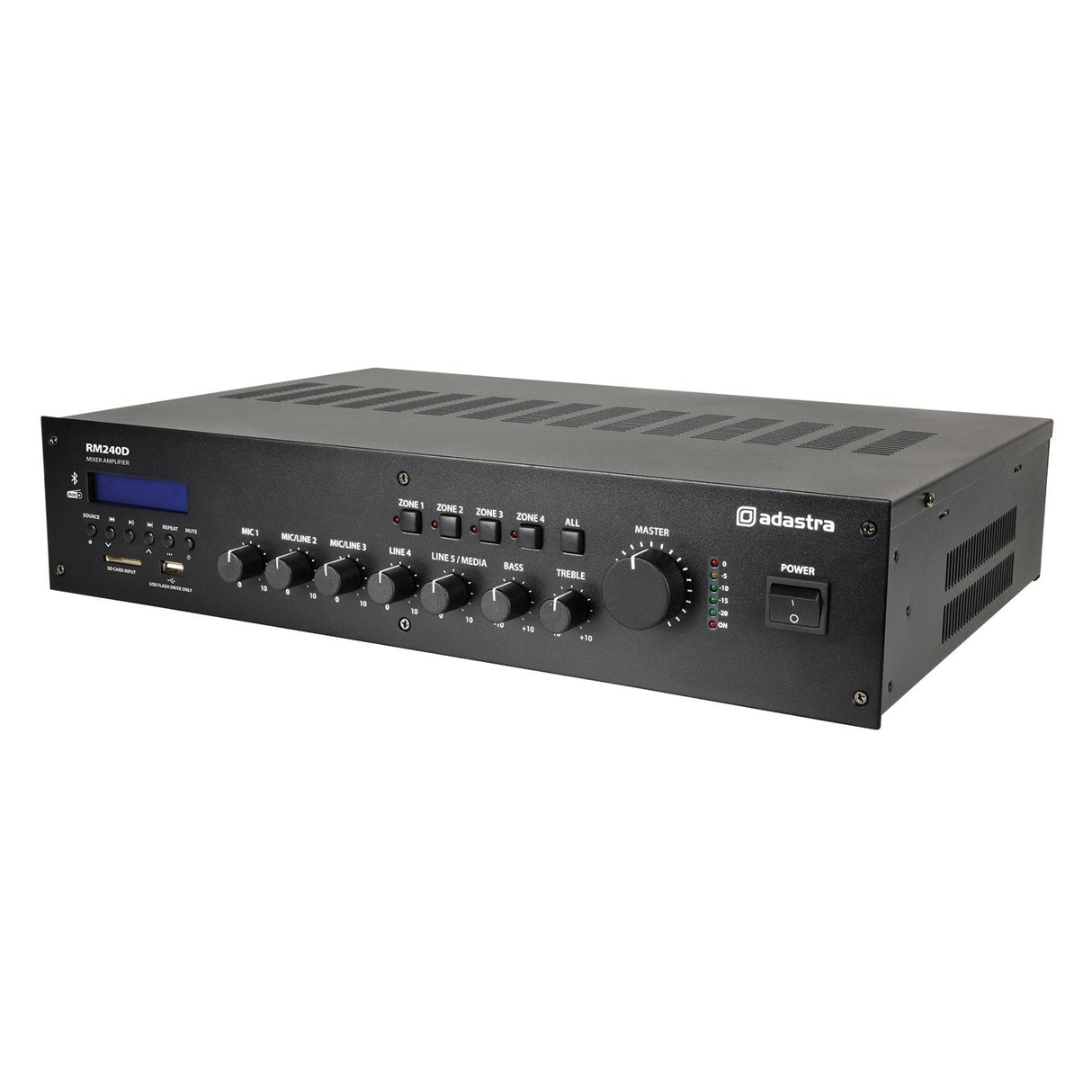

    The Adastra RM240D Mixer-Amplifier 100V BT/DAB+ is designed for commercial sound installations and features multiple control knobs for adjusting microphone and line inputs, bass, and treble. It also provides Bluetooth connectivity, a blue digital display, and an illuminated power button on the right side.
