Adastra RM120D Mixer-Amplifier 100V BT/DAB+

£24199
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

The Adastra RM120D is a compact yet highly capable mixer-amplifier built for commercial sound applications requiring clear audio and dependable performance. Delivering 120W RMS output, it drives both 100V line systems and low-impedance speakers down to 4 Ohms, making it adaptable for different installations.

This amplifier includes a wide range of inputs: XLR with switchable phantom power, two mic/line jacks, and twin RCA line inputs, plus an RCA line output for expansion. Integrated sources such as Bluetooth, a USB/SD audio player, and a DAB+/FM tuner give users a flexible choice of playback options directly from the front panel.

Designed for speech clarity, the voiceover function reduces background music when mic input 1 is active, while a 24V emergency mute ensures safety announcements are always heard. Four independent zone outputs plus one unswitched output allow sound to be distributed efficiently across multiple areas, giving installers greater control over system design.

  • 4 switchable 100V outputs and 1 unswitched output
  • 2U 19" rack mountable (rack ears supplied)
  • XLR input with switchable +20V phantom power
  • 2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output
  • Switchable VOX voiceover feature
  • Bluetooth receiver with unique serial ID
  • USB/SD audio player
  • DAB+/FM radio tuner
  • Optional 4-16 Ohm output
  • 24V emergency mute contacts
  • Mains 230Vac or 24Vdc power option
Specification
Power supply 170-264Vac, 50Hz (IEC)
DC power 24Vdc (screw terminals)
Inputs Mic XLR, 2 x mic/line jack, 2 x RCA line
Input sensitivity : mic 1 (balanced) -53dBV
Input sensitivity : line (unbalanced) -15dBV (-18.5dBV line 5)
Input impedance : mic 1 5k Ohms
Input impedance : inputs 2-5 1k Ohms
Line output RCA
Controls Mic1, mic/line2+3, line4+5, bass, treble, master volume
Equaliser : bass 100Hz ±10dB
Equaliser : treble 10kHz ±10dB
Rear panel switches Phantom, Vox, Mic/Line (2 + 3)
Phantom power +20V (mic 1 XLR, switchable)
Audio source DAB+/FM tuner, USB/SD player, Bluetooth receiver
Emergency control 24V contacts - mute all except Mic.1 when triggered
Bluetooth version 5.0
THD <1.0%
Speaker outputs 4 switched + 1 non-switched 100V / 4-16 Ohms / COM
Output power : rms 120W
Dimensions 433 x 320 x 88mm
Weight 6.36kg
Fuse T3.15A
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

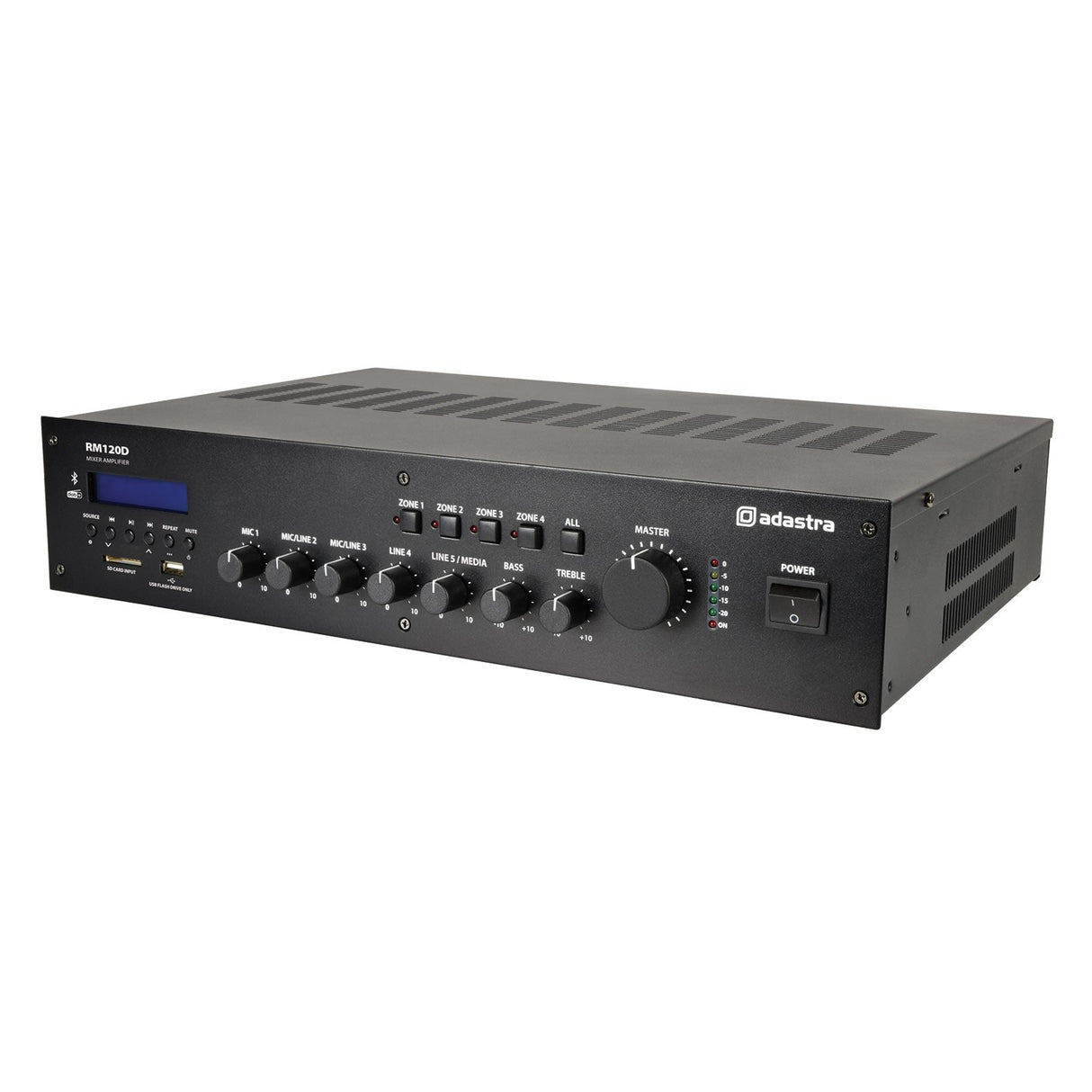

    The Adastra RM120D Mixer-Amplifier 100V BT/DAB+ is a black unit with multiple front panel knobs, buttons, input options, Bluetooth connectivity, a digital display, and a right-side power button, ideal for commercial sound installations.
