Adastra MM240 Mixer-Amplifier 2 x 120W

£26999
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

Compact 1U mixer-amp featuring a built-in media player with DAB+ and Bluetooth receiver. 3 mono inputs connect via XLR microphone or line input (switchable). Each of these inputs has switchable +20V phantom power for use with condenser microphones or D.I. boxes and channel 1 has a variable priority function. Two stereo auxiliary line inputs are provided on RCA connectors with a stereo line output. Media player operating modes include 3.5mm Aux input, USB audio player, DAB+/FM radio tuner and Bluetooth receiver for playback from a smart phone or tablet. Main left and right speaker outputs are connected using standard Speakon leads. Connect 2 or 4 speakers for a complete music and voice installation or mobile PA system for functions, conferences and fitness classes.

  • DAB+/FM radio tuner
  • Bluetooth receiver with unique serial ID
  • USB audio player
  • Switchable +20V phantom power
  • Variable priority muting for channel 1
  • 24V emergency mute contacts
Specification
Power supply 100-240Vac, 50/60Hz (IEC)
Fuse T3.15A
Inputs : Mic/Line 3 x XLR (bal/unbal)
Inputs : Aux 2 x L+R RCA
Input : line 3.5mm jack to media player
Audio source DAB+/FM tuner, USB player, Bluetooth receiver
Line output L+R RCA
Speaker outputs L+R SPK connector
Emergency control 24V contacts mute all except channel 1
Phantom power +20V (switchable channels 1-3)
Controls Media, 3 x Mic/Line, 2 x Aux, Treble, Bass, Master level
Rear panel controls Priority muting level, mic/line and phantom DIP switches
Input impedance 2.2k Ohms (mic/line), 10k Ohms (aux)
Frequency response : mic 20Hz - 18kHz
Frequency response : line 14Hz - 20kHz
Frequency response : aux 10Hz - 23kHz
Input sensitivity : mic/line -45dBV
Input sensitivity : aux/line -10dBV
Signal to noise ratio : mic 55dB
Signal to noise ratio : aux/line 60dB
Output power : 4 Ohms 2 x 120Wrms
Dimensions 482 x
Output power rms @ 4 Ohms 2 x 120W
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

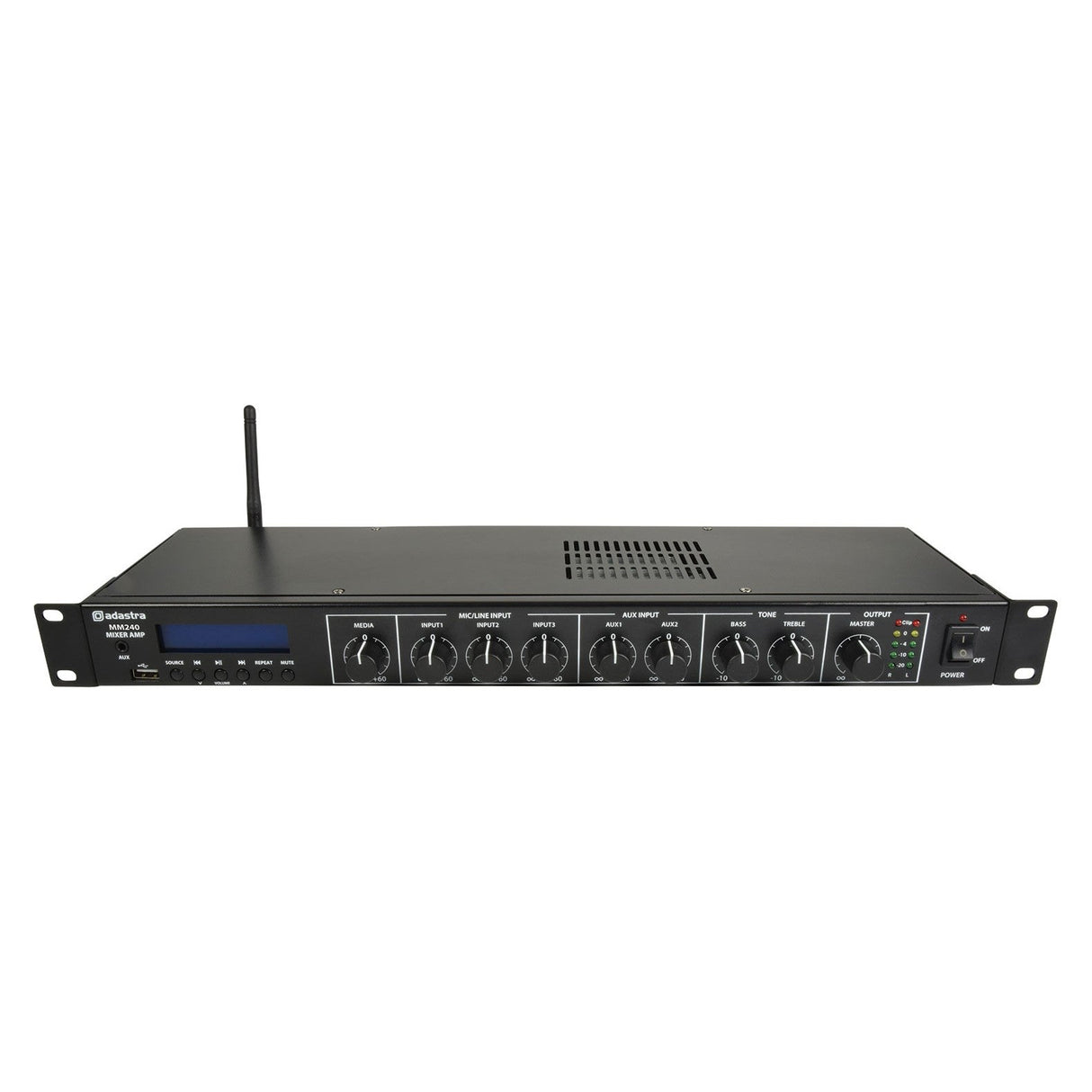

    The Adastra MM240 Mixer-Amplifier 2 x 120W, encased in black, integrates a DAB+ radio tuner and Bluetooth receiver. It boasts a digital display, multiple control knobs, and an antenna positioned on the left side. The front panel provides clearly labeled input and output options for straightforward adjustments.
