Adastra AT6 Volume Attenuator + A/B Switcher 100V 6 x 30W

£10599
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

Connect an AT6 to one or two 100V amplifiers to provide a 6-zone volume and source solution for multi-room installations. Housed in a 1U rackmount enclosure, the AT6 has six output channels, which can feed up to 30W to one or more 100V speakers. Each channel has a rotary volume switch, on/off switch and an A/B source switch. When connecting 2 amplifier outputs to the AT6, one amplifier becomes input A and the other input B, so that each channel can have an independent choice of audio source and output level. 24V terminals can be connected to an emergency control panel for global muting. A completely passive and cost-effective add-on to convert single output amplifiers into a flexible zoning system.

  • Choice of 2 amplifier sources to each zone
  • Rotary output volume switch for each zone
  • Passive operation, no power supply required
  • 1U 19" rack-mountable
Specification
Power handling 30W max. per output zone
Channel controls 11 position volume attenuator, A/B source switch, On/Off switch
Emergency control 24V mute terminals
Connections IN A + B, OUT 1-6, 24V MUTE (Euroblock screw terminals)
Dimensions 482 x 160 x 43mm
Weight 2.39kg
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

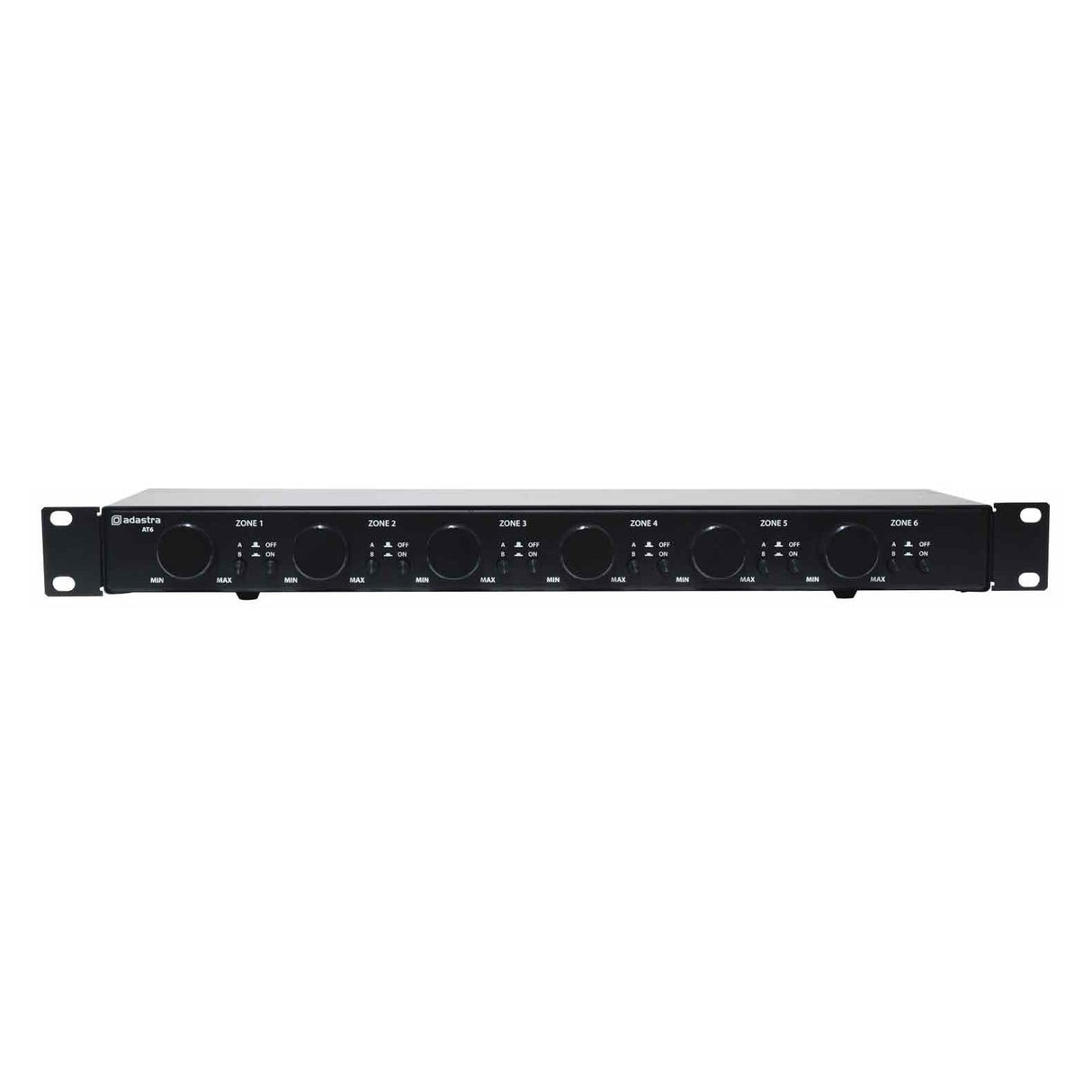

    Front view of the Adastra AT6 Volume Attenuator + A/B Switcher 100V 6 x 30W, a black audio rack-mountable device perfect for multi-room installations. It features a flexible zoning system with control knobs labeled ZONE 1 to ZONE 6, each having a button beneath. The device also includes rack ears for easy mounting.
