Adastra A4 Dual Stereo Amplifier 4 x 200W

£21699
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

Fully featured PA amplifier with 2 independent stereo zone outputs and mixer section for 2 microphones and a stereo audio source. An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card. It also has a Bluetooth receiver and FM radio tuner. A rotary switch for each output zone selects the stereo playback audio from a choice of 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Mic inputs 1 and 2 are live to both output zones at all times. 2 pairs of speaker connections on the rear panel are via 4mm binding posts, which can drive up to 2 x 8 Ohm speakers on each of the 4 channels. Designed to offer installers a comprehensive dual zone PA for bars, restaurants and function rooms.

  • Independent stereo playback to 2 separate zones
  • Media player with USB/SD playback
  • Bluetooth receiver
  • FM radio tuner with external aerial connection
Specification
Power supply 230Vac, 50Hz (IEC)
Amplifier : construction Class D
Microphone inputs 2 x 6.3mm jack (mono)
Auxiliary input 3.5mm stereo jack
Line inputs Line 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
Audio source USB/SD mp3 playback, FM tuner, BT receiver
Antenna connection F type (FM tuner)
Input controls Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
Line output 4 x RCA
Speaker outputs 4mm binding posts (4 channels)
Output controls 2 x source select, 2 xBass, 2 xTreble, Ch1, Ch2, Ch3, Ch4
Protection Thermal, over-current, over-voltage, short-circuit
Dimensions 482 x 260 x 88mm
Frequency response 20Hz - 20kHz ±0.5dB
Input sensitivity : line 0.775Vrms
Input sensitivity : aux 0.480Vrms
Input impedance 20k Ohms (balanced), 10k Ohms (unbalanced)
Dynamic range 92dB
THD +N <0.1%
Bluetooth version 2.3
Output power @ 4 Ohms 4 x 200W
Output power @ 8 Ohms 4 x 100W
Weight 5.98kg
Fuse T5A, 250V
Downloads

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

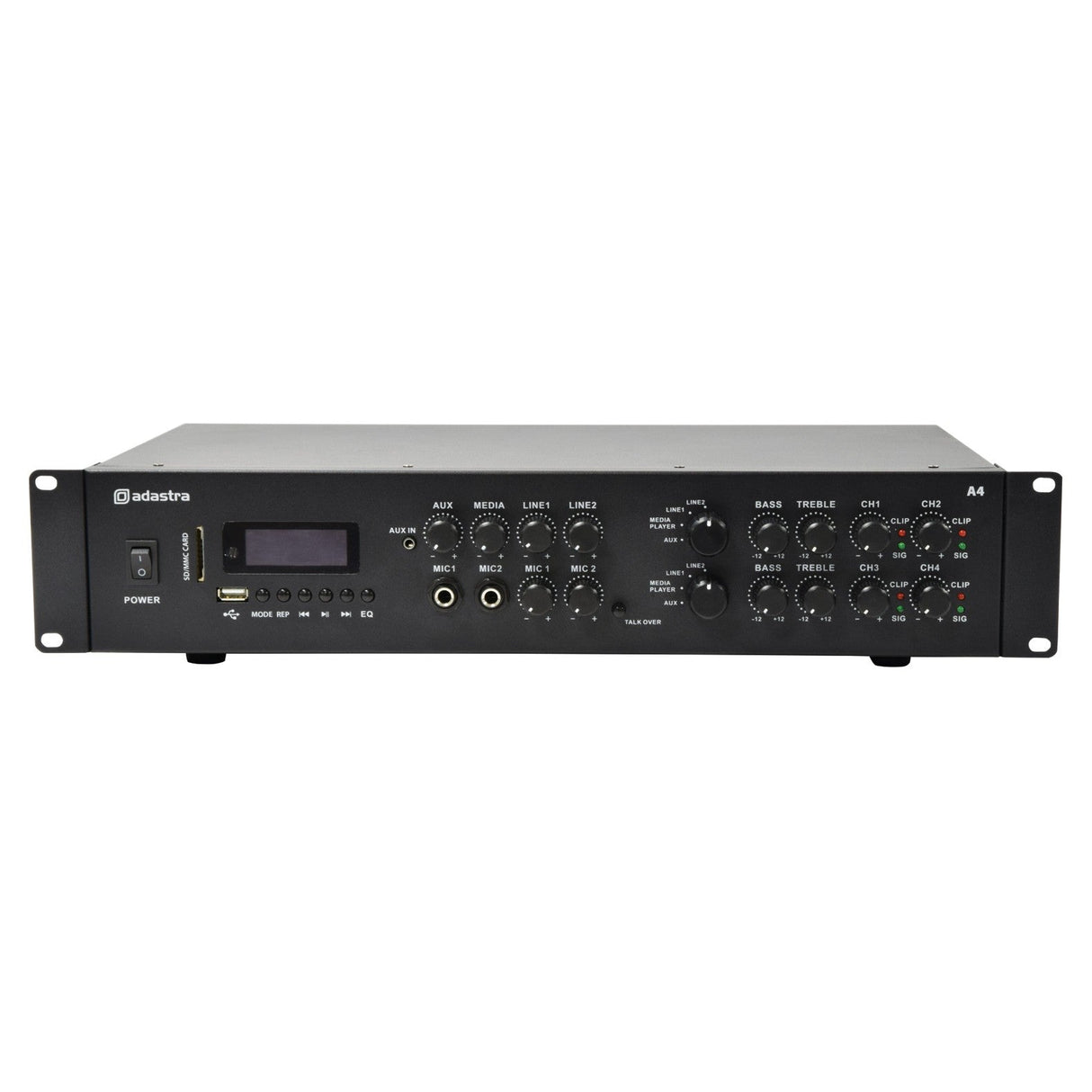

    Front view of an Adastra A4 Dual Stereo Amplifier 4 x 200W with a digital display and power button. It features multiple control knobs for volume, bass, treble, and channel inputs, along with ports for auxiliary, media player, and microphone connections. This PA amplifier includes a Bluetooth receiver.
