Adastra A22 Compact Stereo PA Amplifier

£6399
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Digital stereo PA amplifier with integral media player in a compact housing. Class-D amplifier section can deliver up to 2 x 55W max. output for background music with a microphone input for announcements or alerts. The media player section can select between USB / microSD mp3 player, FM tuner, Bluetooth receiver, 2 stereo line inputs (rear panel RCA) and another line input on the front panel (3.5mm). Playback can be controlled from the front panel or by the supplied I.R. remote control. Four mounting brackets are provided which enable the A22 to be fitted under a counter top or against a wall for discreet installation. Two A22 units may be mounted side-by-side into a 1U rack space, which can serve smaller peripheral zones in a larger PA installation. Combine with 2 or 4 speaker units for a truly space-saving sound system with comprehensive and easy-to-use functions.

  • Supplied with I.R. remote control
  • Supplied with 4 rotatable mounting brackets
  • Compact and easy-to-use control panel
  • Bluetooth receiver
  • FM tuner
  • USB / microSD mp3 player
  • Microphone input with separate volume control
Specification
Power supply 230Vac, 50Hz (IEC)
Speaker : impedance 4 - 8 Ohms (each channel)
Output power : 8 Ohms 2 x 25W rms / 2 x 40W max. (@ 1kHz 10% THD)
Output power : 4 Ohms 2 x 35W rms / 2 x 55W max. (@ 1kHz 10% THD)
Inputs : Line Aux 1 (3.5mm), Aux 2 (L+R RCA), Aux 3 (L+R RCA)
Input : mic 6.3mm jack
Controls Mic Volume, Treble, Bass, Music Volume
Audio source USB/microSD player, FM tuner, Bluetooth
Dimensions 215 x 180 x 43mm
Weight 820g
Antenna connection F-type (FM tuner)
Downloads

Product Manual

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

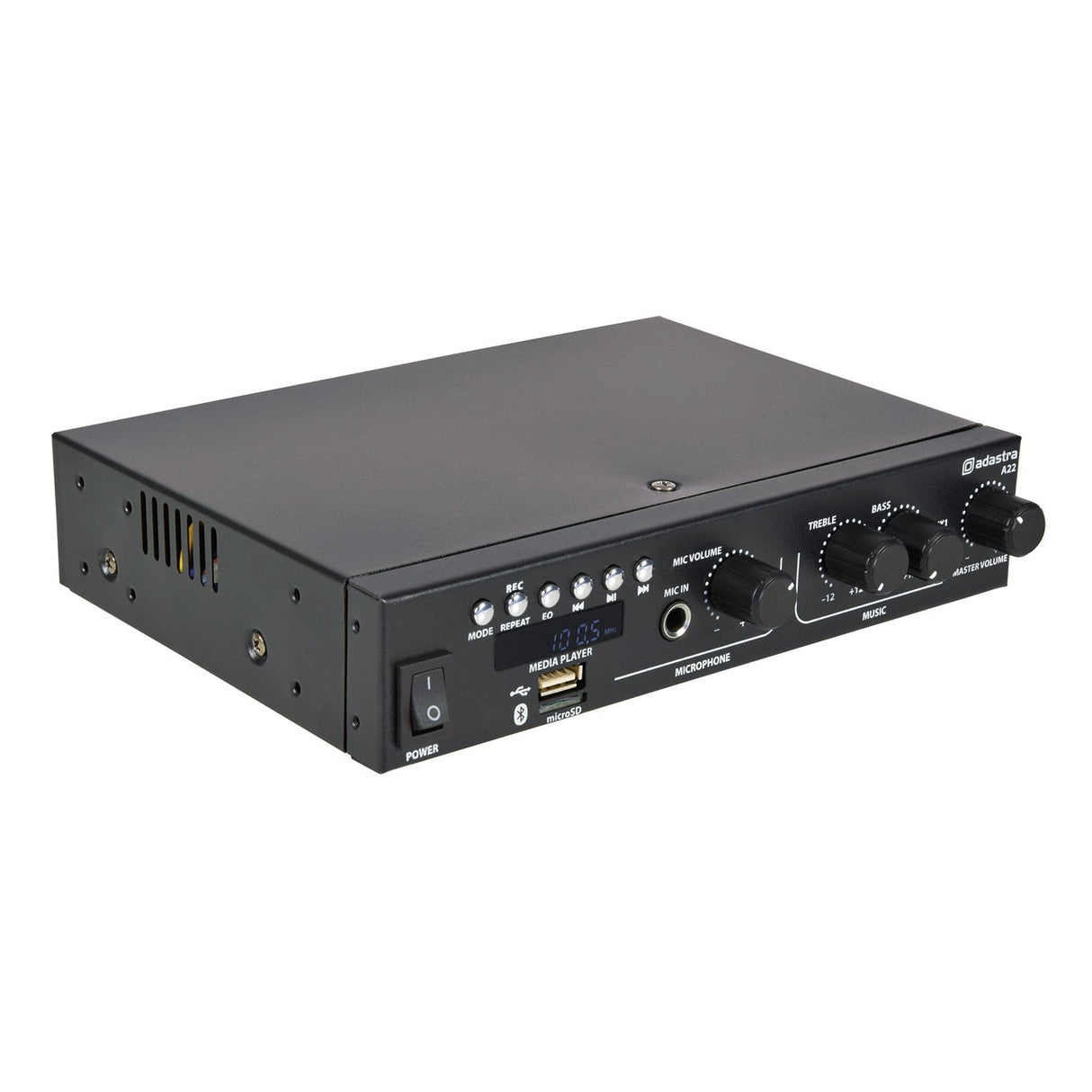

    The Adastra A22 Compact Stereo PA Amplifier is a sleek black device, featuring multiple control knobs, buttons, and ports on the front panel. It includes a digital display, input jacks for microphone and auxiliary connections, as well as a power switch. This compact rectangular design also incorporates a Bluetooth receiver for seamless connectivity.
