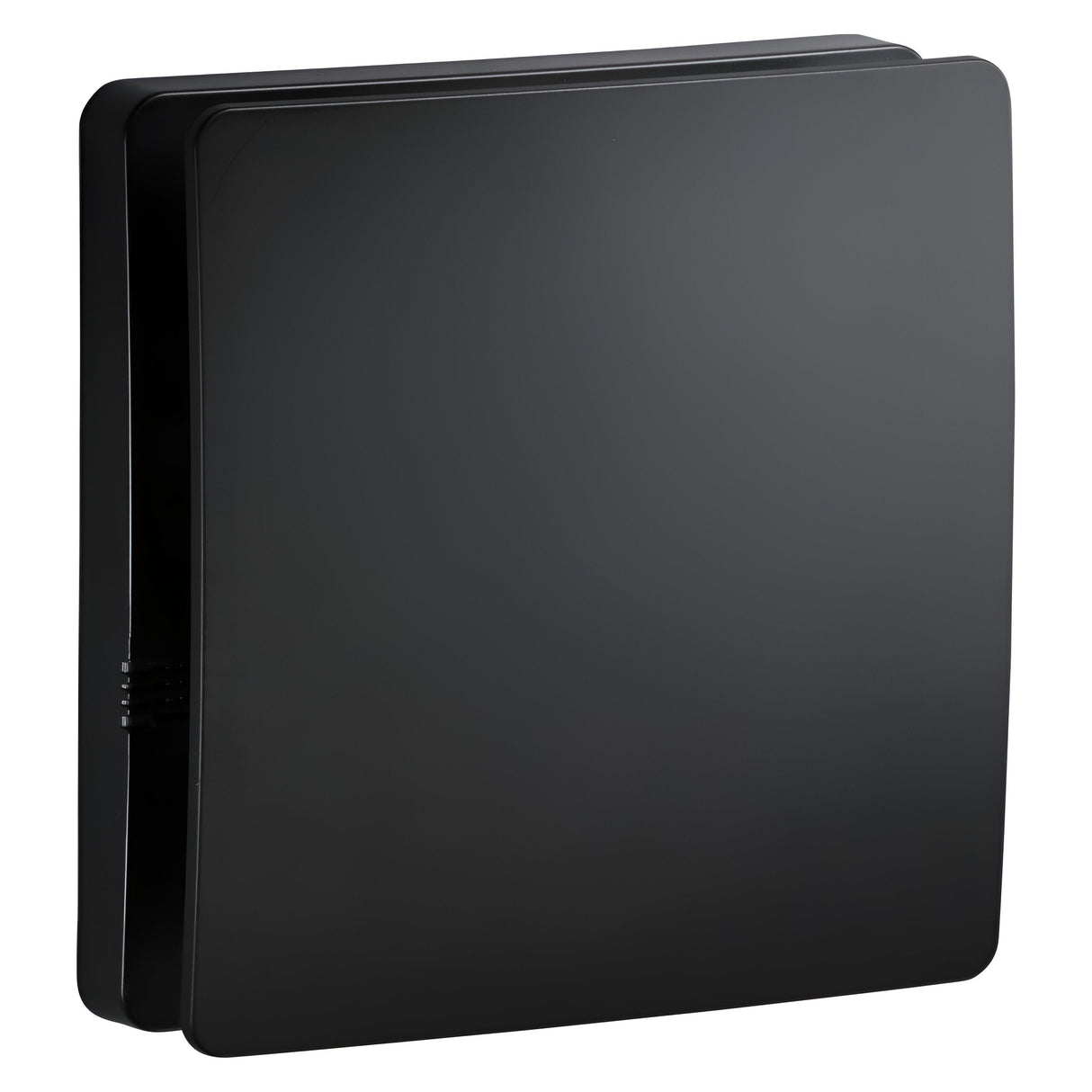

100mm/4 inch Extractor Fan With Overrun Timer - Black

£3999
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

With a low-profile design and quiet performance, this 100mm extractor fan in black is suited to any discreet ventilation setup. Ideal for bathrooms, ensuites, and utility areas, it offers silent operation at just 28.5dBA. The adjustable overrun timer (preset to 2 minutes) ensures thorough air extraction after use. It’s fitted with a built-in back draft shutter to reduce cold airflow and is suitable for short ducting runs in both wall and ceiling applications.

  • 230V 50Hz (9.7W)
  • 100mm / 4-inch fan size
  • IP45 rated – suitable for Zone 1
  • Adjustable overrun timer: 2–30 minutes (preset at 2 mins)
  • Built-in back draft kit
  • Extraction rate: 24 l/s (87m³/hr)
  • Noise level: 28.5dBA at 3m
  • Double insulated – no earth required
  • SPF: 0.404W/L/s
  • Complies with Building Regulations Part F & Part L
Specification
Height 157.6mm
Width 157.6mm
Depth 127.2mm
Projection 49.9mm
Recessed Depth 78.5mm
Cut-out Diameter 102mm
Construction ABS
Finish Black
IP Rating IP45
Class II
Primary Voltage 230V 50Hz
Earth Terminal No
Noise Levels 28.5 - 30dB @ 3m
Airflow Airflow: 24l/s [86.93m3/hr]
SFP 0.401W / (l/s)
Overrun Timer Overrun timer settings: 2-30mins (Preset: 2mins)
Warranty 3 Year Guarantee
