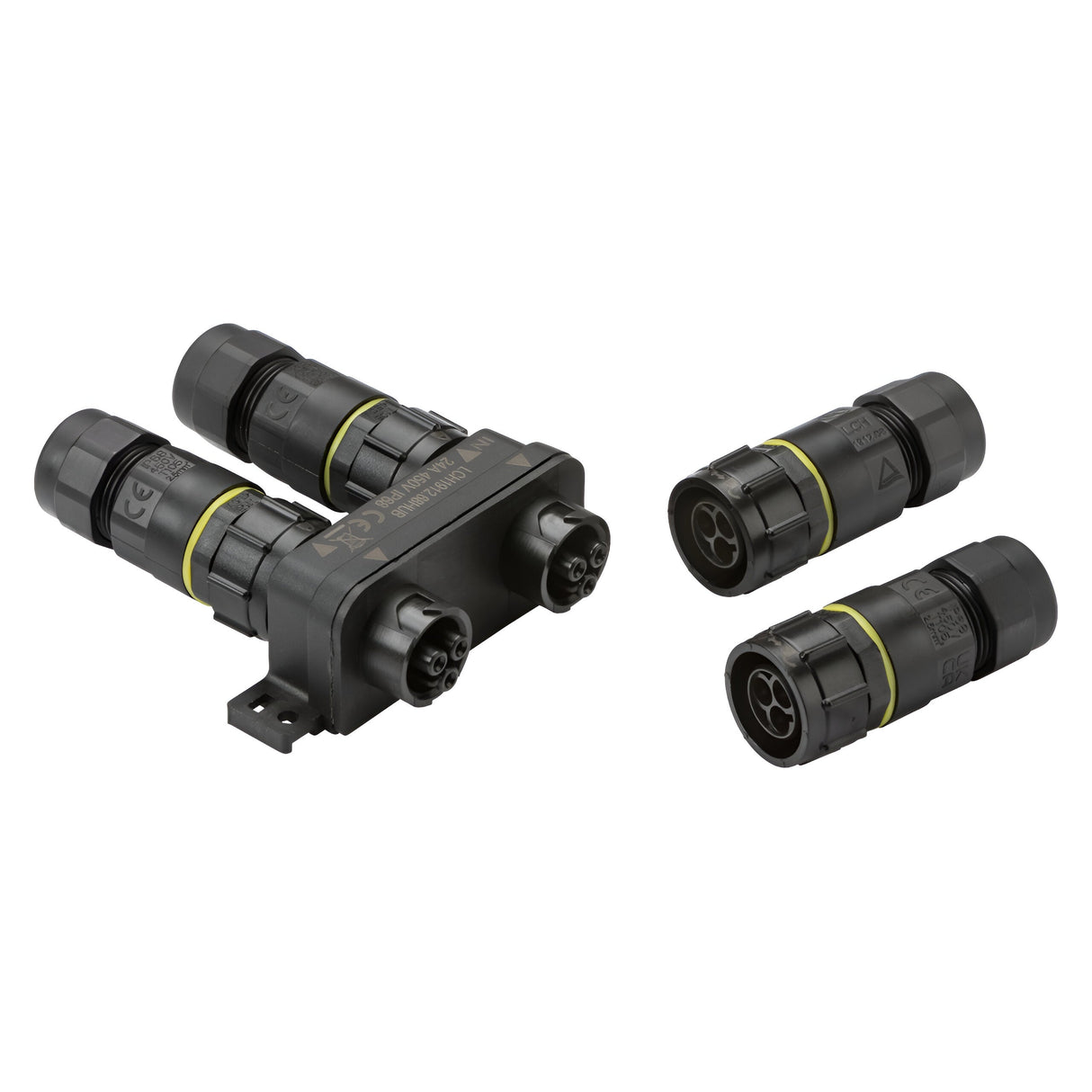

Weatherproof Power Hub IP68 1 Inlet To 3 Outlets Plug & Socket - Black

£4599
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

This mountable plug-and-play power hub offers a secure plug and socket-style connection with a twist-and-lock mechanism for fast and reliable assembly. Designed for easy installation, the hub comes pre-supplied with a set of sleeves and supports both rigid conductors and ferruled ends, allowing for direct push-in by hand. When using flexible conductors, the terminals can be accessed via a screwdriver press for safe insertion.

Engineered for durability, the unit is rated IP68 (at 5 bar), supporting 24A at 450V, and is built from PA66 V-0 to withstand temperatures up to 960°C. Silver-plated stainless-steel lever terminals ensure optimal conductivity. It accommodates cable diameters from 5mm to 14mm and is compatible with H07RNF 3G 0.75mm² to 2.5mm² cable types. Operating and storage temperatures range from -30°C to 85°C, with barometric pressure tolerance between 86–106kPa.

With a black PA66 finish and mountable design, this power hub is ideal for creating modular, weather-sealed wiring systems in outdoor or industrial environments where tool-free, secure electrical joins are essential.

Specification
Length 145.5mm
Width 90mm
Depth 32mm
Construction PA66 V-0
Finish Black
IP Rating IP68
Primary Voltage 230-450V
Warranty 2 Year Guarantee
Downloads

Product Specification Sheet
