Recess Mount HF Motion Sensor

£2999
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

Recess mounting HF sensor

  • 5.8GHz High Frequency sensor
  • 230V ~ 50Hz
  • Max Load: 1000W Incandescent / 100W LED
  • Detection angle: 360
  • Detection Range: 3m diameter @ 3m install height
  • Time setting: 30s - 30min
  • Lux setting: 5-1000 lux
  • Sensitivity setting: 1m - 3m
  • Operating Temperature: 0 - 45
  • Internal Use only (IP20)
  • Operational Modes: Auto / Short Pulse / Test / Manual Override
  • Require cut out of: 62mm
Specification
Diameter 90 mm
Length 132 mm
Height 25 mm
Width 29 mm
Projection 2 mm
Recessed Depth 35 mm
Cut-out Diameter 62 mm
Construction Polycarbonate
Finish White
Class II
IP Rating IP20
Primary Voltage 230V 50Hz
Warranty 2
Downloads

Product Specification Sheet

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

    Customer Reviews

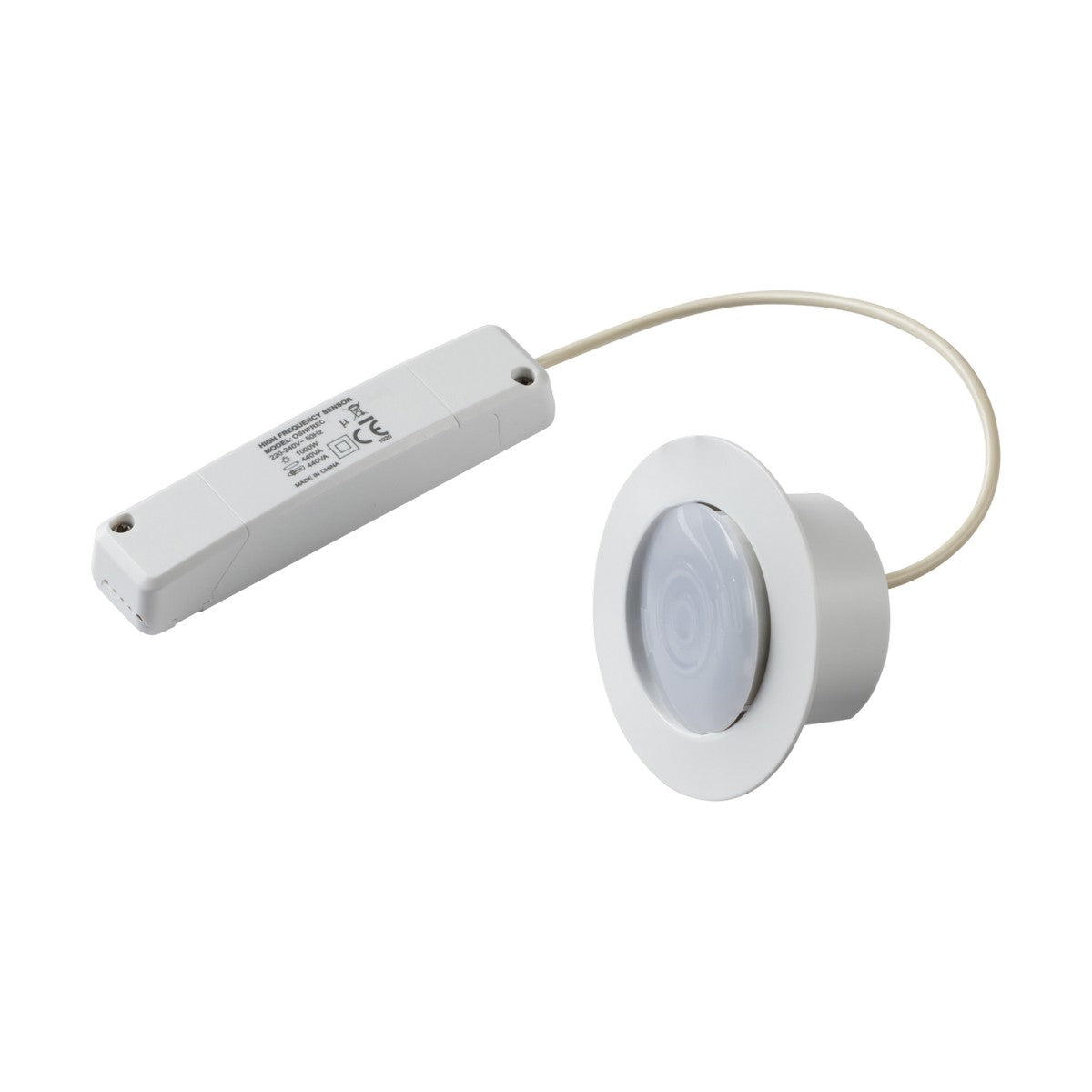

    The Recess Mount HF Motion Sensor is a white, ceiling-mounted device with a round base, designed for recess mounting. It connects via cable to a rectangular power control unit that operates at 230V 50Hz.
