Quadplexed SAT1/SAT2/TV/FM DAB Outlet Module 50 X 50mm - Grey

£899
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
30 Day Returns
Flexible payment options
Description

Fully screened Satellite, TV and FM/DAB aerial triplexed outlet with separate Sat 2 outlet. Ideal for Sky™ and Sky+™ applications with low loss, minimal ingress and negligible module cross talk with excellent matching and isolation.

  • Fully screened to EN 50083-2.
  • Easy cable connections and access.
  • Suitable for cables with 1mm conductor (PF100, H109F, QF100, etc.).
  • Min mounting depth 35mm.
  • Size: 50 x 50mm
Specification
Height 50 mm
Width 50 mm
Recessed Depth 31 mm
Min. Mounting Box Depth 35mm
Construction ABS
Finish Grey
IP Rating IP20
TV Connection Type Male
SAT Connection Type F-Type
FM/DAB Connection Type Female
Terminal Clamp & Screw Terminal
Warranty 1
Downloads

Product Specification Sheet

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You
    Rated 4.5 / 5
    Trustpilot Rating
    Based on 100 reviews

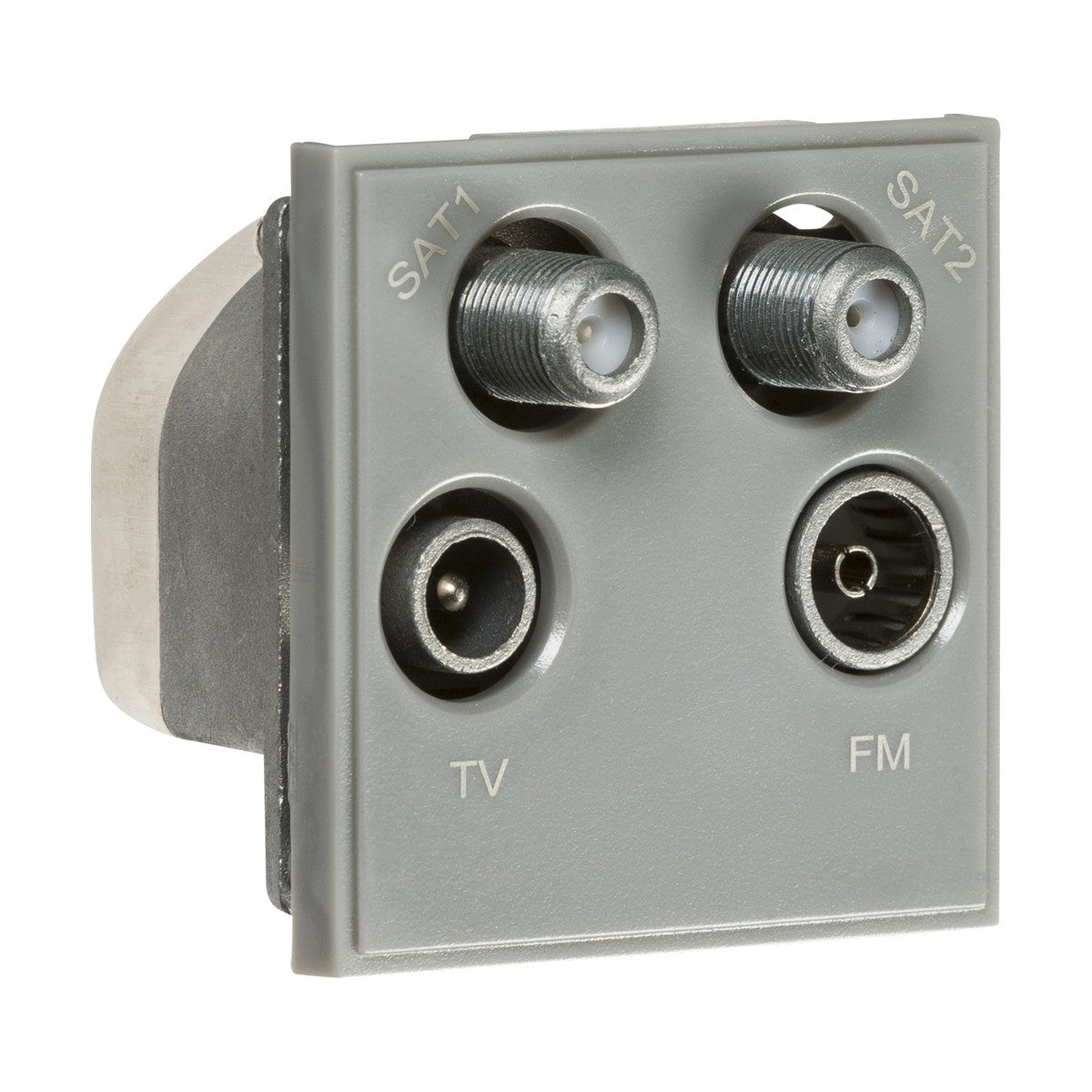

    The Quadplexed SAT1/SAT2/TV/FM DAB Outlet Module in grey, measuring 50 X 50mm, features a metallic wall plate with four connectors labeled SAT1, SAT2, TV, and FM. It is specifically designed for Sky applications and efficiently facilitates seamless connections for satellite outlets and TV aerials for television and radio use. The plate is subtly angled.
