QTX UMBRA-1200 Low Mist Generator

£51899
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Stage effect machine producing "dry ice" type low fog effects without the use of carbon dioxide or ice. New technology delivers a ground-hugging mist from standard fog fluid and water. Housed in a full flight case with castors for portability, the main unit has a removable fluid tank and easy access water reservoir with drain tap. the mist is delivered via a flexible duct and output funnel to allow the user to direct the effect onto a specific area of the stage. Operated by the onboard digital control panel, which can be detached as a wired remote or via DMX512. Designed to provide a dramatic low flowing mist scene for stages, theatres and themed events.

  • Supplied in a full flight case with lockable castors
  • Operates from standard fog fluid and water
  • Professional ground level mist effect
  • Requires no ice or carbon dioxide
  • Removable digital control panel for remote control
Specification
Power supply 220-240Vac, 50Hz (IEC)
Dimensions 590 x 510 x 410mm (in flight case)
Weight 25kg (in flight case)
Connection DMX in & out (3-pin XLR)
Power consumption 1200W
Fluid capacity 0.8 litre (fog fluid)
Fog output 9000 Cu Ft (255m³) /min
DMX channels 2
Warm up time 3-5 minutes
Fuse F8AL
Remote control connection 7-pin XLR
Downloads

Product Manual

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

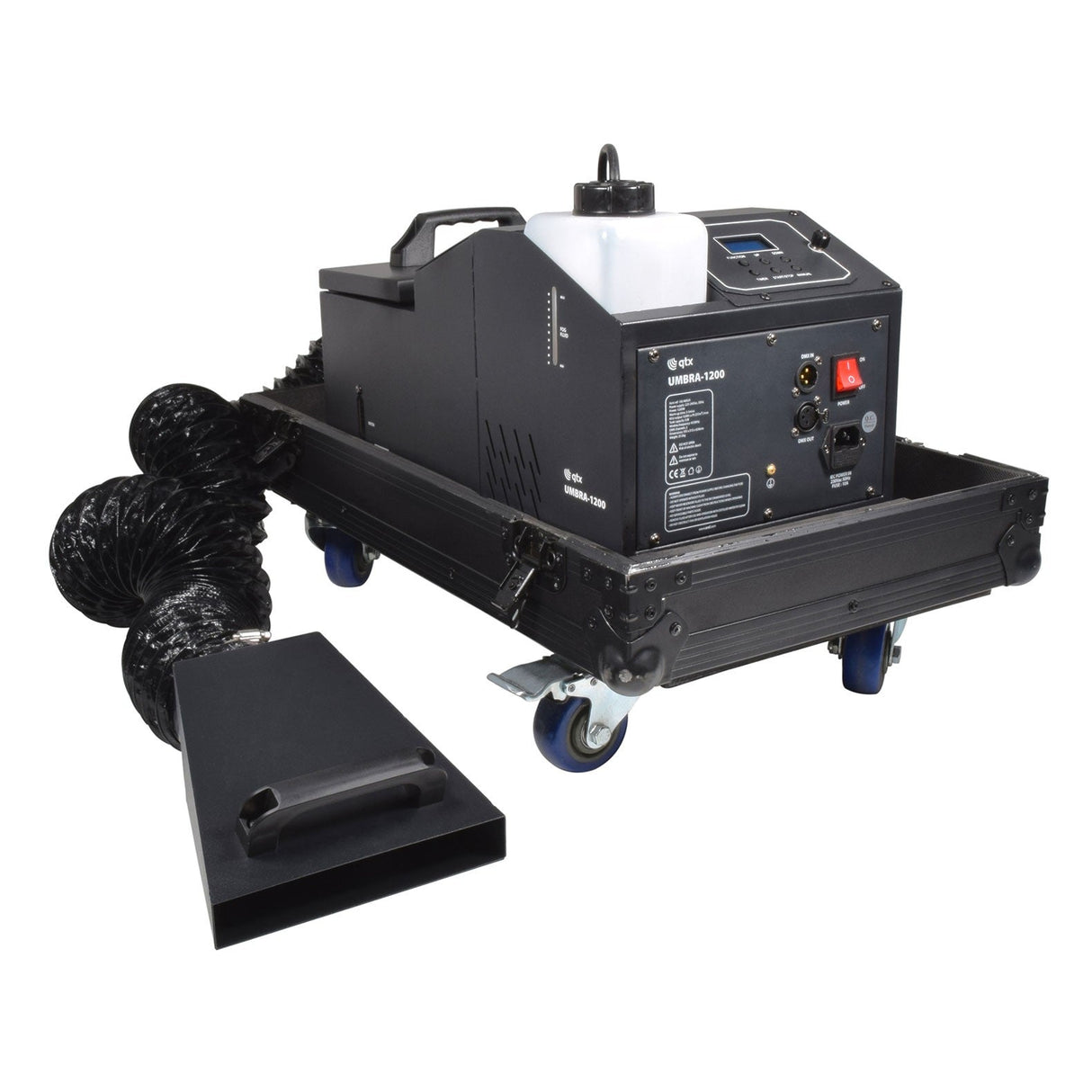

    The QTX UMBRA-1200 Low Mist Generator, featuring a black housing and built-in control panel, is mounted on a wheeled platform. It includes a removable fluid tank and an attached flexible hose with a nozzle to produce low fog effects, ideal for creating ground-hugging mist to enhance any stage performance.
