Mercury Economy Cat6 U/UTP Network Cable, Black (305m)

£6499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Cat6 solid conductor twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an indoor environment.

  • Solid copper clad aluminium conductor
  • Supplied in an easy-pull dispensing box
  • Passes Cat6 fluke test 100m at 250MHz
  • Complies to TIA/EIA-568 Cat6 standard
Specification
Conductor Solid CCA
Strands 8 x 1/0.57mmØ ±2%
CSA 8 x 0.26mm²
Cable : diameter 5.5mmØ
Insulation HDPE 0.23mm thickness
Sheath PVC 0.5mm thickness
Impedance 100 Ohms (±15)
DC resistance @ 20°C <35 Ohms/100mt
Return loss >20dB @ 100m (from 1Mhz to 100Mhz)
NEXT >40dB @ 100m
PSNEXT >38dB @ 100m
Cable colour Grey
Length 305m
Weight 8.5kg

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

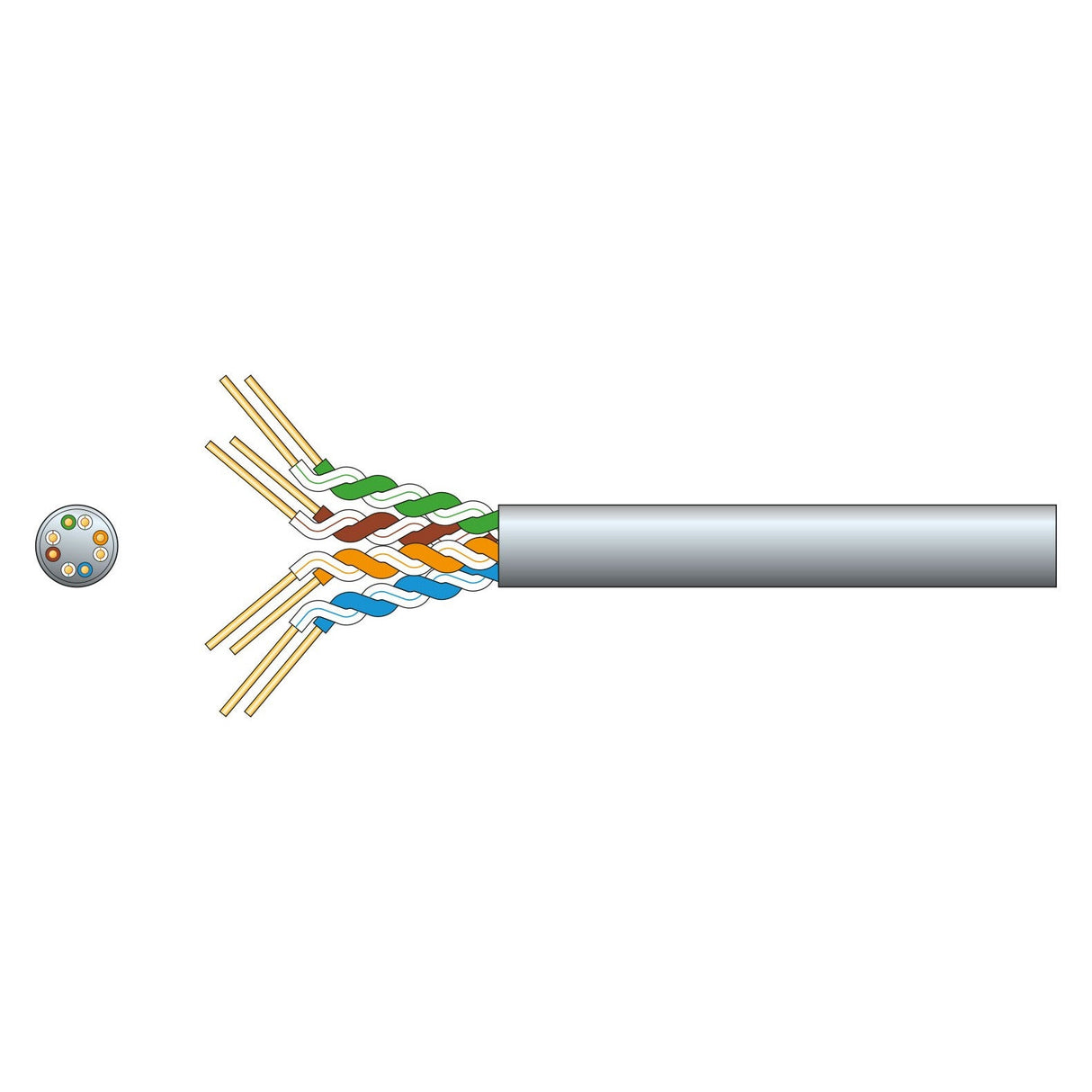

    Illustration displaying a cross-section of a multi-colored twisted pair Mercury Economy Cat6 U/UTP Network Cable, Black (305m) with individual wires exposed, suitable for Gigabit Ethernet. Next to it is another circular cross-section highlighting the internal wire arrangement and solid conductor structure of the Cat6 cable.
