Mercury Economy Cat6 Outdoor U/UTP Network Cable, Black (305m)

£7199
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Cat6 solid conductor twisted pair data cable with PE sheath supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoor environment.

  • Solid copper clad aluminium conductor
  • PE sheath with UV resistant properties ideal for outdoor installations
  • Supplied in an easy-pull dispensing box
  • Passes Cat6 fluke test 100m at 250MHz
  • Complies to TIA/EIA-568 Cat6 standard
Specification
Conductor Solid CCA
Strands 8 x 1/0.57mmØ ±2%
CSA 8 x 0.26mm²
Cable : diameter 6mmØ
Insulation HDPE 0.23mm thickness
Sheath PE 0.5mm thickness
Impedance 100 Ohms (±15)
DC resistance @ 20°C <35 Ohms/100m
Return loss >20dB @ 100m (from 1Mhz to 100Mhz)
NEXT >40dB @ 100m
PSNEXT >38dB @ 100m
Cable colour Black
Length 305m
Weight 7kg

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

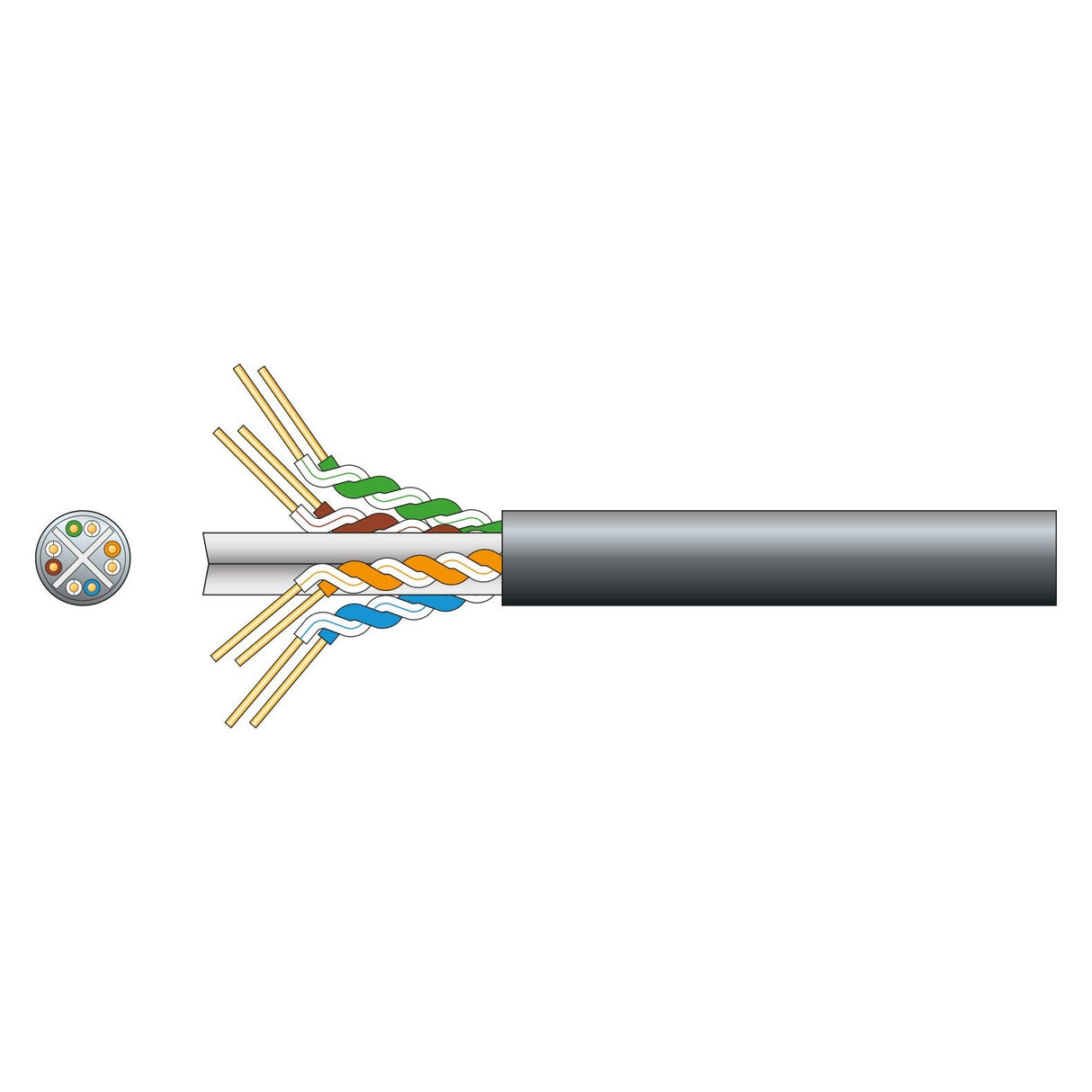

    Illustration of a cut-open Mercury Economy Cat6 Outdoor U/UTP Network Cable in black, showcasing twisted pairs of wires in blue, green, orange, and brown. A smaller cross-section view on the left highlights the wire arrangement designed for Gigabit Ethernet and ideal for outdoor installations over 305 meters.
