Mercury Economy Cat5e U/UTP Network Cable, Grey (305m)

£5499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Solid conductor twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. Suitable for high speed data transmission such as Gigabit Ethernet applications.

  • Passes Cat5e fluke test 100m at 100MHz
  • Solid copper clad aluminium conductor
  • Supplied in an easy-pull dispensing box
Specification
Conductor Solid CCA
Strands 8 x 1/0.51mmØ ±2%
CSA 8 x 0.204mm²
Cable : diameter 5mmØ
Insulation HDPE 0.19mm thickness
Sheath PVC 0.5mm thickness
Impedance 100 Ohms (±15)
DC resistance @ 20°C <35 Ohms/100mt
Return loss >20dB @ 100m
NEXT >40dB @ 100m
PSNEXT >38dB @ 100m
Cable colour Grey
Length 305m
Weight 6kg

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

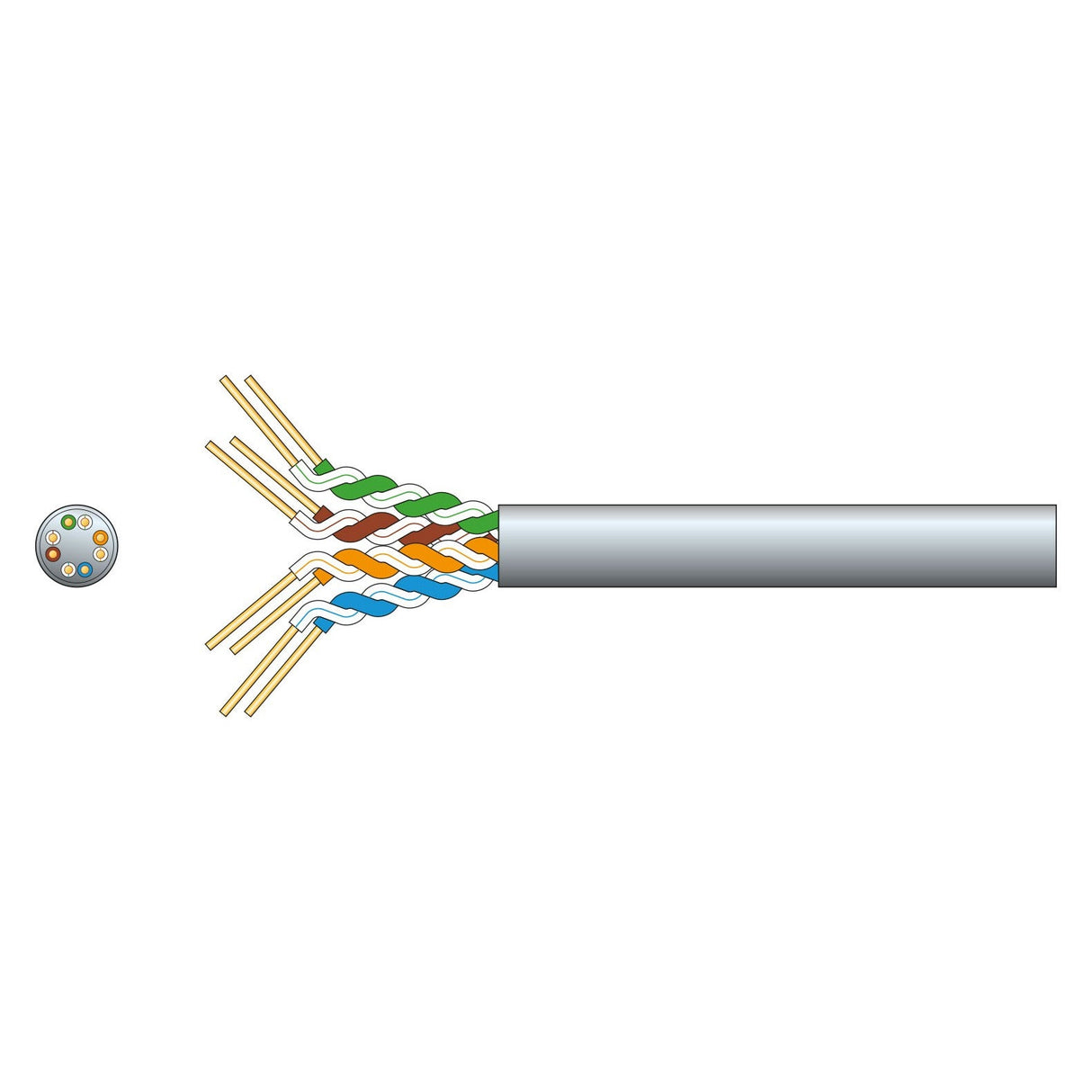

    Illustration of a cut-open Mercury Economy Cat5e U/UTP Network Cable, Grey (305m), displaying the interior with four twisted pairs of colored wires. A cross-section view is provided, emphasizing the configuration of the wires within the cable sheath for high-speed data transmission such as Gigabit Ethernet.
