Mercury Eco RG6 Air Spaced PE Coaxial Cable With Aluminum Braid, White (100m)

£2199
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Only a few left in stock!
14 Day Returns
Flexible payment options

75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, air spaced polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.

  • Solid CCS conductor
  • Air spaced PE dielectric
  • Binded aluminium screen
  • Aluminium braid
  • Supplied in 100m reel with metric cut markers
Conductor diameter 1mmØ
CSA 0.79mm²
Dielectric 4.6mmØ air spaced PE
Screen Aluminium / PET foil
Braid 48 x 0.12mmØ
Cable : diameter 6.6mmØ
Impedance 75 Ohms
Capacitance 54pF/m
Velocity factor 83%
Length 100m
Weight 4.1kg
Return loss 5-400MHz 24dB min./100m
Return loss 450-1000MHz 20dB min./100m
Return loss 1000-2150MHz 16dB min./100m
Attenuation @ 5MHz 2.9 dB max./100m
Attenuation @ 50MHz 5.2 dB max./100m
Attenuation @ 100MHz 6.9 dB max./100m
Attenuation @ 200MHz 10.2 dB max./100m
Attenuation @ 400MHz 14.9 dB max./100m
Attenuation @ 860MHz 20.3 dB max./100m
Attenuation @ 1000MHz 22.5 dB max./100m
Attenuation @ 1750MHz 29.8 dB max./100m
Attenuation @ 2150MHz 33.6 dB max./100m
Conductor material Solid CCS
Braid material Aluminium
Colour White
Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You
    Rated 4.5 / 5
    Trustpilot Rating
    Based on 100 reviews

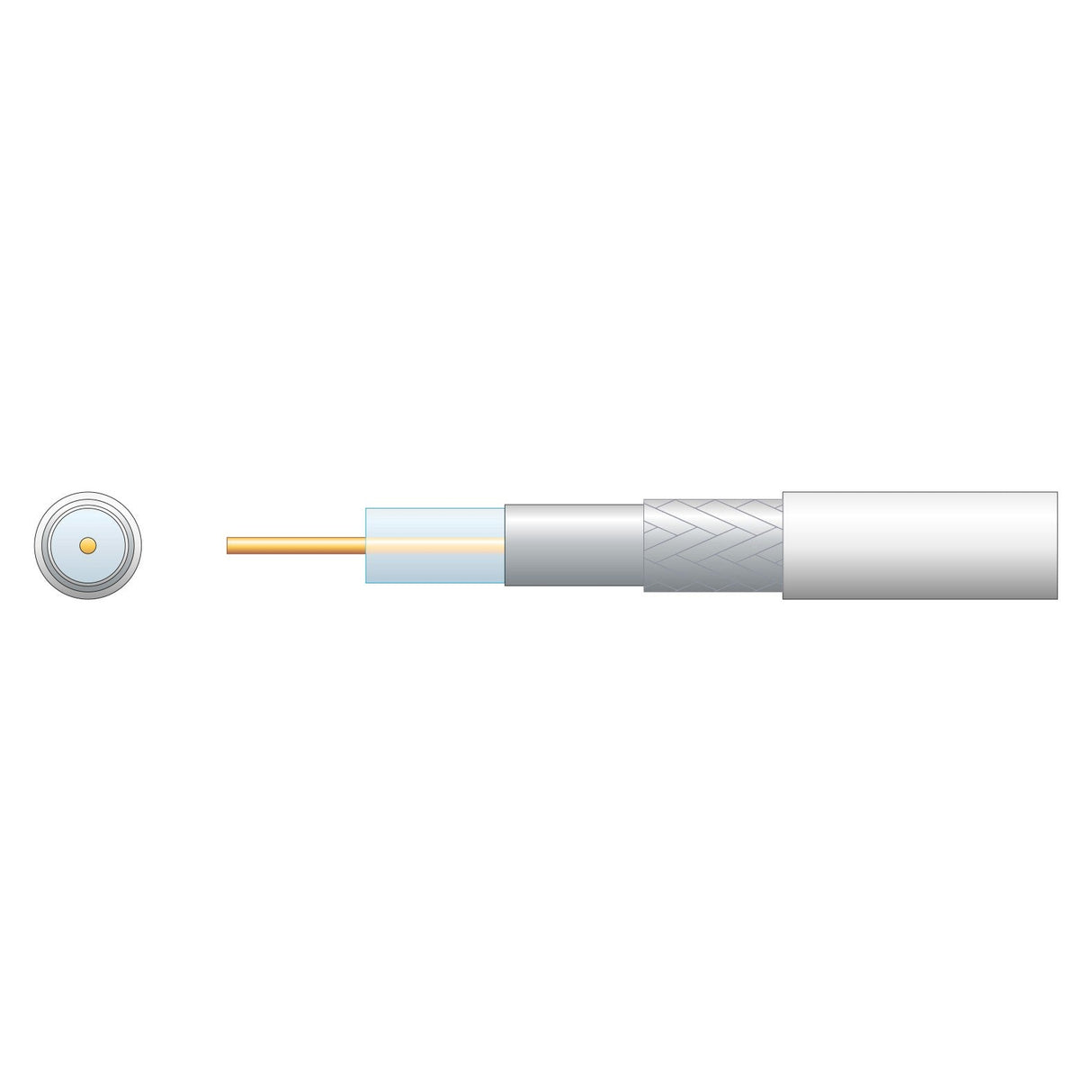

    Diagram illustrating a cross-section of the Mercury Eco RG6 Air Spaced PE Coaxial Cable with Aluminum Braid, White (100m). From left to right: the circular front view of the cable, central copper conductor, dielectric insulator, aluminum braid shield, and outer protective sheath—all essential for reliable digital signal transmission depicted in grayscale.
