Mercury Cat6a U/FTP Outdoor Network Cable, Black (305m)

£17999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Mercury Cat6a U/FTP Outdoor Network Cable is designed for heavy-duty networking tasks requiring reliable high-speed data transfer in outdoor environments. Built with oxygen-free solid copper AWG23 conductors, this professional-grade cable supports 10Gbps Ethernet with bandwidths up to 500MHz, making it suitable for enterprise networks, outdoor access points, and security applications. Each twisted pair is individually foil-shielded (U/FTP), ensuring strong resistance to interference and maintaining consistent performance over long distances. Its LDPE sheath provides superior UV and weather protection, making it ideal for outdoor installations exposed to harsh conditions. Supplied on a sturdy 305m wooden reel and metre-marked for precision, this cable simplifies large-scale deployment. Fully compliant with Cat6a standards, it delivers long-term stability and high performance for demanding data networks.

Key Features:

  • Cat6a outdoor cable supporting 10Gbps speeds up to 500MHz
  • AWG23 oxygen-free copper conductors for reliability
  • U/FTP shielding reduces interference and improves stability
  • LDPE sheath with UV resistance for outdoor use
  • Supplied on a 305m wooden reel, metre-marked for easy installation
Specification
Conductor Solid OFC
Strands 8 x 1/0.560mmØ ±2%
Cable : diameter 7.3±0.5mm
Screen Aluminium/Mylar foil
Insulation PE 1.330±0.05mmØ
Sheath LDPE 0.55±0.05mm thickness
Capacitance <330pf/100m
DC resistance @ 20°C <9.38 Ohms/100m
Impedance (100 to 250MHz) 100±15 Ohms
Impedance (250 to 500MHz) 100±22 Ohms
Return loss >26.62dB
Attenuation <2.03dB
NEXT >87.2dB
PSNEXT >85.15dB
ELFEXT >88.77dB
PSELFEXT >86.74dB
Phase delay <450.79ns
Colour Black
Length 305m
Weight 17.4kg

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

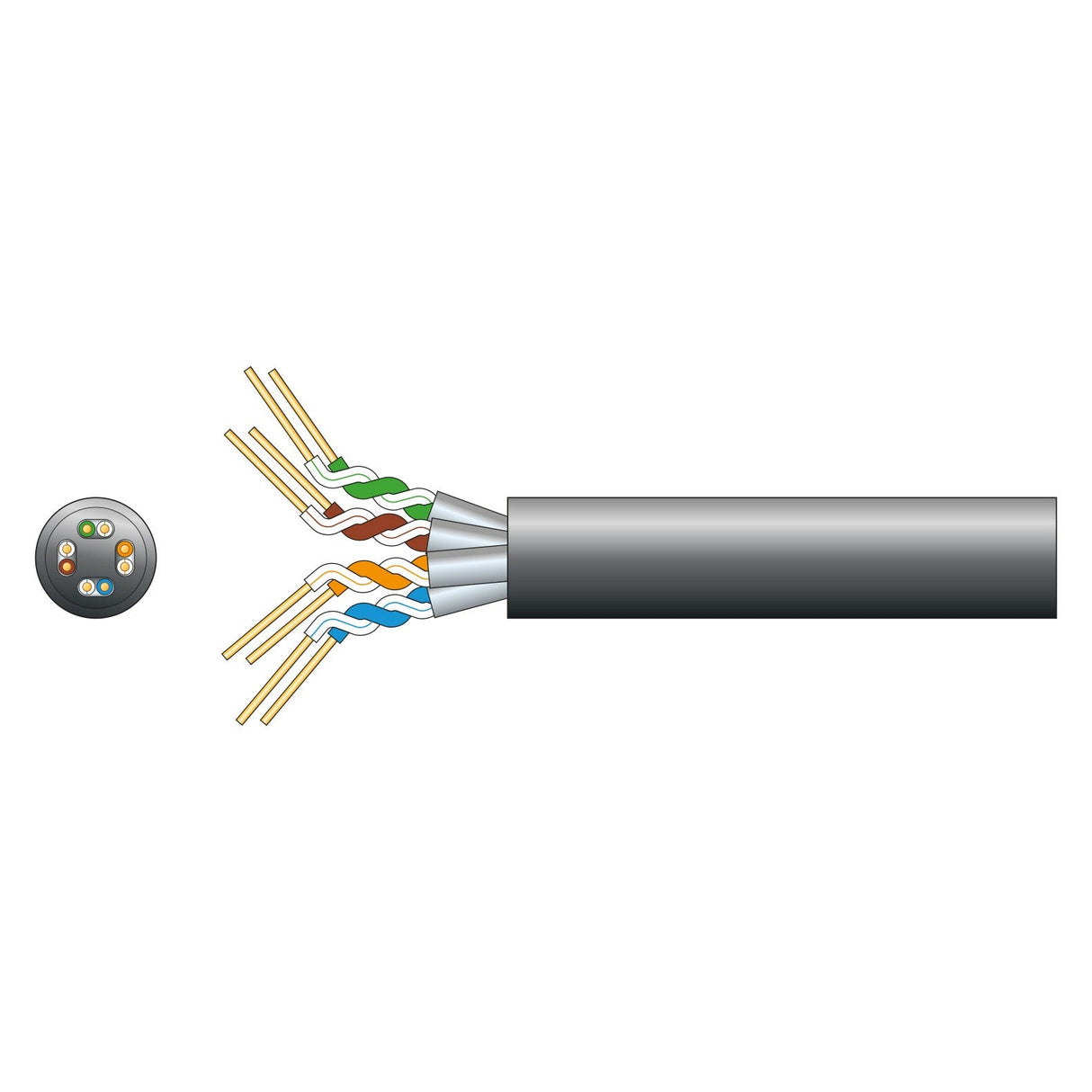

    Diagram of the Mercury Cat6a U/FTP Outdoor Network Cable, Black (305m), showing a black Ethernet cable with four twisted colored wire pairs and a cross-section revealing its oxygen-free copper arrangement.
