Mercury Cat6a U/FTP Network Cable, Grey (305m)

£18299
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Cat6a oxygen free copper twisted pair data cable with PVC sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

  • AWG 23 oxygen free solid copper conductor
  • Supplied on a sturdy wooden drum reel
  • Passes Cat6a fluke test 100m at 500MHz
  • Complies to TIA/EIA-568 Cat6a standard
Specification
Conductor Solid OFC
Strands 8 x 1/0.560mmØ ±2%
Cable : diameter 7.3±0.5mm
Screen Aluminium/Mylar foil
Insulation PE 1.330±0.05mmØ
Sheath PVC 0.55±0.05mm thickness
DC resistance @ 20°C <9.38 Ohms/100m
Impedance (100 to 250MHz) 100±15 Ohms
Impedance (250 to 500MHz) 100±22 Ohms
Return loss >25.61dB
Attenuation <2.51dB
NEXT >103.94dB
PSNEXT >102dB
ELFEXT >110.68dB
PSELFEXT >108.56dB
Phase delay <428.1ns
Colour Grey
Length 305m
Weight 17.4kg
Capacitance <330pf/100m

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

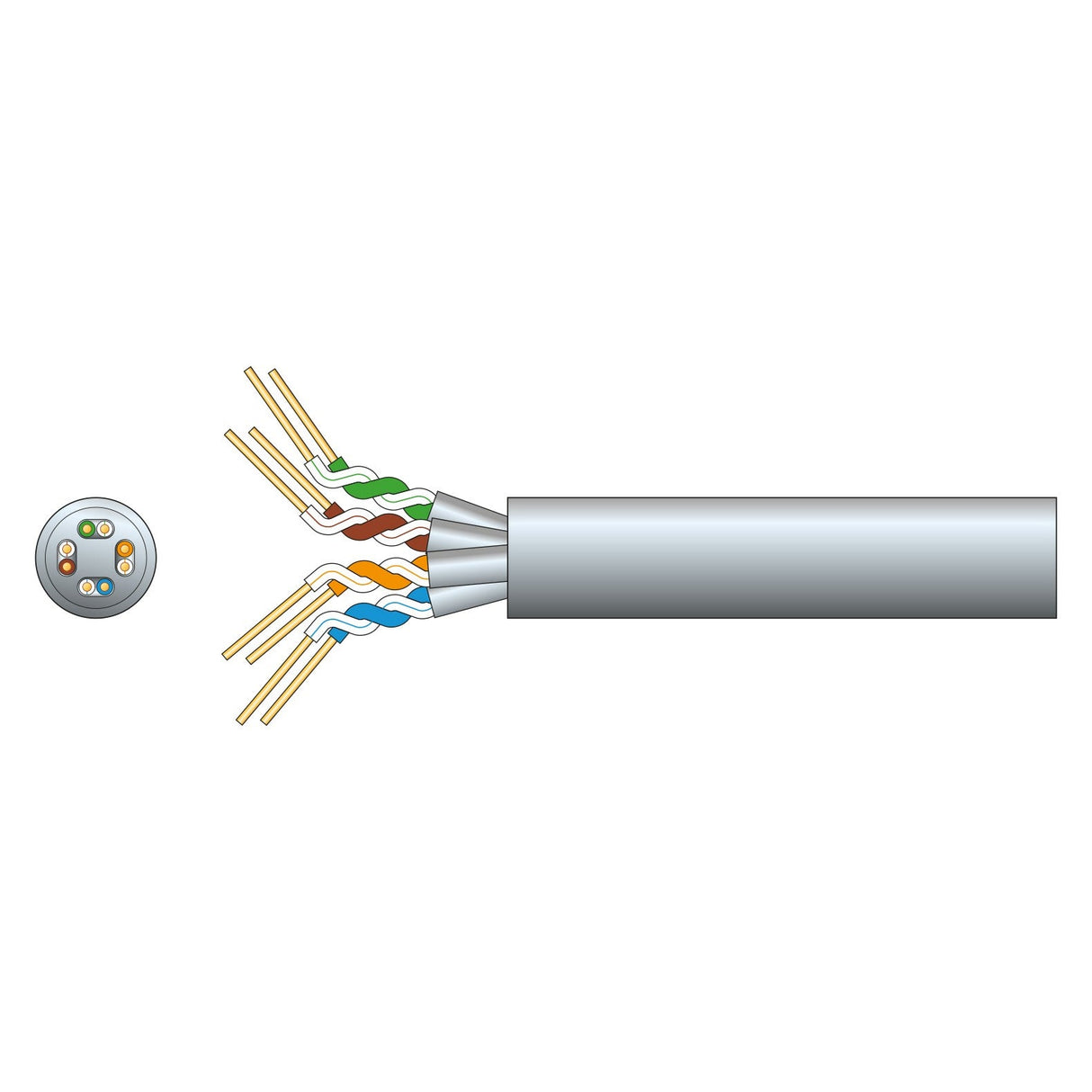

    Illustration of a cross-section of the Mercury Cat6a U/FTP Network Cable, Grey (305m). The image depicts the cable with several color-coded wires: orange, green, blue, and brown, some twisted pairs. Highlighting its internal structure designed for Gigabit Ethernet, the diagram emphasizes the use of oxygen-free copper for optimal performance.
