Mercury Cat6 U/UTP Network Cable, Grey (100m)

£4599
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Cat6 oxygen free copper twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

  • Oxygen free solid copper conductor
  • Supplied in an easy-pull dispensing box and marked at 1m intervals
  • Passes Cat6 fluke test 100m at 250MHz
  • Complies to TIA/EIA-568 Cat6 standard
  • HDBaseT Compliant
Specification
Strands 8 x 1/0.54mmØ ±2%
Conductor CSA 8 x 0.229mm²
Cable : diameter 5.8mmØ
Insulation HDPE 0.195mm thickness
Sheath PVC 0.55mm thickness
Capacitance 5.2nF/100m
DC resistance @ 20°C <9.5 ohms/100m
Impedance (100 to 250MHz) 100±15 ohms
Return loss >17.3dB @100m
Attenuation <32.8dB @100m
NEXT >38.3dB
PSNEXT >36.3dB
ELFEXT >19.8dB
PSELFEXT >16.8dB
Phase delay <570ns
Conductor Solid OFC
Cable colour Grey
Length 100±0.5m
Weight 4.3kg

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

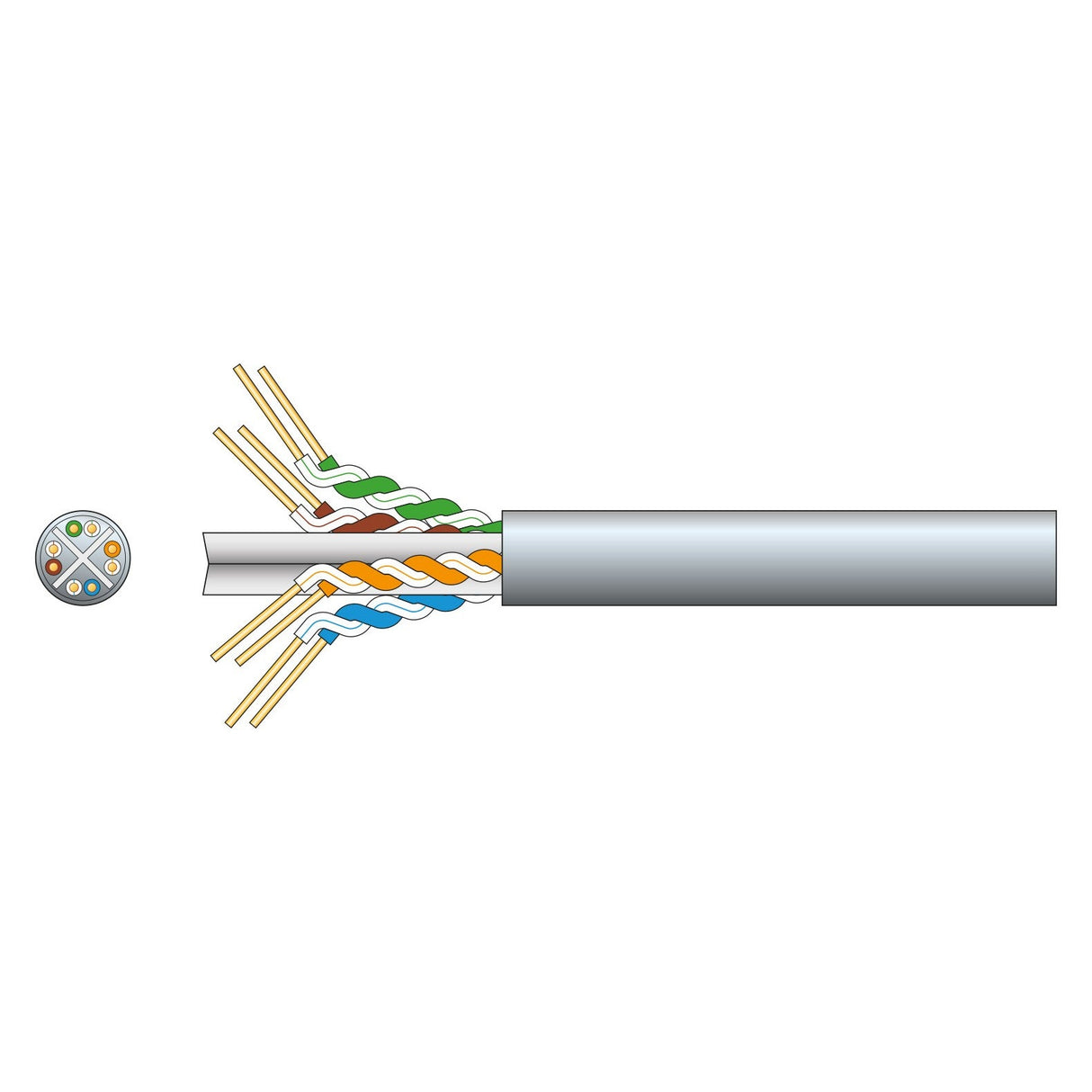

    Illustration of a Mercury Cat6 U/UTP Network Cable with four twisted pairs of wires in orange, green, blue, and brown. The cross-section view on the left reveals the internal wiring arrangement crafted for Gigabit Ethernet efficiency. The gray cable sheath enhances durability and performance.
