Mercury Cat6 F/UTP Network Cable, Grey (305m)

£18399
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Cat6 oxygen free copper twisted pair data cable with overall aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

  • AWG 23 oxygen free solid copper conductor
  • Supplied on a sturdy wooden drum reel
  • Passes Cat6 fluke test 100m at 250MHz
  • Complies to TIA/EIA-568 Cat6 standard
Specification
Strands 8 x 1/0.57mmØ ±2%
Conductor CSA 8 x 0.255mm²
Cable : diameter 7.4mmØ
Insulation HDPE 0.275mm thickness
Sheath PVC 0.6mm thickness
Capacitance 5.5nF/100m
DC resistance @ 20°C <9.5 ohms/100m
Impedance (100 to 250MHz) 100±15 ohms
Return loss >17.3dB @100m
Attenuation <32.8dB @100m
NEXT >38.3dB
PSNEXT >36.3dB
ELFEXT >20dB
PSELFEXT >17dB
Phase delay <570ns
Length 305m
Weight 16.5kg
Screen material Mylar + Aluminium/Mylar + Drain wire
Conductor Solid OFC
Cable colour Grey

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

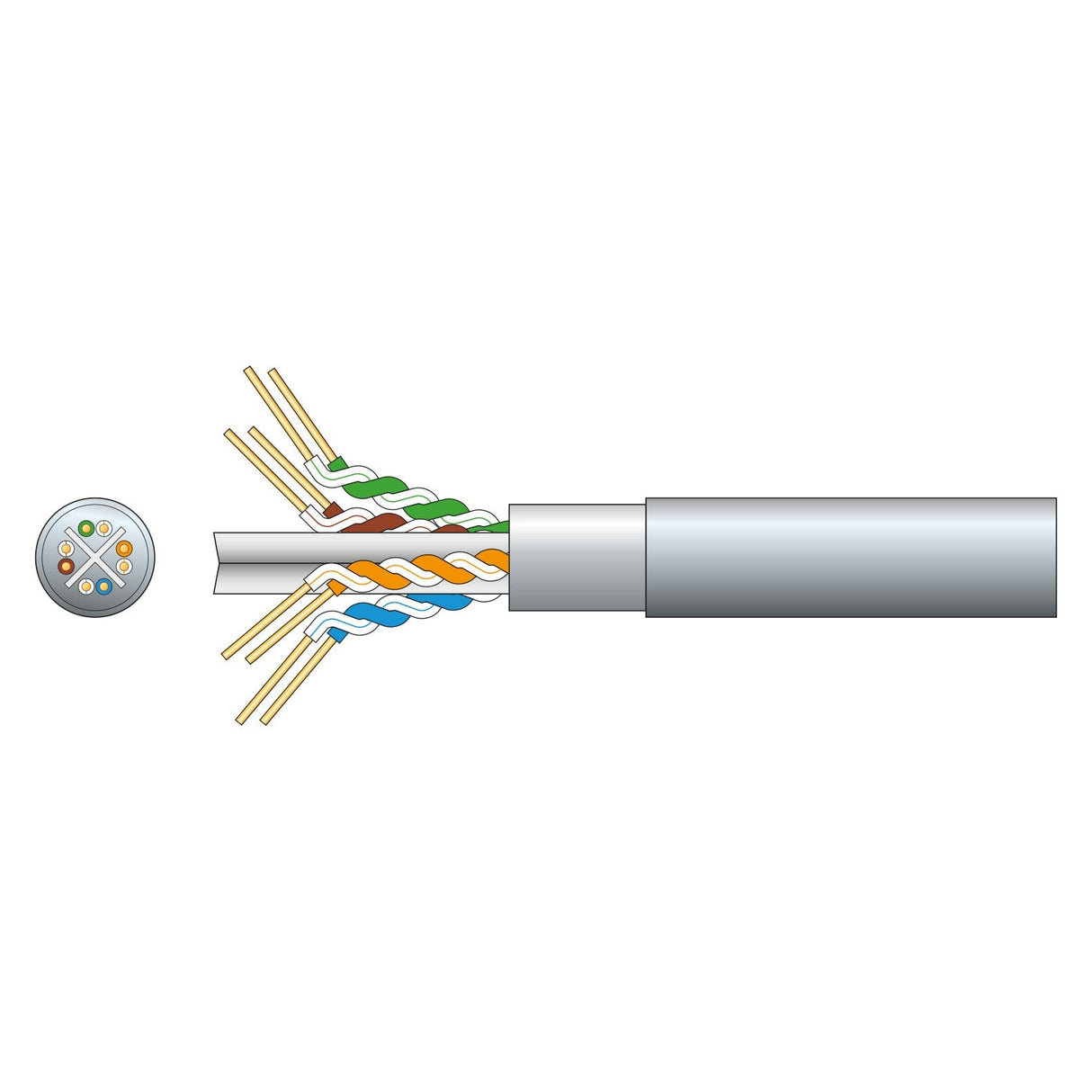

    Representation of the Mercury Cat6 F/UTP Network Cable cross-section and side view. The cross-section shows four twisted pairs of color-coded wires constructed from oxygen-free copper within a protective sheath, while the side view illustrates the complete cable, which supports Gigabit Ethernet with exposed wires at the end.
