Mercury Cat5e U/UTP Outdoor P/Box, Black (305m)

£10599
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

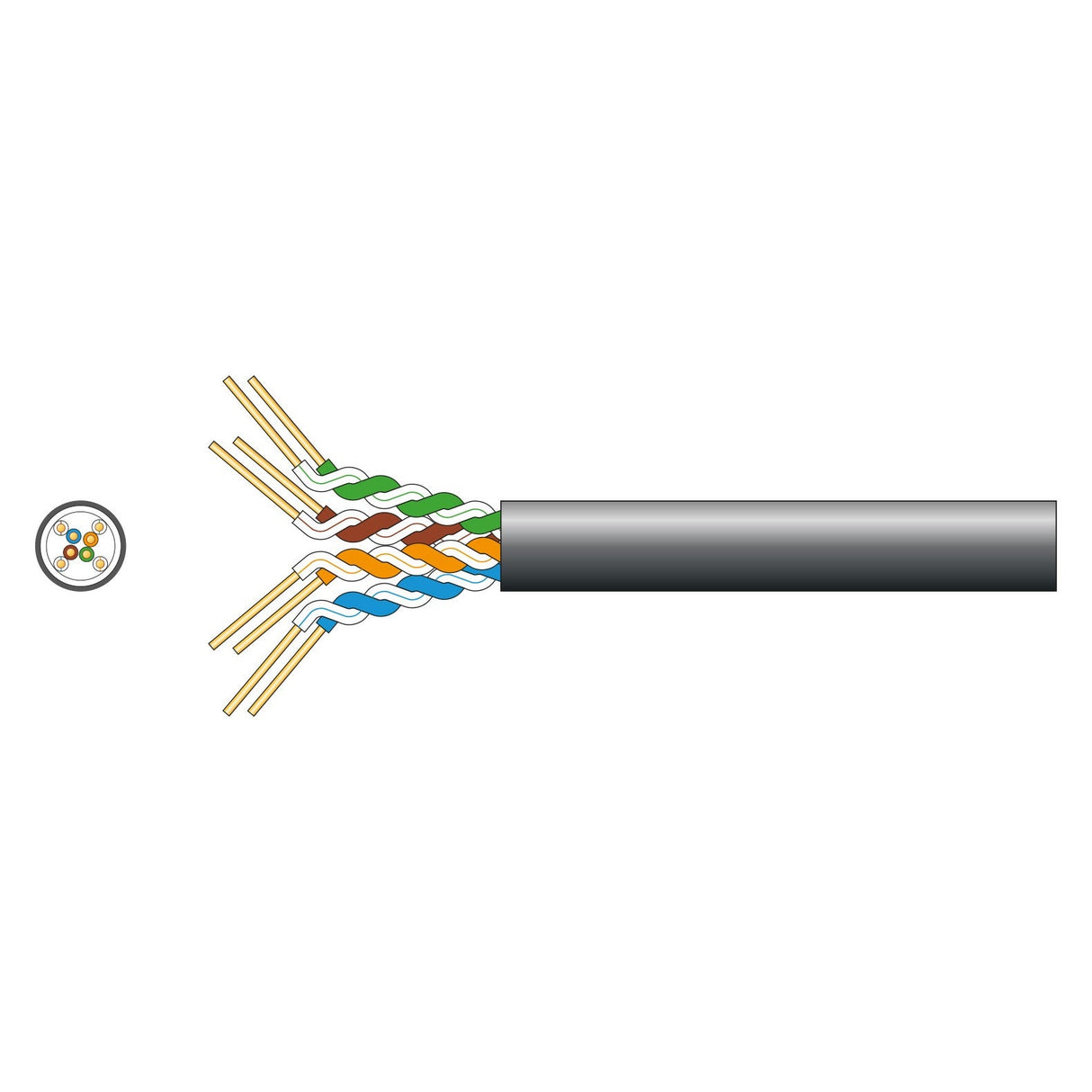

Cat5e oxygen free copper 4x twisted pair data cable with LDPE sheath. Supplied in dispensing box and marked at 1 metre intervals, this cable is designed for high speed data transmission such as Gigabit Ethernet applications.

  • LDPE sheath and UV resistant properties make this cable ideal for outdoor installations
  • AWG 24 oxygen free solid copper conductor
  • Supplied in an easy-pull dispensing box and marked at 1m intervals
  • Complies to TIA/EIA-568-C.2 Cat5e standard
Specification
Conductor Solid OFC
Strands 8 x 1/0.5mmØ ±2%
Conductor CSA 8 x 0.196mm² ±2%
Cable : diameter 5.2±0.4mmØ
Insulation HDPE 0.87±0.03mmØ
Sheath LDPE 0.55±0.05mm thickness
DC resistance @ 20°C <9.5 ohms/100m
Impedance (1 to 100MHz) 100±15 ohms
Return loss >20.1dB @ 100MHz
Attenuation >22dB @ 100MHz
NEXT >35.3dB @ 100MHz
Phase delay >537.60ns @ 100MHz
PSNEXT >32.3dB @ 100MHz
ELFEXT >23.8dB @ 100MHz
PSELFEXT >20.8dB @ 100MHz
Cable colour Black
Cable : length 305±1.5m
Weight 8.1Kg
