AV:Link HDMI V2.0 4K Splitter (1 Port In 2 Ports Out)

£2299
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The AV:Link HDMI V2.0 1x2 splitter allows one HDMI input to be shared across two displays with no signal loss. Supporting 4K Ultra HD (3840 x 2160 @ 60Hz), deep colour, HDCP 2.2, and multiple surround-sound formats, it ensures full compatibility with the latest TVs, consoles, and AV equipment. Its slim metal design and gold-plated connectors guarantee both durability and optimum performance. Compact and easy to install, the splitter is supplied with a UK power adaptor, making it an excellent choice for home cinema, gaming, and small commercial AV setups.

  • Simple connection and installation
  • Supports HDMI resolutions up to 3840 x 2160 @ 60Hz for compatibility with the latest 4K digital TV boxes and games consoles.
  • Gold plated HDMI connectors for optimum signal transfer
  • Supports DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD audio formats
  • Ideal for entertainment, hospitality and other commercial venues requiring multiple display feeds from a single HDMI source
  • UK power adaptor supplied
  • Sleek design with tough metal chassis
Specification
HDMI version v2.0b
Video resolution Up to 3840 x 2160 @ 60Hz
Display colours 8/10/12bit deep colour
Audio format DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
HDCP version 2.2
Max. bandwidth 600MHz
Transmission distance 35m max 4K @ 30Hz and FHD or 10m max 4K @ 60Hz
Operating temperature range -15°C to +55°C
Max. baud rate 18Gbps
Output connections 2x HDMI
Dimensions 128 x 53 x 23.5mm
Weight 139g
Max. working current 450mA
Power supply Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/1A
Downloads

Product Manual

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

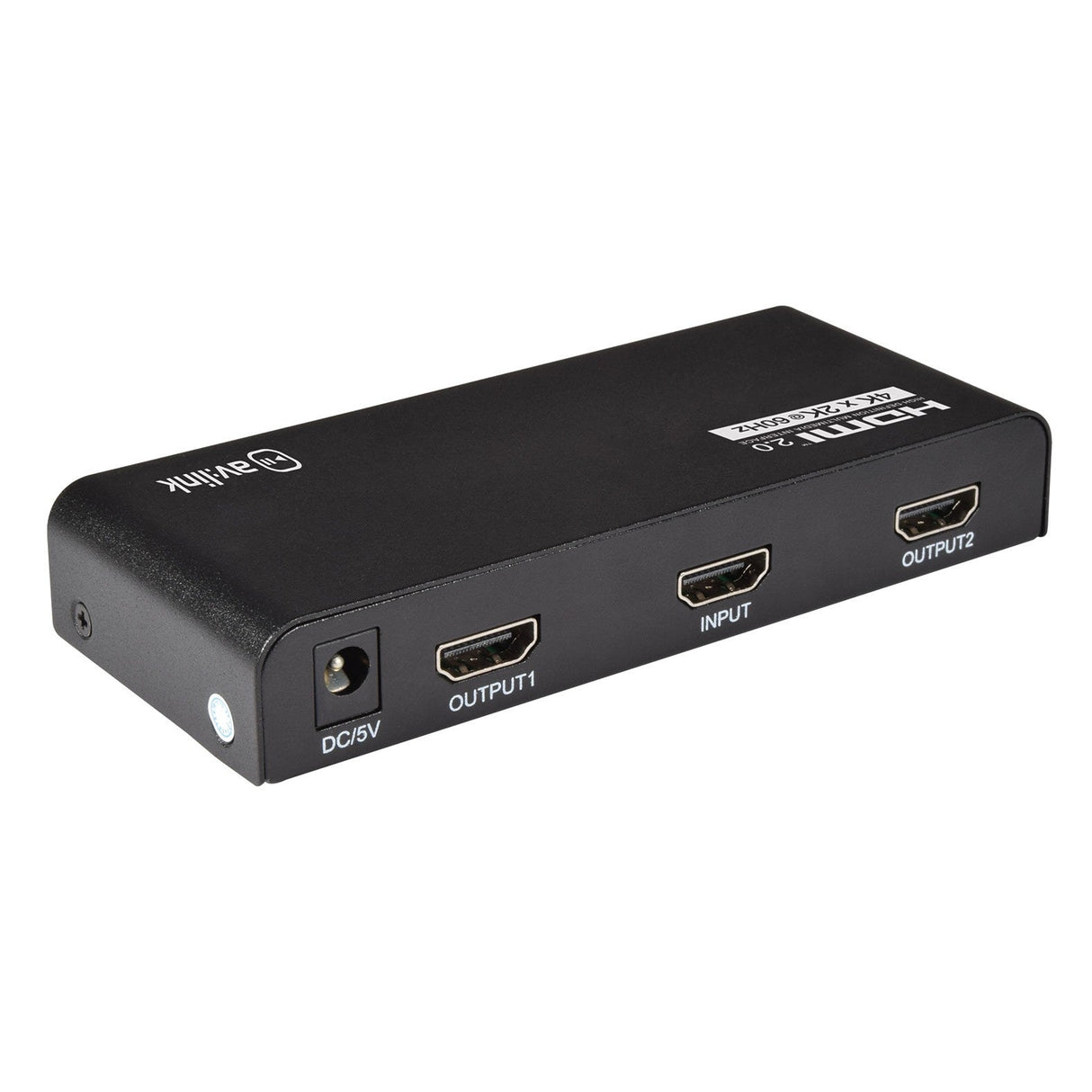

    The AV:Link HDMI V2.0 4K Splitter, a black device with DC/5V power input, features three ports labeled as Output 1, Input, and Output 2. It supports HDMI resolutions up to 3840 x 2160 at 60Hz for multiple display setups and prominently displays the AV:Link branding and model information on its top surface.
